Q.1/Q.3 HDMI socket with 90° connection anthracite velvet 3315436086

Name: Q.1/Q.3 HDMI socket with 90° connection anthracite velvet
Brand: BERKER
SKU: MEH049BERK
Price: 621.73 PLN
Availability: BackOrder

local index:

MEH049BERK

Catalog number:

3315436086

EAN code:

4011334379829

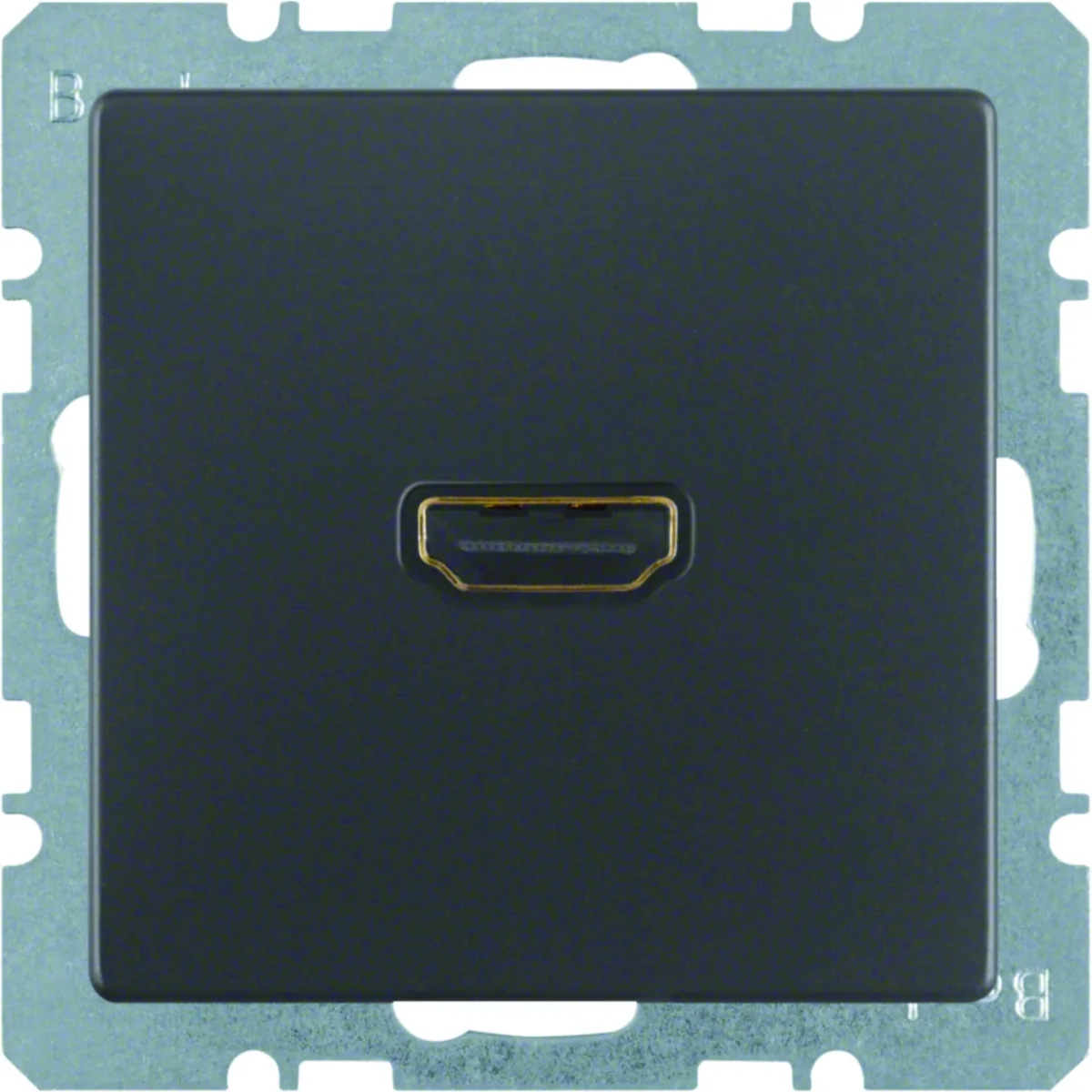

Q.1/Q.3 HDMI socket with 90° connection anthracite velvet

Click on the photo to enlarge

Manufacturer: BERKER

Number of sockets: 1

Color: Graphite

Shape: Square

See full description

Price:

621,73 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

HDMI socket from the Q.1/Q.3/Q.7 series, from the manufacturer Berker. Product part number is 3315436086.

FEATURES

With 90 angle connection°.
With straight output.
19-pin.
With HDMI™ type A.
Frequency range (vertical polarization): 50…85 Hz.
Resolution: up to 1920 x 1080 px.
Transmission speed : maximum 8.16 Gbit/s.
Gold-plated contacts.
Without spreaders, for screw connection.
For connecting digital devices to transmission of high definition audio and video signals, e.g. from a satellite receiver, DVD or BD player to an LCD or plasma screen.

Technical data

Number of sockets

1
Shape

Square
Installation

Flush-mounted
Family

Q.1 Q.3 Q.7
Level of security

IP20
Type

Flush-mounted
Surface protection

varnishing
Accurate color

Anthracite
For the frame system

Yes
PKWIU

27.33.13.0

Color

Graphite
Material

Plastic
Type

HDMI / VGA
Resolution [px]

1920x1080
Width [mm]

71
Height [mm]

71
Surface finish

velvet
Variant

HDMI
Exact material

Material Metal

Other technical data

Assembly arrangement

Basic element with central cover plate
Support ring

Yes
With hinged lid

No
Imprintable label

Without indication field
Material

Other
Halogen free

No
Surface finishing

Matt
RAL-number (similar)

7021
Type of fastening

Mounting with screw
Suitable for number of connectors

1
Shielded buses

Yes
Suitable for degree of protection (IP)

IP20
Device height

71 mm
Min. depth of built-in installation box

18 mm

Utilization

HDMI
With dust cover

No
Outlet direction

Straight
Mounting method

Flush-mounted
Material quality

Other
Surface protection

Lacquered
Colour

Anthracite
Transparent

No
With buses/couplings

Yes
With strain relief

No
Luster terminal

No
Device width

71 mm
Device depth

28.3 mm

Manufacturer details

Manufacturer

Berker GmbH & Co. KG.
Address

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta
Quantity	10 pcs.	40 pcs.	1280 pcs.
Weight (kg)	0,749	3,438	130,016
Width (m)	0,150	0,300	0,800
Length (m)	0,070	0,220	1,050
Depth (m)	0,290	0,400	1,200
