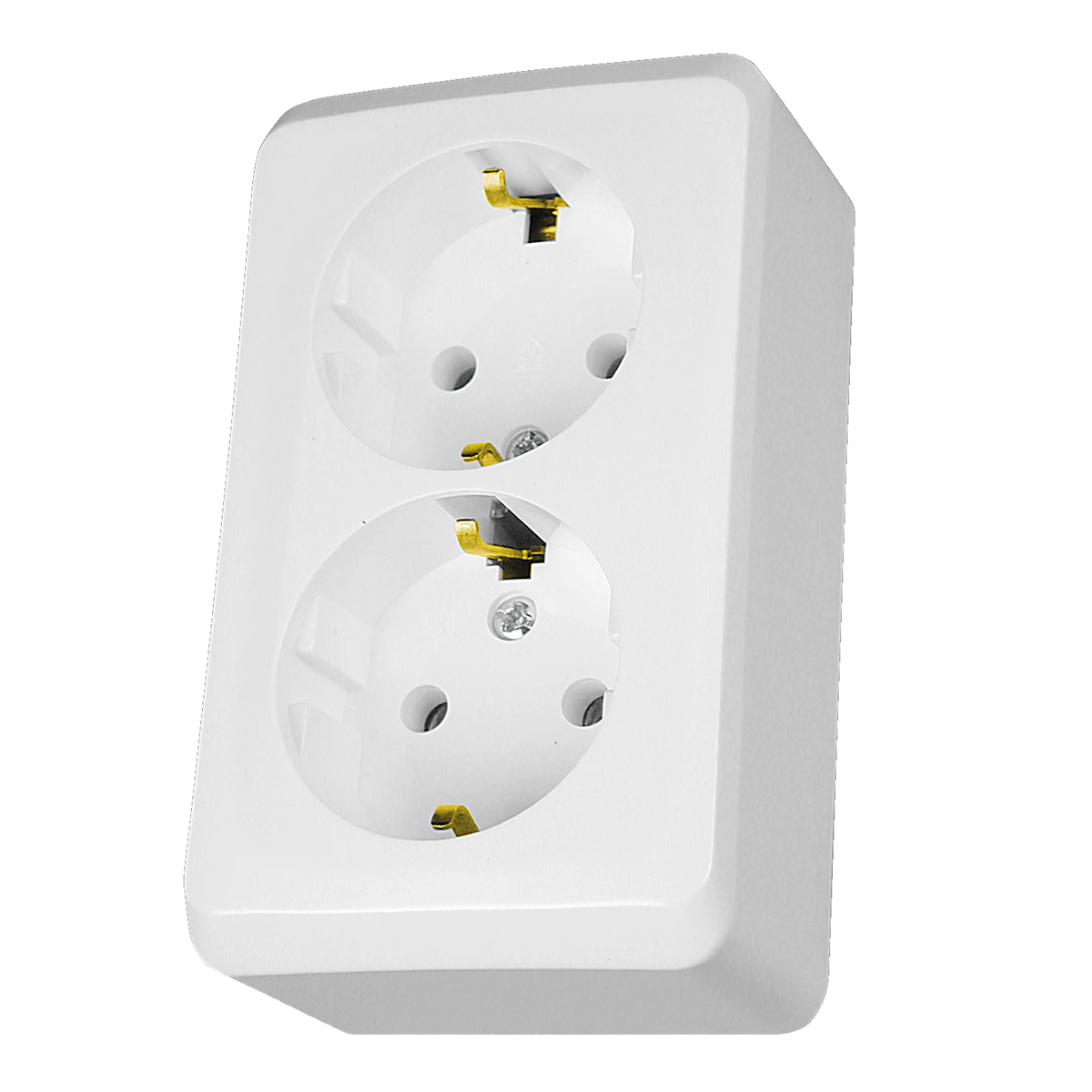

Prima SCHUKO double socket white WDE001048
local index:
MFE001SCHN
Catalog No:
WDE001048
EAN code:
5904093552628
Price:
4,56 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Surface-mounted electrical socket from the Prima series, from the manufacturer Schneider Electric. The product part number is WDE001048.
FEATURES
- Double .
- With SCHUKO grounding.
- Screw terminals.
- Color white .
- Rated current 16A.
- Rated voltage 230V.
- Degree of protection IP20.
- The length of the insulation stripped from the cable is 11 mm.
SERIES DESCRIPTION< /h3>
Prima is a series of surface-mounted installation accessories, distinguished by its compact size. Surface-mounted electrical socket characterizes the features of this unique series.
Technical data
-
Depth [mm]43.5
-
ColorWhite
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeSurface-mounted
-
Height [mm]101
-
BacklightNO
-
StandardEuropean
-
For the frame systemNO
-
PKWIU27.33.13.0
-
Number of sockets2
-
ShapeRectangular
-
InstallationSurface-mounted
-
Rated current [A]16
-
FamilyPRIMA
-
Width [mm]61
-
Groundschuko
-
Surface finishShiny
-
Terminal typeThreaded
-
On the DATA keyNO
-
Exact materialPA6
Other technical data
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Okrągły styk ochronnyNo
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of modules (module system)0
-
Number of phases1
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)9003
-
LockableNo
-
Insulated mountingNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with screw
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Impact strengthOther
-
Device height101 mm
-
Protective contactYes
-
Number of active contacts (round)0
-
With signal lampNo
-
Number of units1
-
Number of socket outlets switchable0
-
Connection typeScrewed terminal
-
With enhanced contact protectionNo
-
ColourWhite
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodSurface mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP20
-
Device width61 mm
-
Device depth43.5 mm
