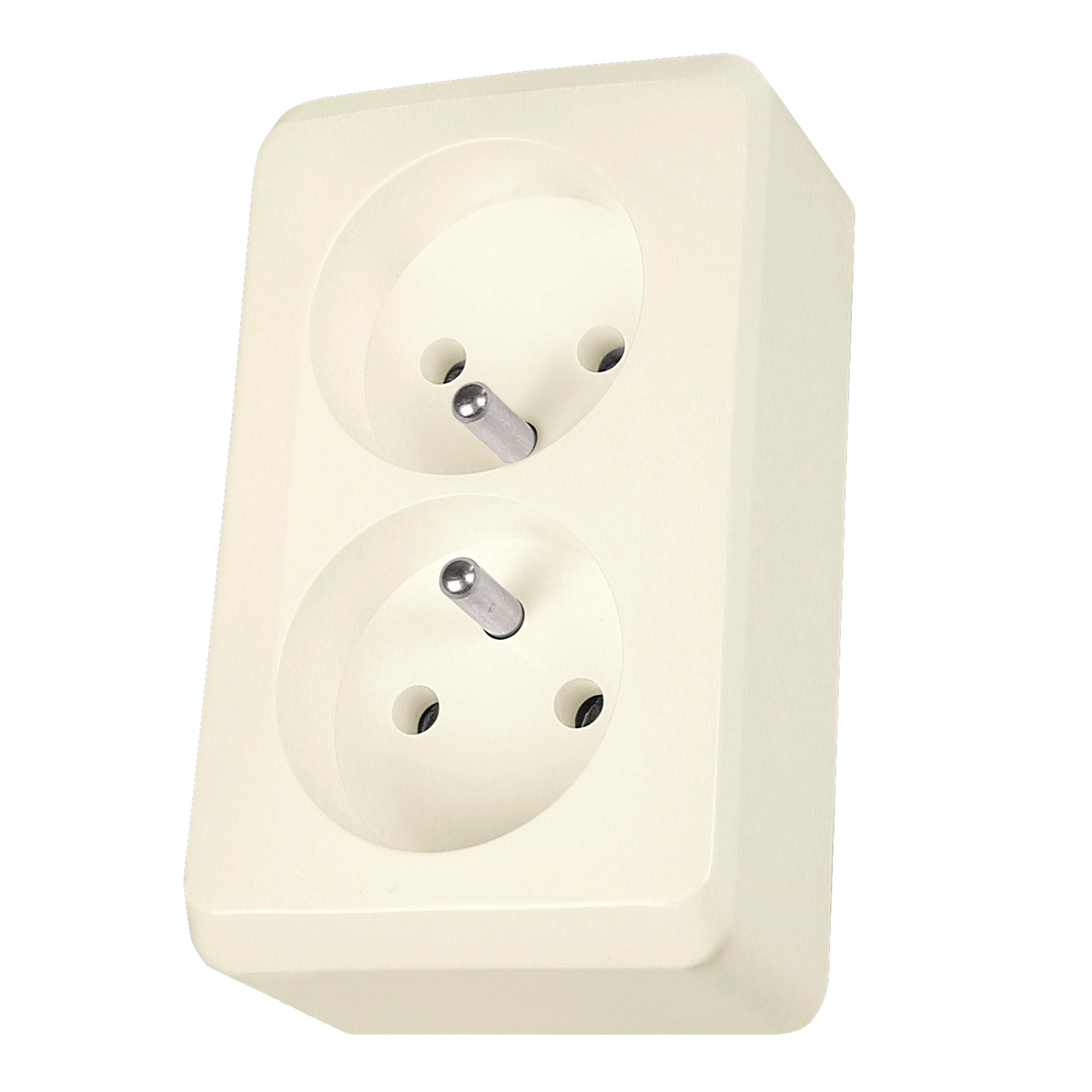

Prima Double socket 2p+PE beige WDE001143

local index:
MFE002SCHN
Catalog No:
WDE001143
EAN code:
5904093552611
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 41
Number of sockets: 2
Color: Beige
Price:
4,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Surface-mounted electrical socket from the Prima series, from the manufacturer Schneider Electric. The product catalog number is WDE001143.



FEATURES

  • 2P+PE .
  • Double.
  • Earth; grounding pin.
  • Self-locking and screw terminals.
  • Color beige.
  • Rating 16 A.
  • Rated voltage 230 V.
  • Ingress protection IP20.
  • Insulation stripping length from the cable is 11 mm.



SERIES DESCRIPTION

Prima is a series of surface-mounted installation accessories, distinguished by its compact size. Surface-mounted electrical socket characterizes the features of this unique series.

Technical data

  • Depth [mm]
    41
  • Color
    Beige
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Surface-mounted
  • Height [mm]
    101
  • Backlight
    NO
  • On the DATA key
    NO
  • Exact material
    PA6
  • Number of sockets
    2
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Rated current [A]
    16
  • Family
    PRIMA
  • Width [mm]
    61
  • Ground
    Hurt
  • Surface finish
    Shiny
  • Standard
    European
  • For the frame system
    NO
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Other
  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    0
  • Number of phases
    1
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    1015
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    Other
  • Device height
    101 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    Beige
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    61 mm
  • Device depth
    41 mm
