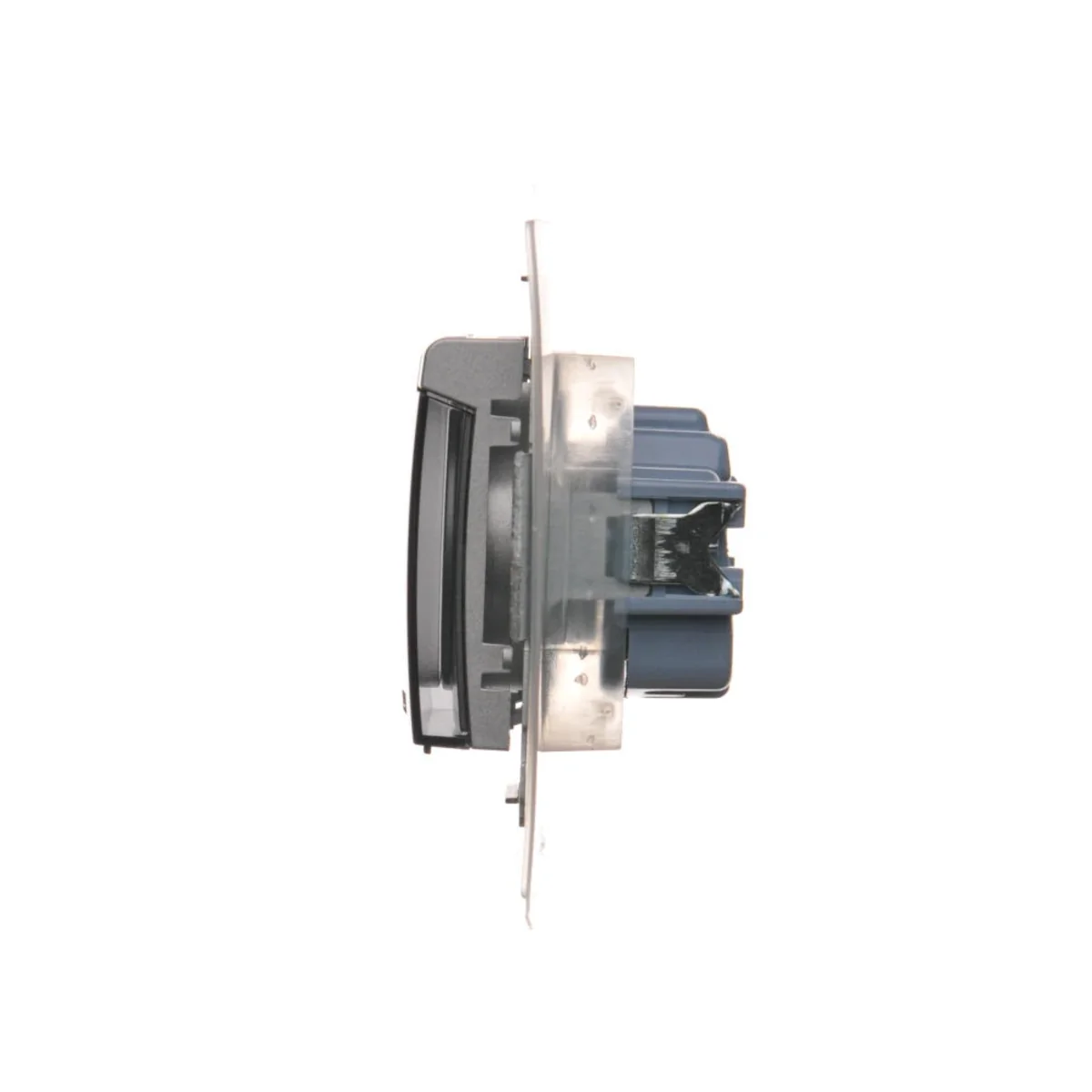

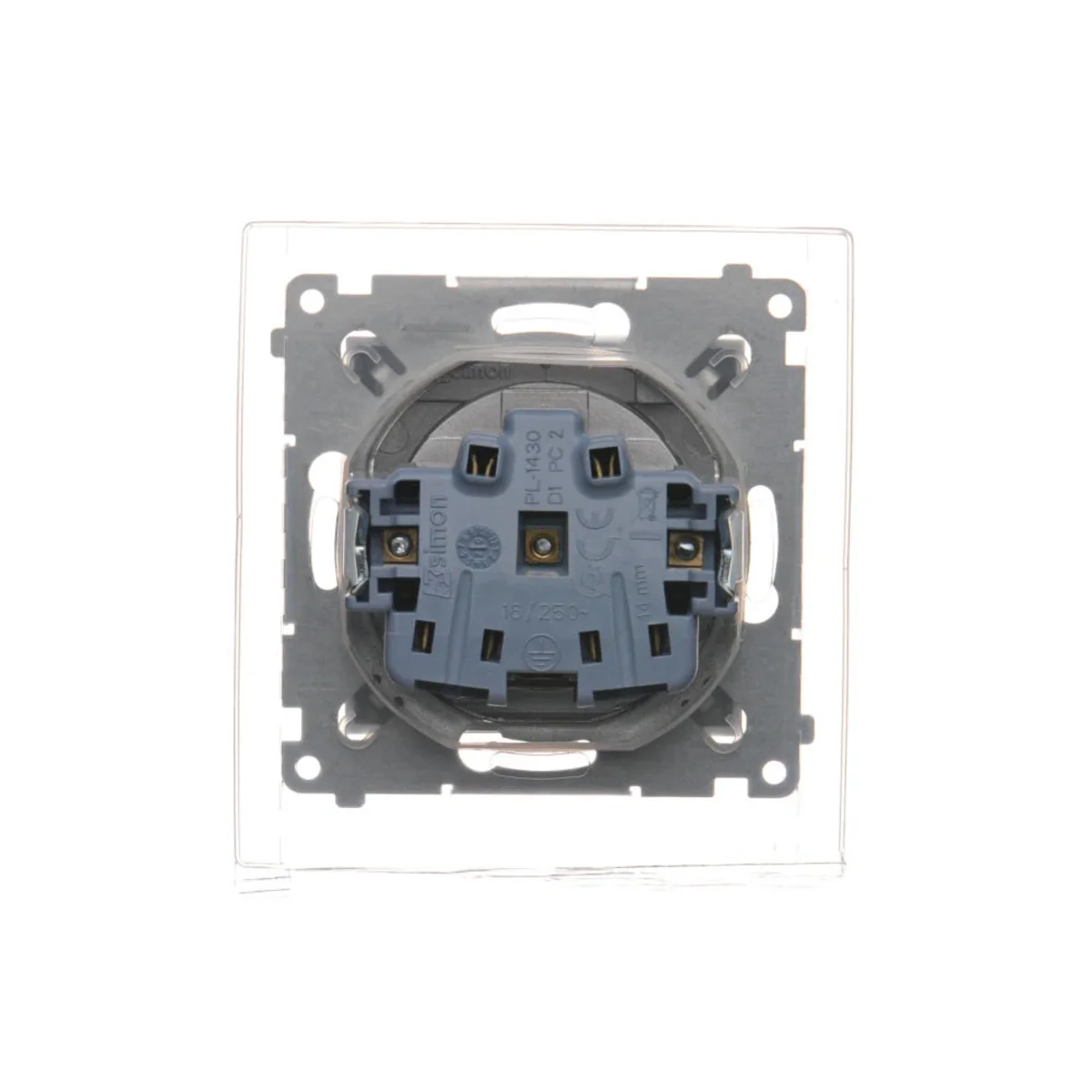

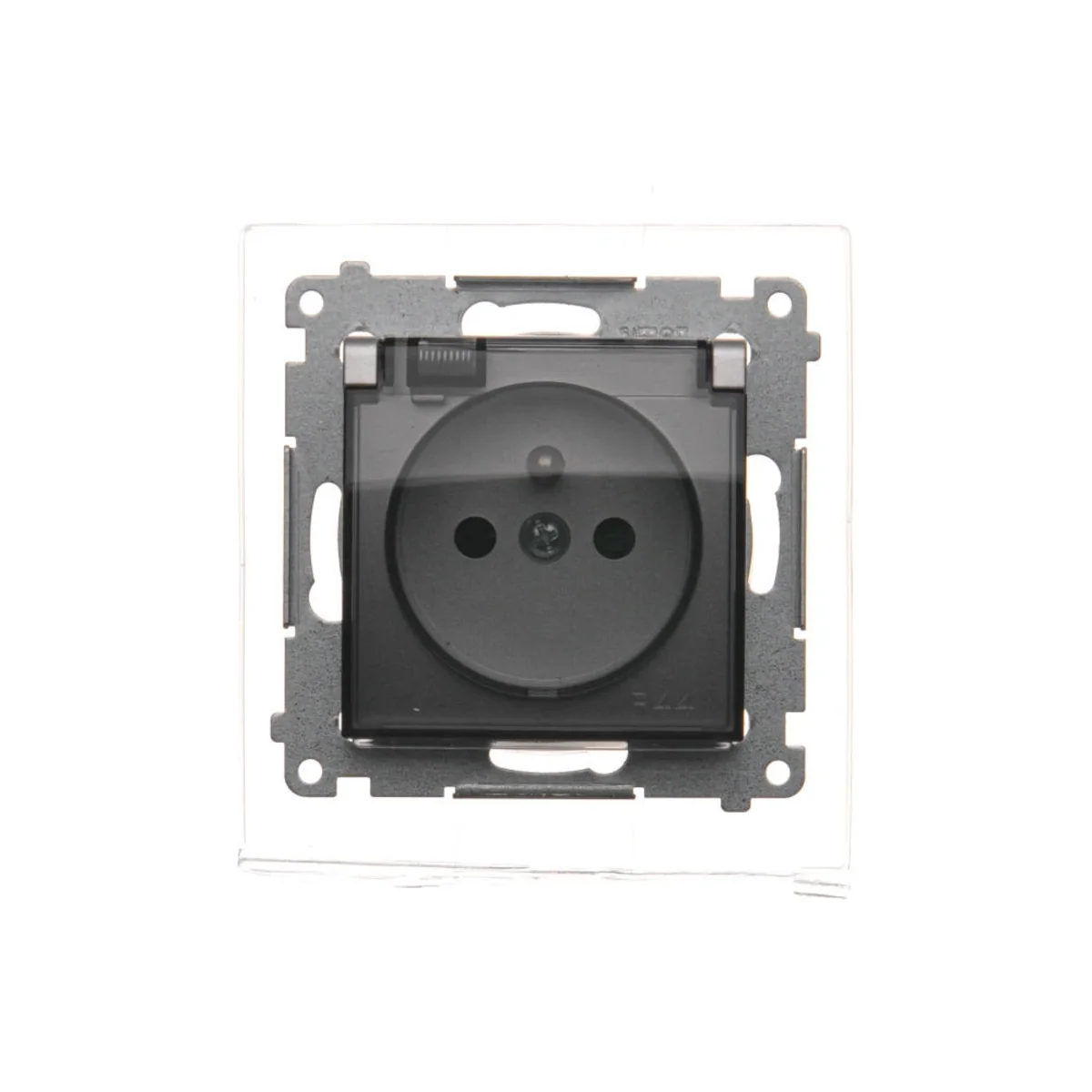

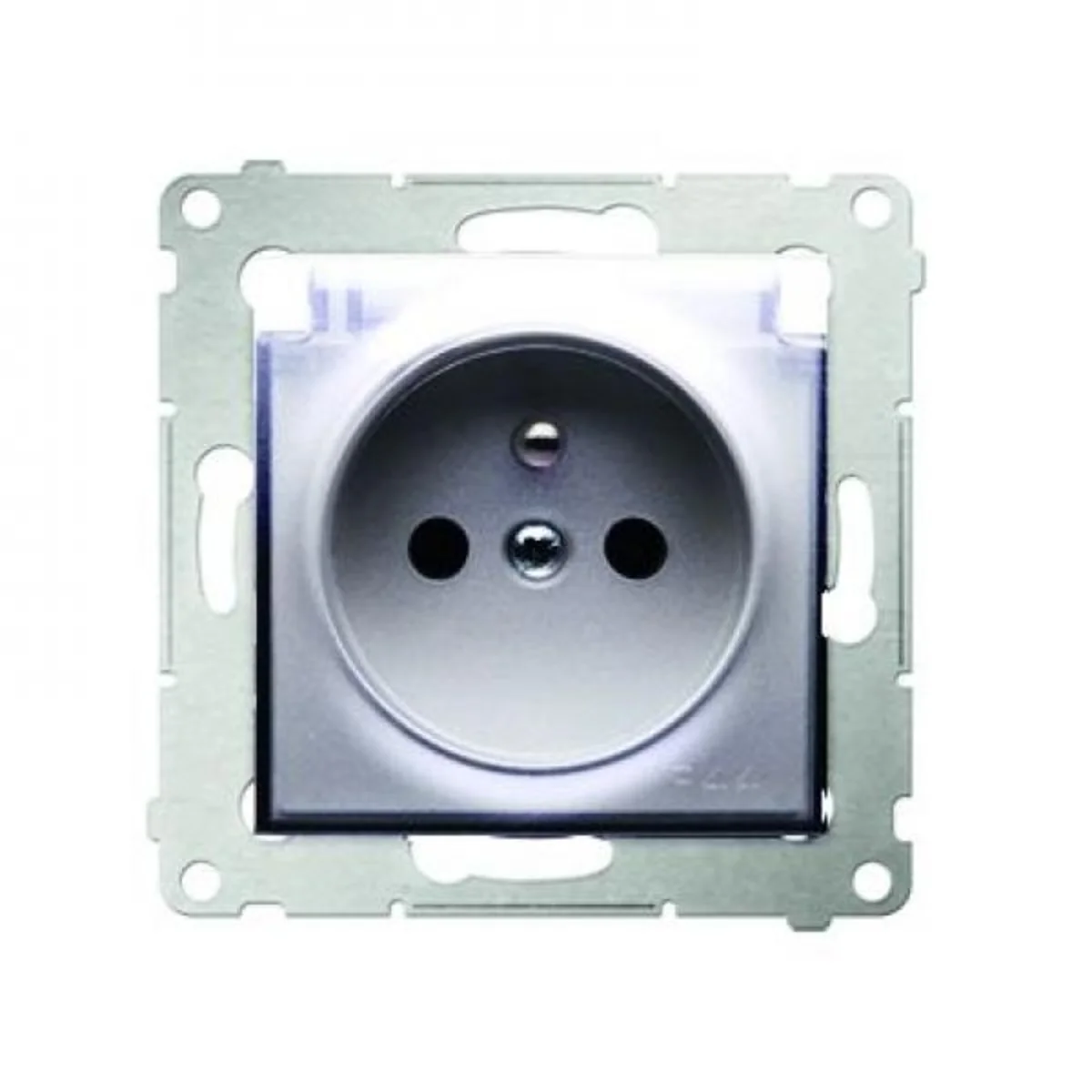

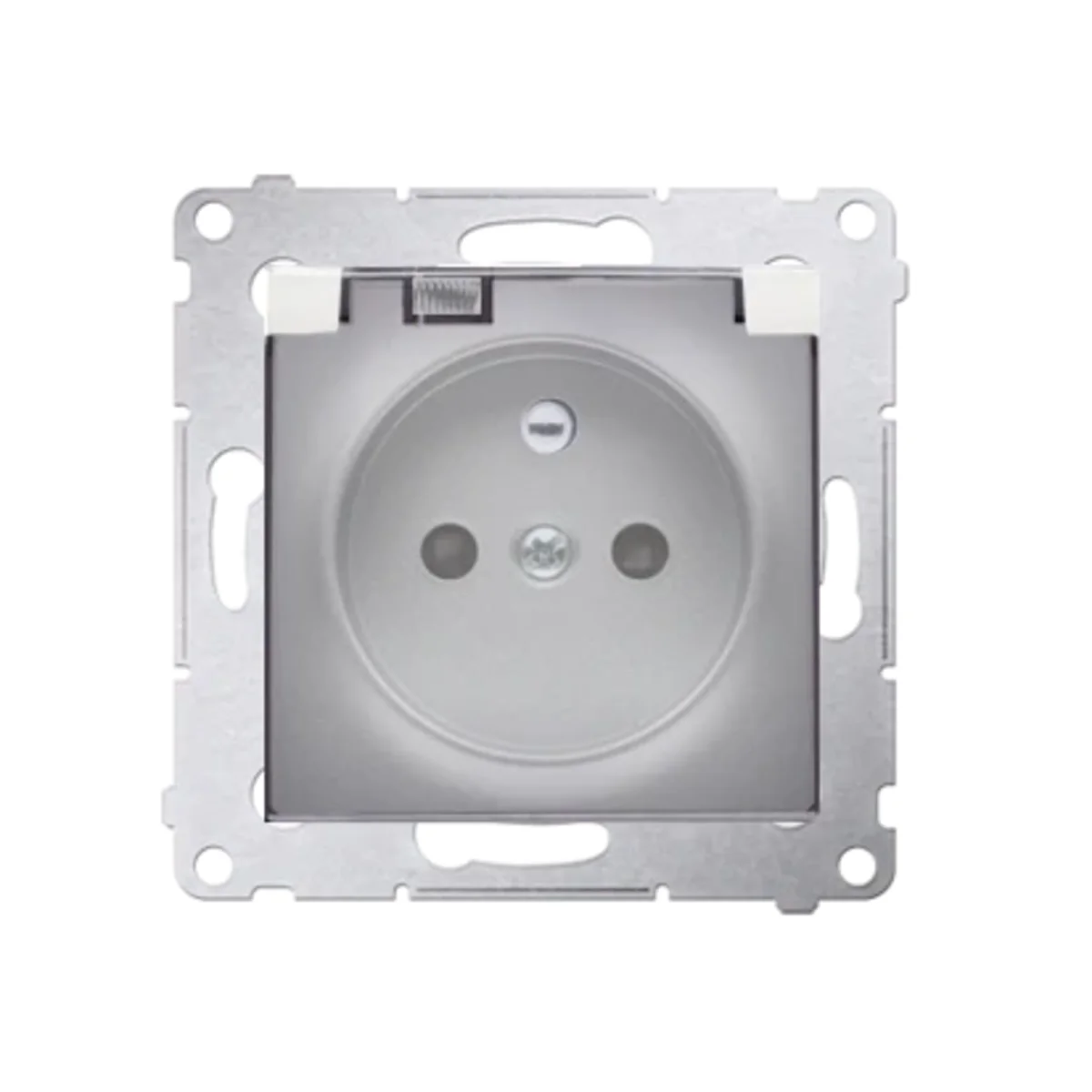

Plug socket for IP44 version with shutters and frame gasket (module) 16A 250V transparent flap silver (metallic) DGZ1BZ.01/43A

local index:
MEB108KONT
Catalog No:
DGZ1BZ.01/43A
EAN code:
5902787824174
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 45
Number of sockets: 1
Price:
9,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hermetic electric socket from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DGZ1BZ.01/43A.



FEATURES

  • Single.
  • Grounded; grounding pin.
  • With shutters for current paths.
  • With gasket.
  • Module without a frame; for frames from the Premium series.
  • Screw terminals.
  • Color matt silver, metallised.
  • Transparent lid.
  • Rated current 16A.
  • Rated voltage 230V.
  • flush installation.
  • Material PC.



SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and easy-to-install mechanisms, distinguished by its noble form and rich colors . The hermetic socket has all the features of this unique series.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP44
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • Exact material
    PC
  • PKWIU
    27.33.13.0
  • Depth [mm]
    45
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    Simon 54
  • Width [mm]
    75
  • Ground
    Hurt
  • Surface protection
    varnishing
  • Accurate color
    Silver metallic matt
  • Mounting depth [mm]
    29
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Transparent
  • Seal
    Yes

Other technical data

  • Number of units
    1
  • Colour
    Silver
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP44
  • Connection type
    Screwed terminal
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Frequency
    50 ... 60 Hz

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,090 0,090 0,989
Width (m) 0,089 0,110 0,190
Length (m) 0,084 0,050 0,230
Depth (m) 0,045 0,160 0,100
