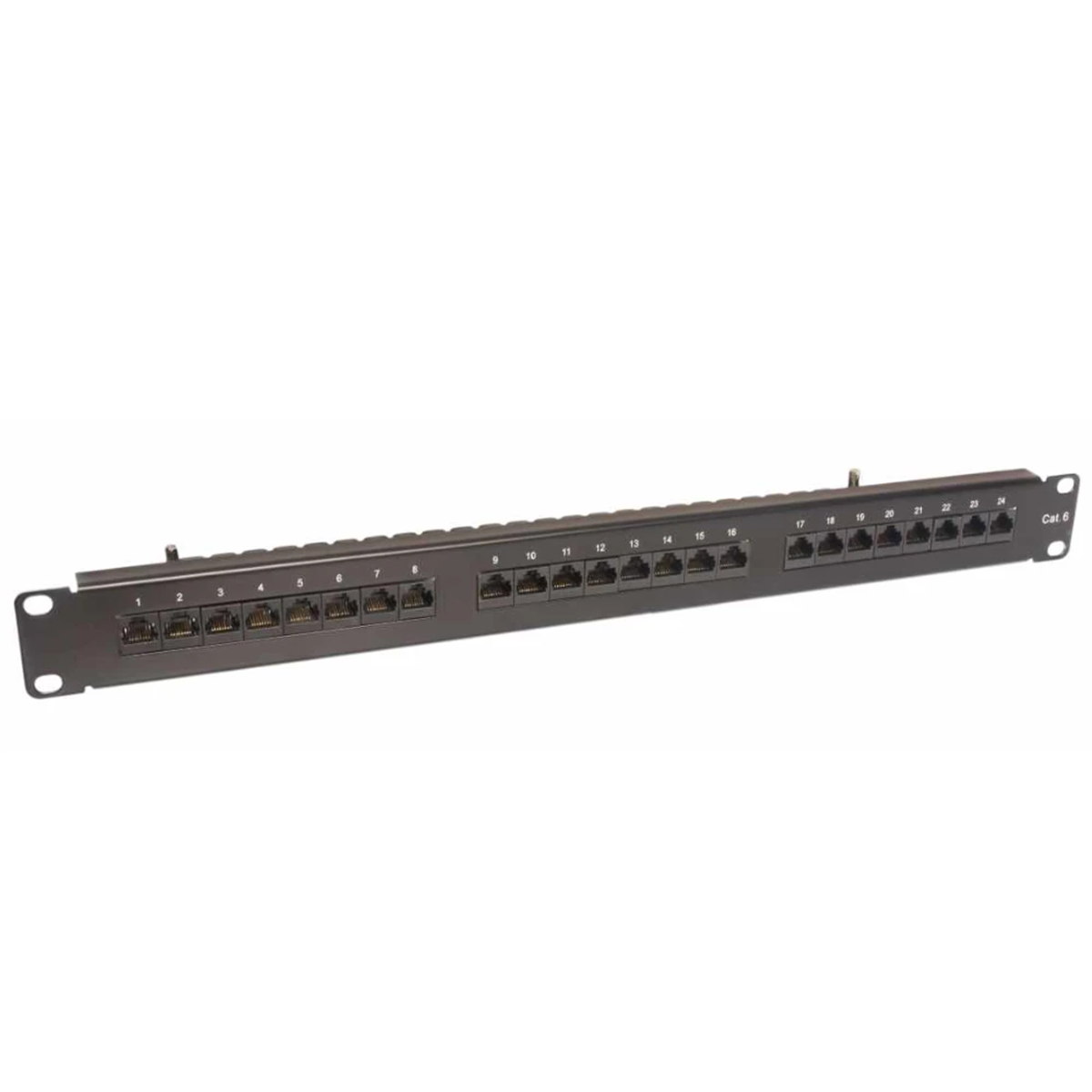

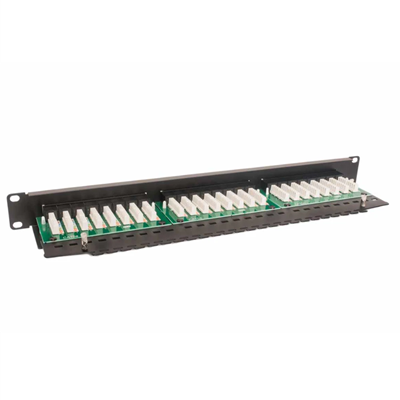

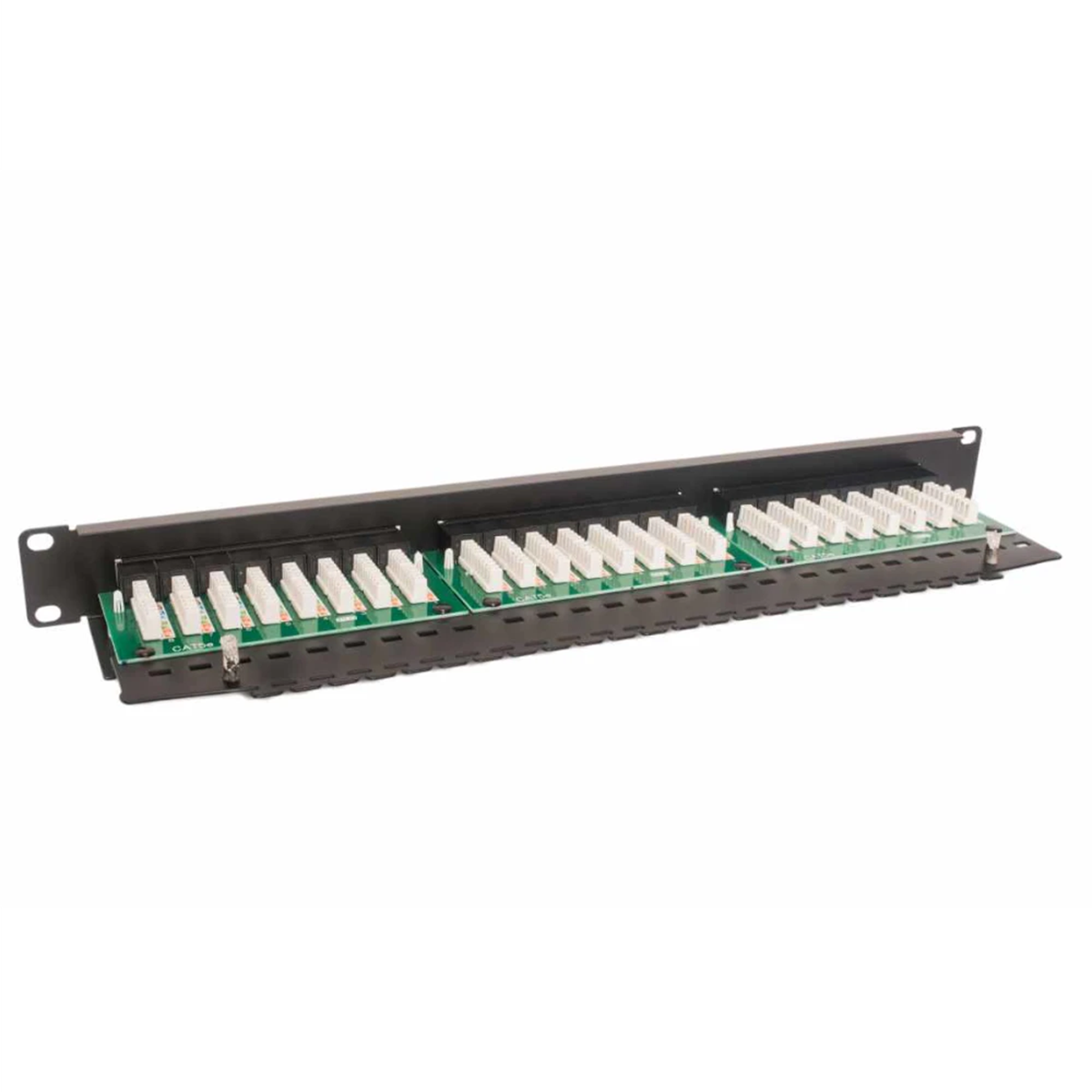

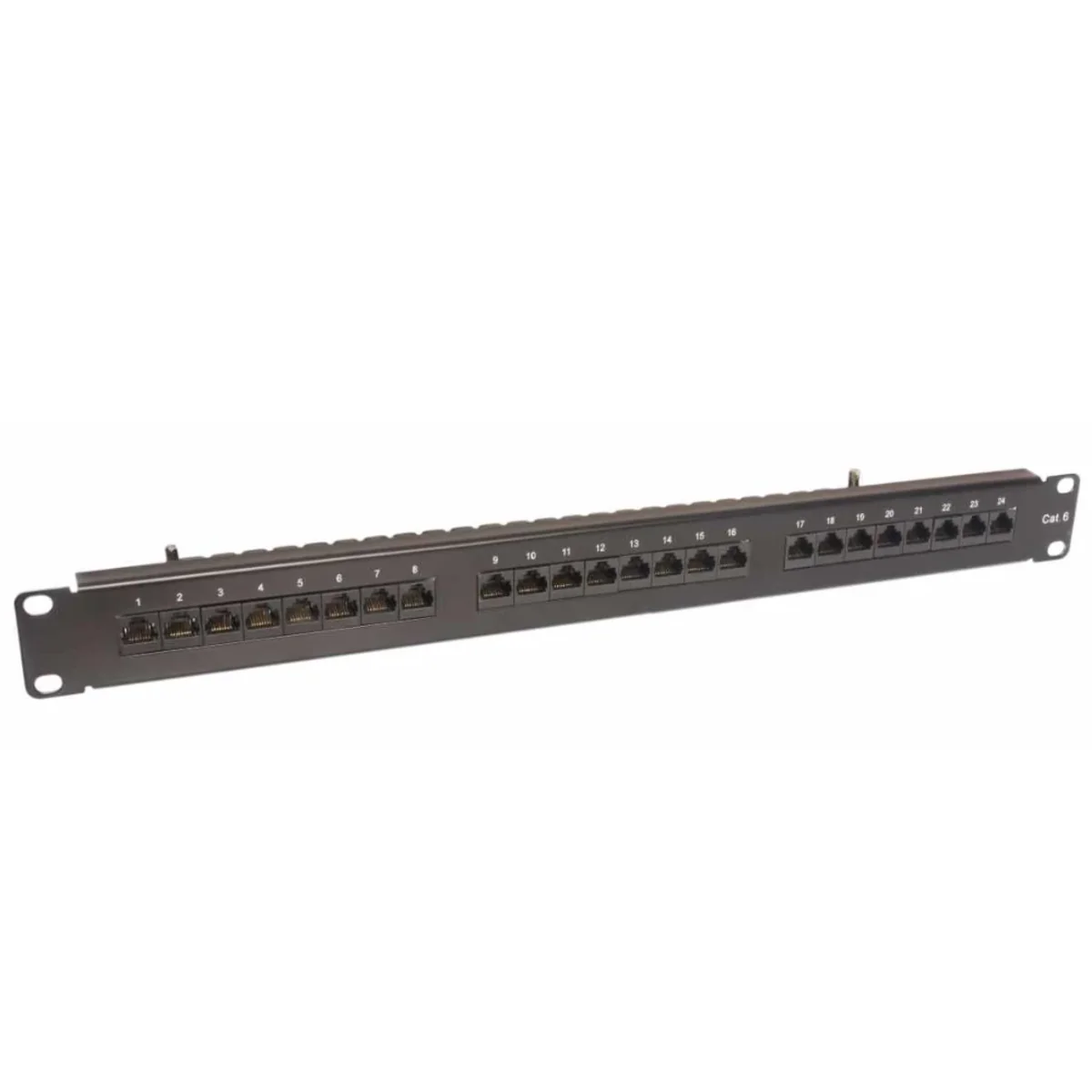

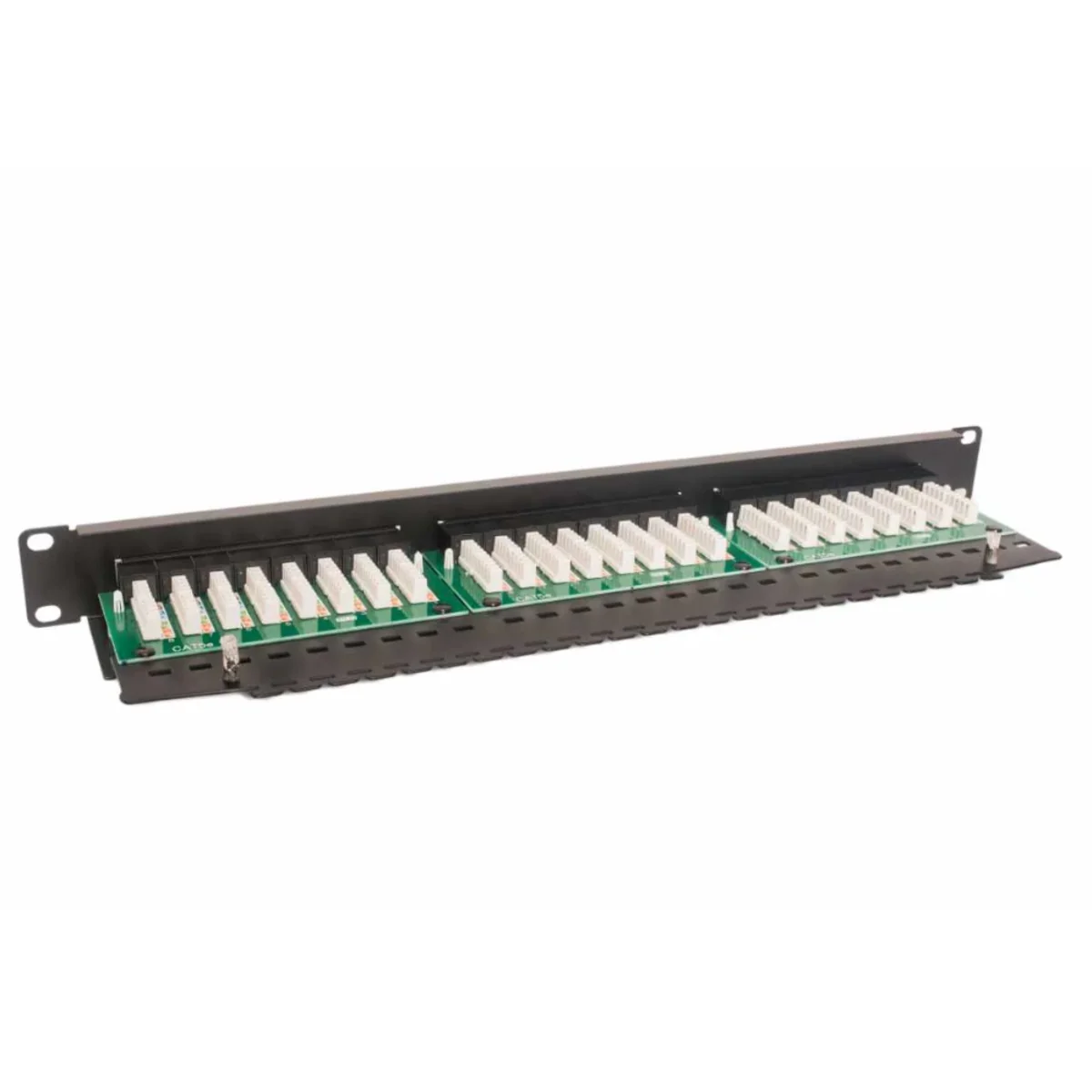

Patch panel cat. 6 UTP 24 x RJ-45 unshielded with a shelf black CCAS-PA6-24UTP-O

local index:
AEP004CICQ
Catalog No:
CCAS-PA6-24UTP-O
EAN code:
5904169100890
Manufacturer: SECURITYNET
Category: 6
Color: Black
Connector type: RJ45
Price:
45,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 17 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The Cat. 6 UTP panel is designed for the installation of twisted pair cables in a 19" telecommunication cabinet. Application in  installations IT telephone networks, CCTV systems, etc. - those that are exposed to electromagnetic interference.

The panel meets the requirements of structured cabling standards: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2.

Technical data

  • Category
    6
  • Connector type
    RJ45
  • PKWIU
    27.33.13.0
  • Color
    Black
  • Number of connectors
    24

Other technical data

  • Number of buses/couplings
    24
  • Type of connector
    RJ45 8(8)
  • Category
    6
  • Number of height units
    1
  • RAL-number
    9005
  • Suitable for number of connectors
    24
  • Screened
    No
  • Connection type
    LSA
  • Colour
    Black
  • Mounting method
    482.6 mm (19 inch) mounting
