one.platform USB Charging Socket Mechanism 3.0 A 230 V, White, Matt 260209

local index:
MJU006BERK
Catalog No:
260209
EAN code:
4011334467830

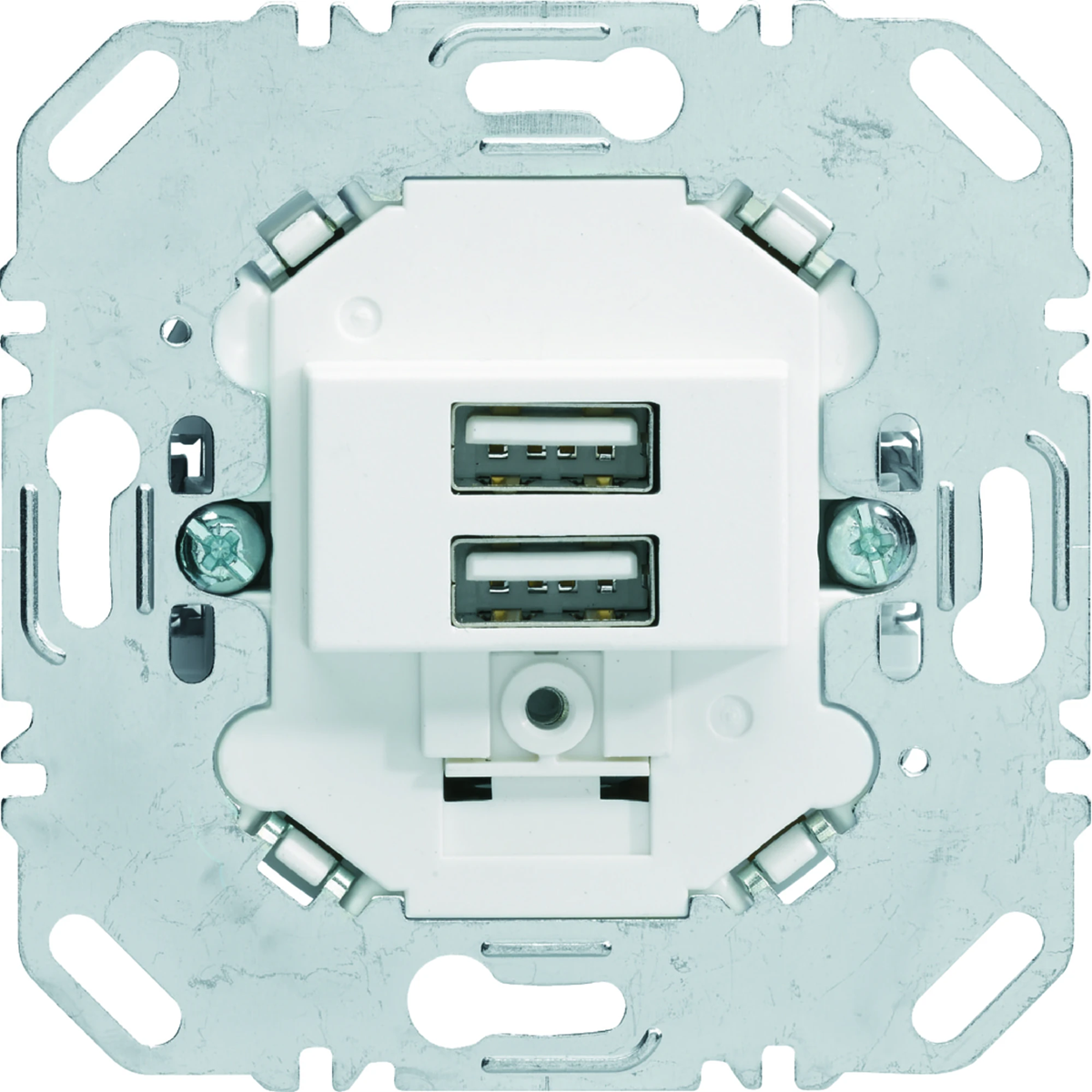

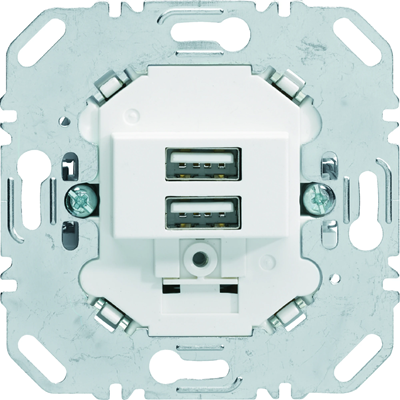

one.platform USB Charging Socket Mechanism 3.0 A 230 V, White, Matt
one.platform USB Charging Socket Mechanism 3.0 A 230 V, White, Matt

Click on the photo to enlarge

Manufacturer: BERKER
Number of sockets: 2
Shape: square | Round
Rated voltage [V]: 230
See full description
Price:
73,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Mechanism of the USB charging socket from the one.platform series, from Berker. The product part number is 260209.



FEATURES

  • With 2 USB type A sockets.< /li>
  • White.
  • Short-circuit and overload protection (electronic fuse).
  • Standby power consumption: 150mW maximum.
  • Data transmission is not possible.

Technical data

  • Number of sockets
    2
  • Rated voltage [V]
    230
  • Rated current [A]
    3
  • Family
    ONE.PLATFORM
  • Type
    Socket mechanism
  • Maximum conductor cross-section [mm²]
    2.5
  • Variant
    USB
  • PKWIU
    27.33.13.0
  • Shape
    square Round
  • Output voltage [V]
    5
  • Type
    USB / power supply 5-24V
  • Level of security
    IP20
  • Surface finish
    matte
  • Terminal type
    Threaded
  • For the frame system
    Yes

Other technical data

  • Model
    Other
  • Number of ports USB-C
    0
  • Frequency
    50 ... 60 Hz
  • Output voltage
    5 ... 5 V
  • Connection type
    Screwed terminal
  • Colour
    White
  • Device width
    70.8 mm
  • Device depth
    40 mm
  • Suitable for degree of protection (IP)
    IP20
  • Anti-bacterial treatment
    No
  • Number of ports USB-A
    2
  • Operating voltage
    230 ... 230 V
  • Max. output current
    3000 mA
  • Power consumption
    0.15 W
  • Mounting method
    Flush-mounted
  • RAL-number
    9010
  • Device height
    70.8 mm
  • Min. depth of built-in installation box
    34 mm
  • Impact strength
    Other

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet
Quantity 1 pcs. 80 pcs.
Weight (kg) 0,080 6,400
Width (m) 0,080 0,350
Length (m) 0,060 0,350
Depth (m) 0,080 0,350
