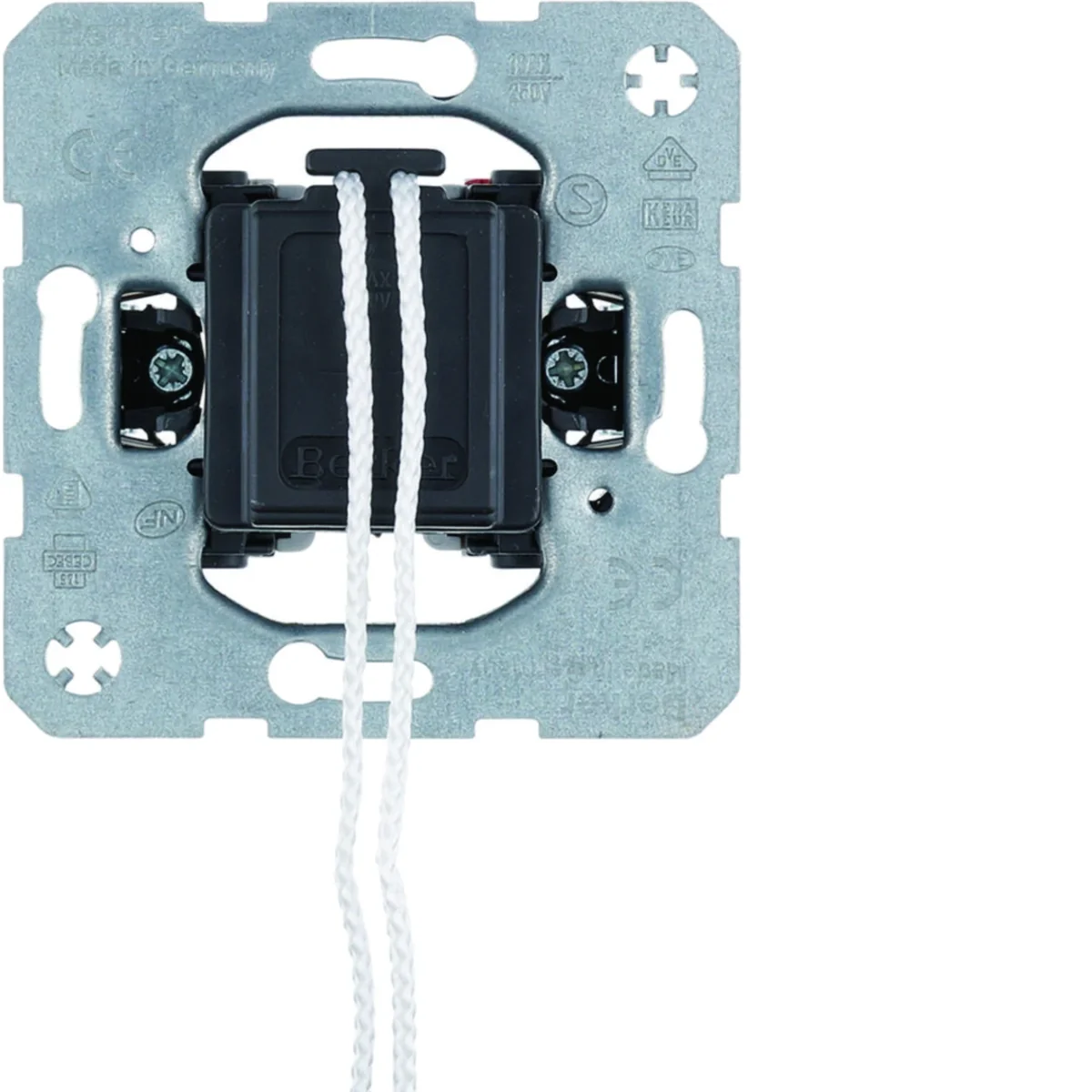

ONE.PLATFORM Universal pull coupler 3966
local index:
MSS026BERK
Catalog No:
3966
EAN code:
4011334025160
Price:
15,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Universal pull pull switch(mechanism), series one.platform.
- 1-pole/variable
- for plasterboard walls
- length of the pull connector cord: 14 cm
- for wall and ceiling mounting
- for backlight connection and backlight control connection
- with plug-in terminals
Technical data
-
Depth [mm]42
-
Rated voltage [V]230
-
Rated current [A]10
-
Level of securityIP20
-
Fastener type1-pole/variable
-
PKWIU27.33.11.0
-
MaterialPlastic Metal
-
DC rated voltage [V]250
-
FamilyONE.PLATFORM
-
Width [mm]71
-
Connection typeWith plug-in terminals
Other technical data
-
Wiring systemTwo-way switch
-
Assembly arrangementBasic element
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityOther
-
Surface protectionOther
-
Label space/information surfaceNo
-
Function lightingControl and orientation
-
Suitable for degree of protection (IP)IP20
-
Rated current10 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height71 mm
-
Built-in depth31 mm
-
Method of operationPull cord
-
Push button switchNo
-
Type of fasteningMounting with claw
-
MaterialOther
-
Halogen freeYes
-
Surface finishingMatt
-
IlluminationOptional
-
Type of lightingGlow lamp
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typePush-in clamp
-
Device width71 mm
-
Device depth42 mm
-
Min. depth of built-in installation box35 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 50 pcs. | 1600 pcs. |
| Weight (kg) | 0,065 | 0,728 | 4,076 | 155,432 |
| Width (m) | 0,071 | 0,170 | 0,300 | 0,800 |
| Length (m) | 0,042 | 0,075 | 0,225 | 1,050 |
| Depth (m) | 0,071 | 0,235 | 0,400 | 1,200 |
