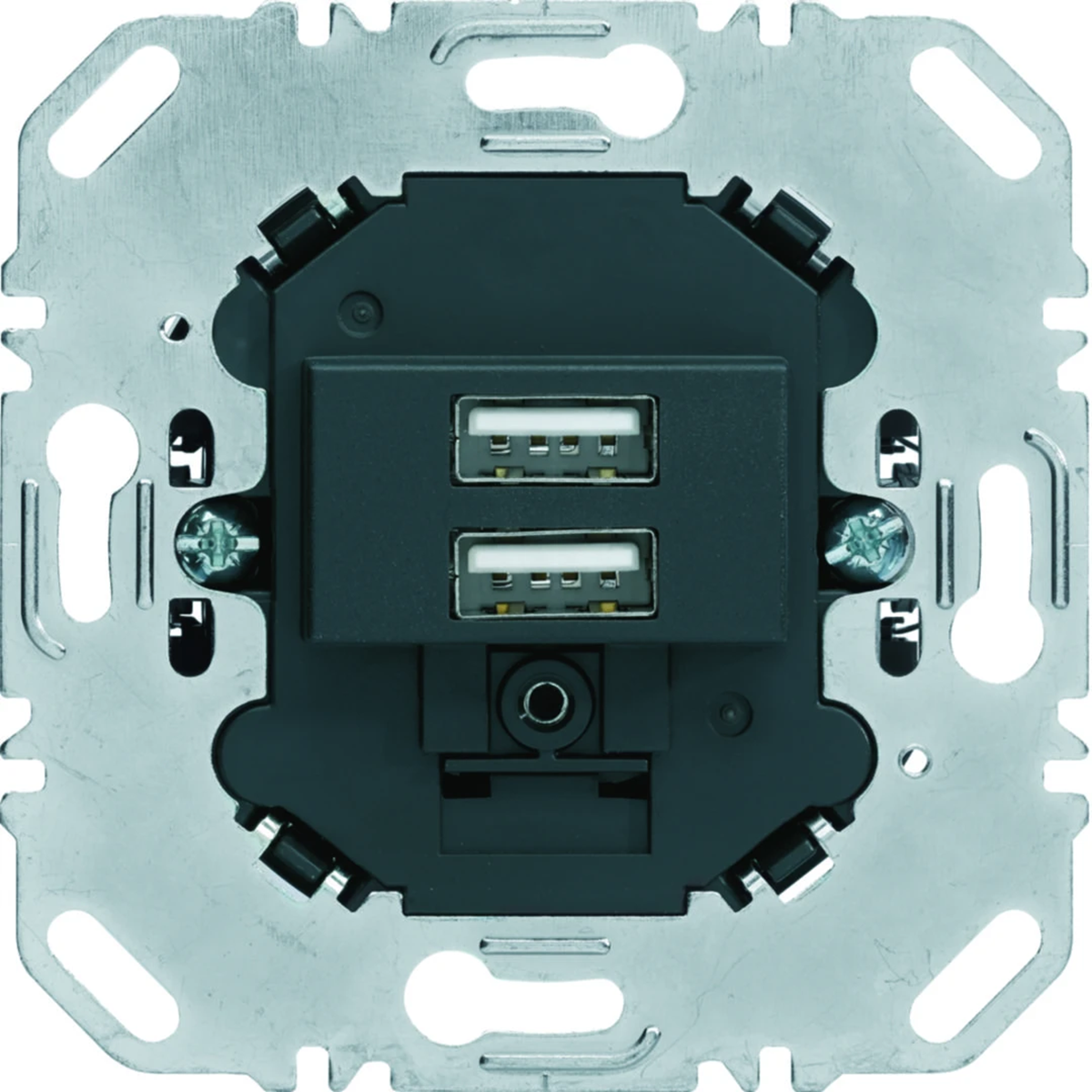

one.platform Socket mechanism USB charging 3.0 A 230 V, anthracite, mat 260205

local index:
MJU003BERK
Catalog No:
260205
EAN code:
4011334467847
Manufacturer: BERKER
Number of sockets: 2
Shape: square | Round
Rated voltage [V]: 230
Price:
74,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Mechanism of the USB charging socket from the one.platform series, from Berker. The product part number is 260205.



FEATURES

  • With 2 USB type A sockets.< /li>
  • Short-circuit and overload protection (electronic fuse).
  • Standby power consumption: 150mW maximum.
  • Data transmission not possible.

Technical data

  • Number of sockets
    2
  • Rated voltage [V]
    230
  • Rated current [A]
    3
  • Family
    ONE.PLATFORM
  • Type
    Socket mechanism
  • Maximum conductor cross-section [mm²]
    2.5
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • Shape
    square Round
  • Output voltage [V]
    5
  • Type
    USB / power supply 5-24V
  • Level of security
    IP20
  • Surface finish
    matte
  • Accurate color
    Anthracite
  • Variant
    USB
  • PKWIU
    27.33.13.0

Bulk packaging

A kind of package Pakiet Paczka Paleta
Quantity 1 pcs. 80 pcs. 1920 pcs.
Weight (kg) 0,129 11,120 266,880
Width (m) 0,082 0,400 0,080
Length (m) 0,060 0,350 1,050
Depth (m) 0,082 0,600 1,200
