MOSAIC Socket HD15 screw connectors - 2 WHITE female modules 078757

Name: MOSAIC Socket HD15 screw connectors - 2 WHITE female modules
Brand: LEGRAND
SKU: MGH003LEGR
Price: 420.57 PLN
Availability: BackOrder

Índice local:

MGH003LEGR

Número de catálogo:

078757

Código EAN:

3245060787578

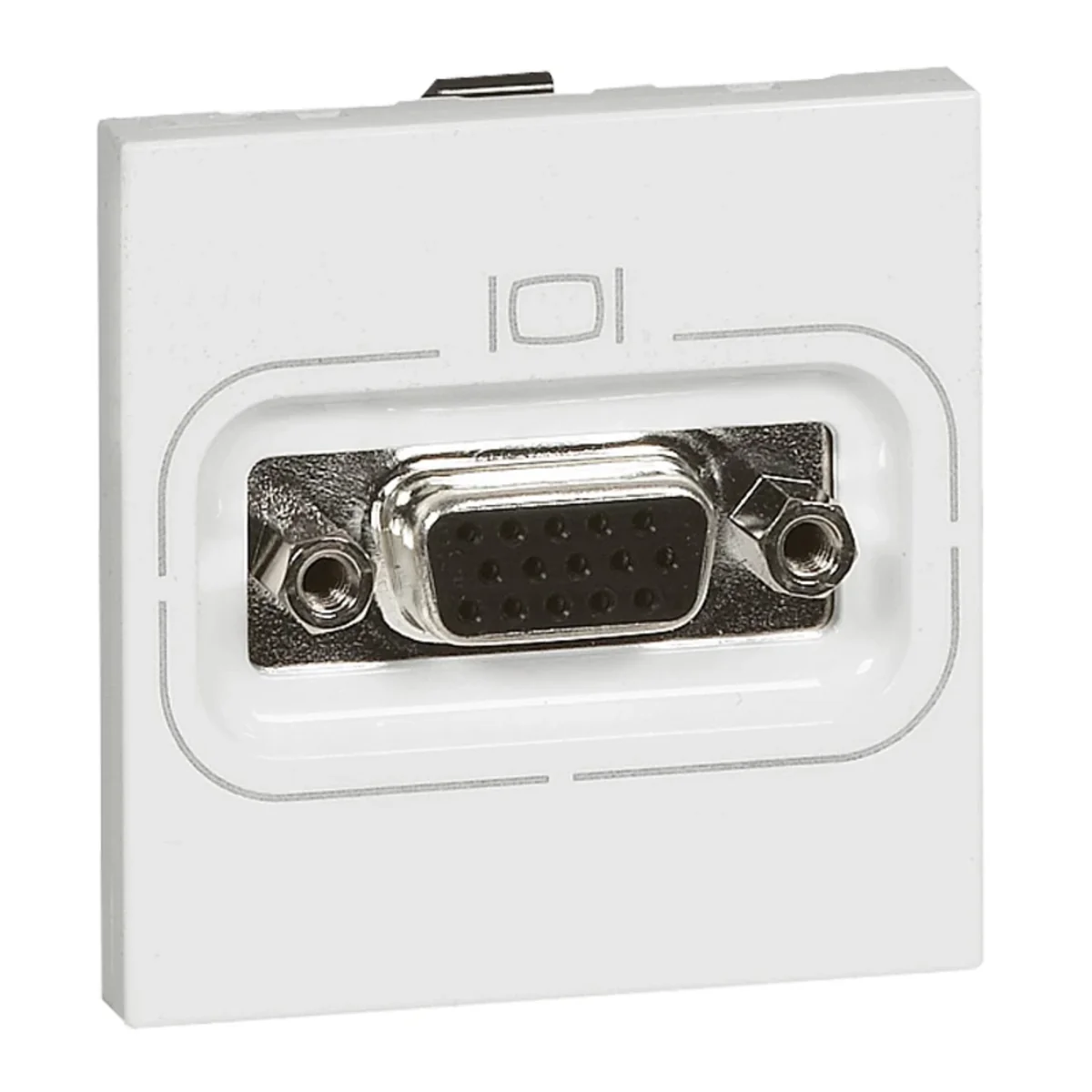

MOSAIC Socket HD15 screw connectors - 2 WHITE female modules

Haga clic en la foto para ampliar

Fabricante: LEGRAND

Number of sockets: 1

Number of modules: 2

Color: White

Ver descripción completa

Precio:

420,57 zł

gross / uds.

(IVA incluido 23%)

hasta 2 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

VGA port of Mosaic, from Legrand. The product catalog number is 078757.

FEATURES

Mechanism to be equipped with a universal holder and a frame.
HD15 "female" socket with screw terminal connection.
For connecting VGA, XGA, or VESA, PC monitor, plasma screen, video projector, graphic wall, etc.
Cable: VGA size 28.
Maximum cable length: 25 m (if no VGA amplifier is provided).
2 modules.

SERIES DESCRIPTION

The Mosaic program is an ideal solution for users who want to install electrical installation equipment according to their own preferences - on a desk, on the floor, in a wall or in cable trunking.

Datos técnicos

Number of sockets

1
Color

White
Material

Plastic
Family

MOSAIC
Type

45x45
Mounting depth [mm]

31
Variant

VGA
Exact material

PC ABS

Number of modules

2
Shape

Square
Type

HDMI / VGA
Width [mm]

45
Height [mm]

45
Terminal type

Threaded
For the frame system

Yes
PKWIU

27.33.13.0

Otros datos técnicos

Assembly arrangement

Modular device for domestic switching devices
With dust cover

No
Outlet direction

Straight
With imprint

No
Material

Plastic
Anti-bacterial treatment

No
Surface finishing

Matt
Transparent

No
Number of modules (module system)

2
Shielded buses

No
Luster terminal

No
Impact strength

IK04
Device height

45 mm

Utilization

D-Sub 15-pole
With hinged lid

No
Imprintable label

Without indication field
Mounting method

Surface mounted
Material quality

Thermoplastic
Surface protection

Untreated
Colour

White
Type of fastening

Engage (snap)
Suitable for number of connectors

1
Shielded housing

No
Suitable for degree of protection (IP)

IP40
Device width

45 mm
Device depth

24.8 mm

Detalles del fabricante

Fabricante

Legrand Polska Sp. z o.o.
Dirección

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
Email

info@legrand.com.pl

Empaquetado a granel

una especie de paquete	Pudełko	Karton	Paleta
Cantidad	1 uds.	20 uds.	240 uds.
Peso (kg)	0,065	1,575	18,900
Volumen (m3)	0,001	0,019	0,456
Ancho (m)	0,094	0,263	1,200
Longitud (m)	0,072	0,215	0,380
Profundidad (m)	0,100	0,328	1,000
