LUMINA SCHUKO socket with cover white WL1150

Lokaler Index:

MEB011HAGE

Katalognummer:

WL1150

EAN-Code:

8694407001023

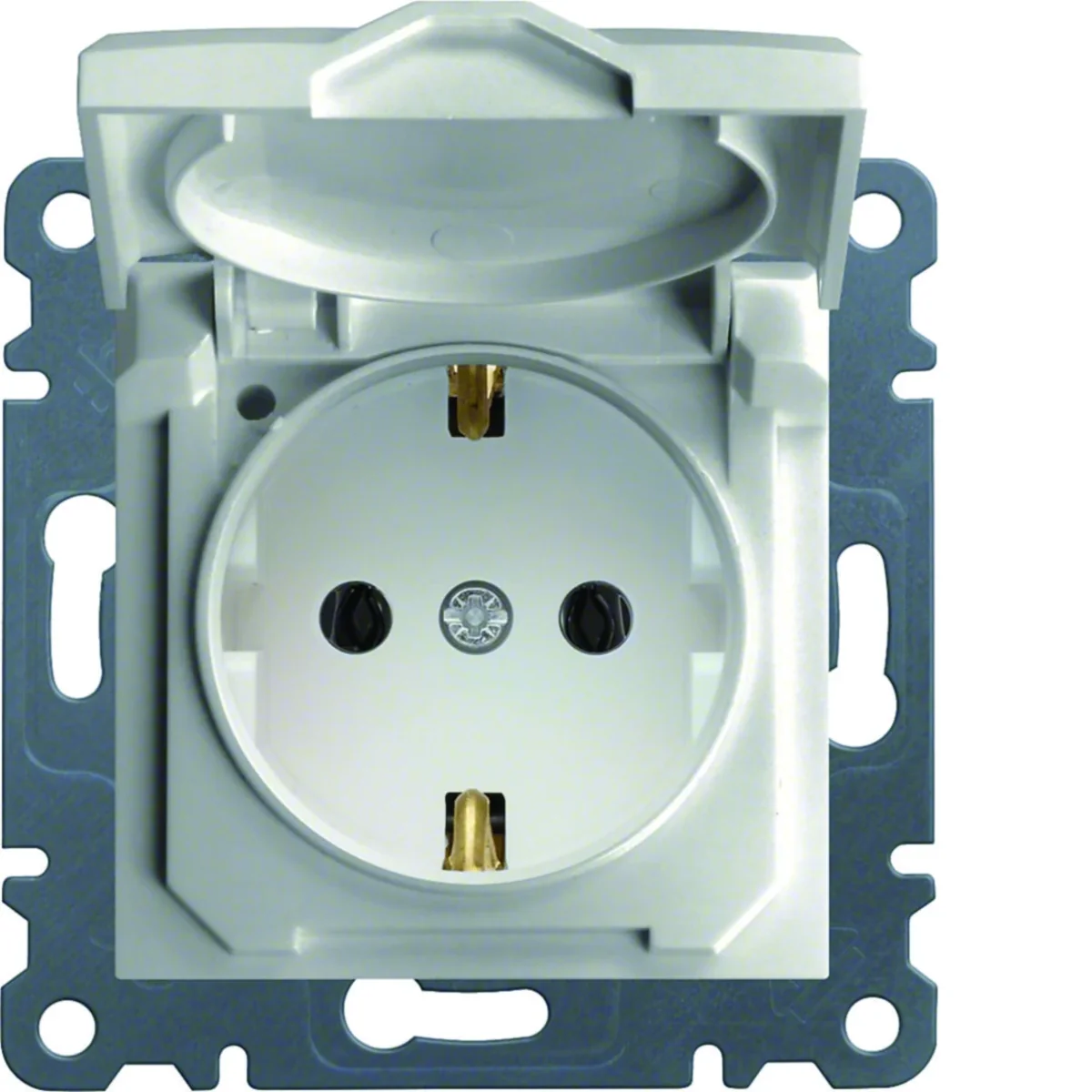

LUMINA SCHUKO socket with cover white

LUMINA SCHUKO socket with cover white

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: HAGER

Number of sockets: 1

Color: White

Shape: Square

Siehe vollständige Beschreibung

Preis:

5,09 €

gross / stk.

(inklusive MwSt 23%)

Zugänglich 50 stk.

Menge stk.

(mehrere:

1

)

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Großpackungen

Produktbeschreibung

Electric socket from the lumina soul series, from the manufacturer Hager. The product part number is WL1150.

FEATURES

Schuko.
With spreading claws, for screw connection.
Without extended contact protection.

Technische Daten

Number of sockets

1
Shape

Square
Fixing

Expanding claws
Rated voltage [V]

230
Surface

Gloss
Type

Electrical hermetic
Level of security

IP20
Ground

schuko
Surface finish

Shiny
Terminal type

Threaded
Shutters of current paths

NO
For the frame system

Yes
Exact material

Material Metal

Color

White
Material

Plastic
Installation

Flush-mounted
Mechanical resistance

IK02
Rated current [A]

16
Family

LUMINA SOUL
Type

Flush-mounted
Degree of mechanical protection

IK02
Backlight

NO
Standard

European
On the DATA key

NO
Lid color

Socket color
PKWIU

27.33.13.0

Weitere technische Daten

Model

Protective contact CEE 7/3 / CEE 7/4 (type F)
Number of active contacts (round)

2
With signal lamp

No
Number of modules (module system)

0
Number of phases

1
With hinged lid

Yes
Label space/information surface

No
RAL-number (similar)

9016
Lockable

No
With function lighting

No
Over voltage protection

No
With miniature fuse

No
Mounting method

Flush-mounted
Material

Other
Surface protection

Untreated
Anti-bacterial treatment

No
With loop through function

No
Nominal current

16 A
Frequency

50 ... 60 Hz
Suitable for degree of protection (IP)

IP20
Device width

71 mm
Device depth

47 mm

Protective contact

Yes
Number of active contacts (flat)

0
With built-in USB power supply

No
Number of socket outlets switchable

0
Connection type

Screwed terminal
With enhanced contact protection

No
Colour

White
Transparent

No
Eject-mechanism

No
With orientation lighting

No
Fault current protection

No
Special power supply

No special power supply
Type of fastening

Mounting with claw and screw
Halogen free

Yes
Surface finishing

Glossy
With on/off switch

No
Rotated central insert

No
Nominal voltage

250 V
Rated fault current

0 mA
Impact strength

IK02
Device height

71 mm
Min. depth of built-in installation box

35 mm

Großpackungen

Eine Art Paket		Karton	Pakiet	Paleta
Menge	1 stk.	12 stk.	120 stk.	2400 stk.
Gewicht (kg)	0,073	0,945	9,985	222,700
Breite (m)	0,071	0,145	0,305	0,800
Länge (m)	0,047	0,100	0,290	1,050
Tiefe (m)	0,071	0,280	0,495	1,200
