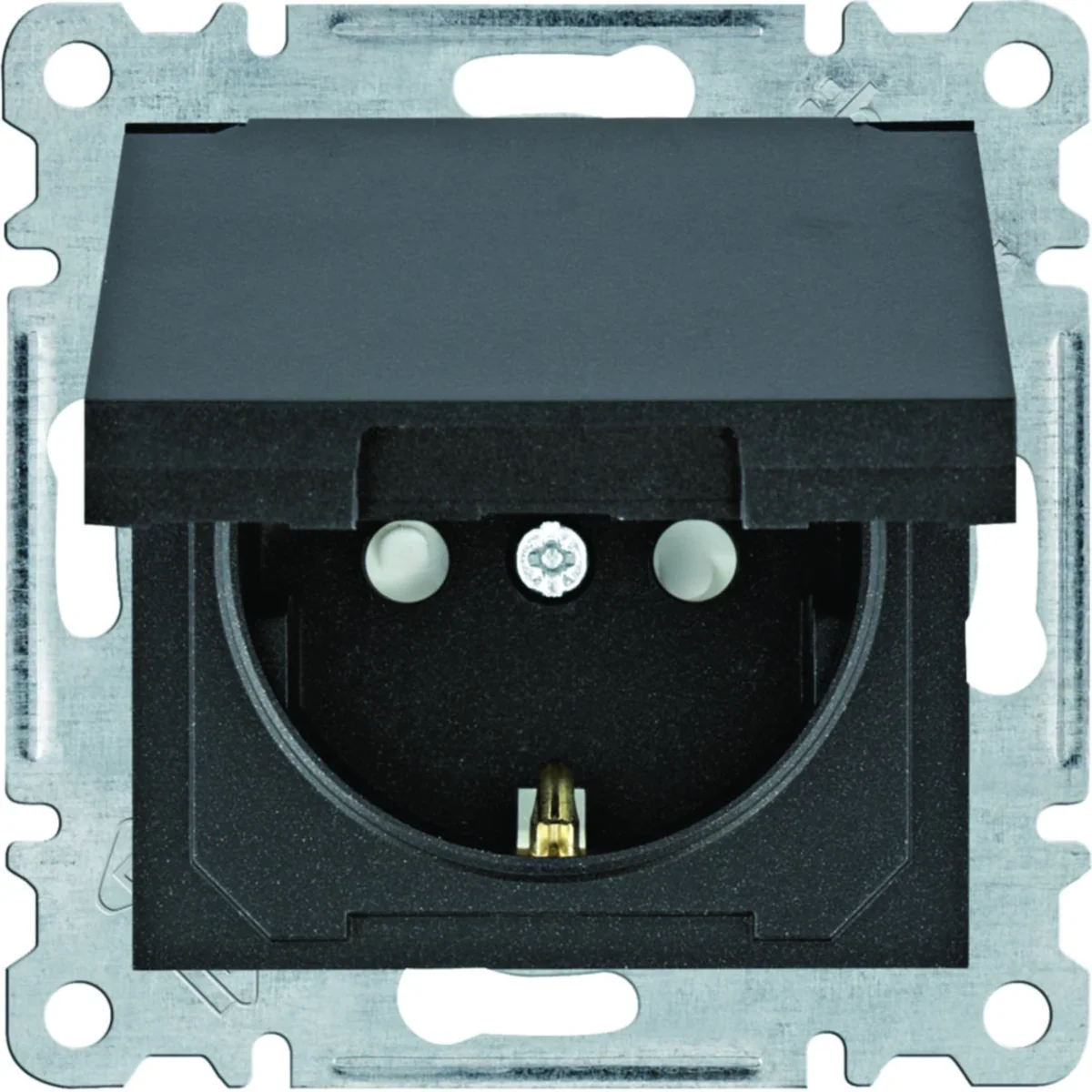

LUMINA SCHUKO socket with cover and contact shutter black WL1163
local index:
MEB006HAGE
Catalog No:
WL1163
EAN code:
8694407003485
Price:
8,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
SCHUKO socket from the Lumina intense series.
- Socket screw terminals: for wire: min. 2x1.5mm²; max. 2x2.5 mm².
SERIES DESCRIPTION
Three classic colors that open up new arrangement possibilities. White, silver and black accessories from the lumina intense series are designed for people who expect perfect harmony. Even down to the smallest detail.
Technical data
-
Number of sockets1
-
ShapeSquare
-
FixingExpansion clamps screws
-
Rated voltage [V]230
-
TypeElectrical hermetic
-
Level of securityIP20
-
Groundschuko
-
Degree of mechanical protectionIK02
-
BacklightNO
-
StandardEuropean
-
On the DATA keyNO
-
Lid colorSocket color
-
PKWIU27.33.13.0
-
ColorBlack
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilyLUMINA INTENSE
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
Surface finishmatte
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
Exact materialMaterial Metal
Other technical data
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Number of active contacts (round)2
-
With signal lampNo
-
Number of modules (module system)0
-
Number of phases1
-
With hinged lidYes
-
Label space/information surfaceNo
-
RAL-number (similar)9004
-
LockableNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialOther
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Suitable for degree of protection (IP)IP20
-
Device width71 mm
-
Device depth32 mm
-
Protective contactYes
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of socket outlets switchable0
-
Connection typeScrewed terminal
-
With enhanced contact protectionYes
-
ColourBlack
-
TransparentNo
-
Eject-mechanismNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw and screw
-
Halogen freeYes
-
Surface finishingMatt
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK02
-
Device height71 mm
-
Min. depth of built-in installation box35 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 12 pcs. | 120 pcs. | 2400 pcs. |
| Weight (kg) | 0,075 | 0,970 | 10,275 | 230,500 |
| Width (m) | 0,071 | 0,145 | 0,400 | 0,800 |
| Length (m) | 0,047 | 0,095 | 0,235 | 1,090 |
| Depth (m) | 0,071 | 0,275 | 0,470 | 1,200 |
