el12 Electrical equipment Sockets Flush-mounted sockets
el12 Electrical equipment Sockets Hermetic electrical sockets
el12 sale El12 and HAGER

LUMINA Power socket with grounding and cover 16 A/250 VAC white WL1120

local index:
MEB008HAGE
Catalog No:
WL1120
EAN code:
8694407000514

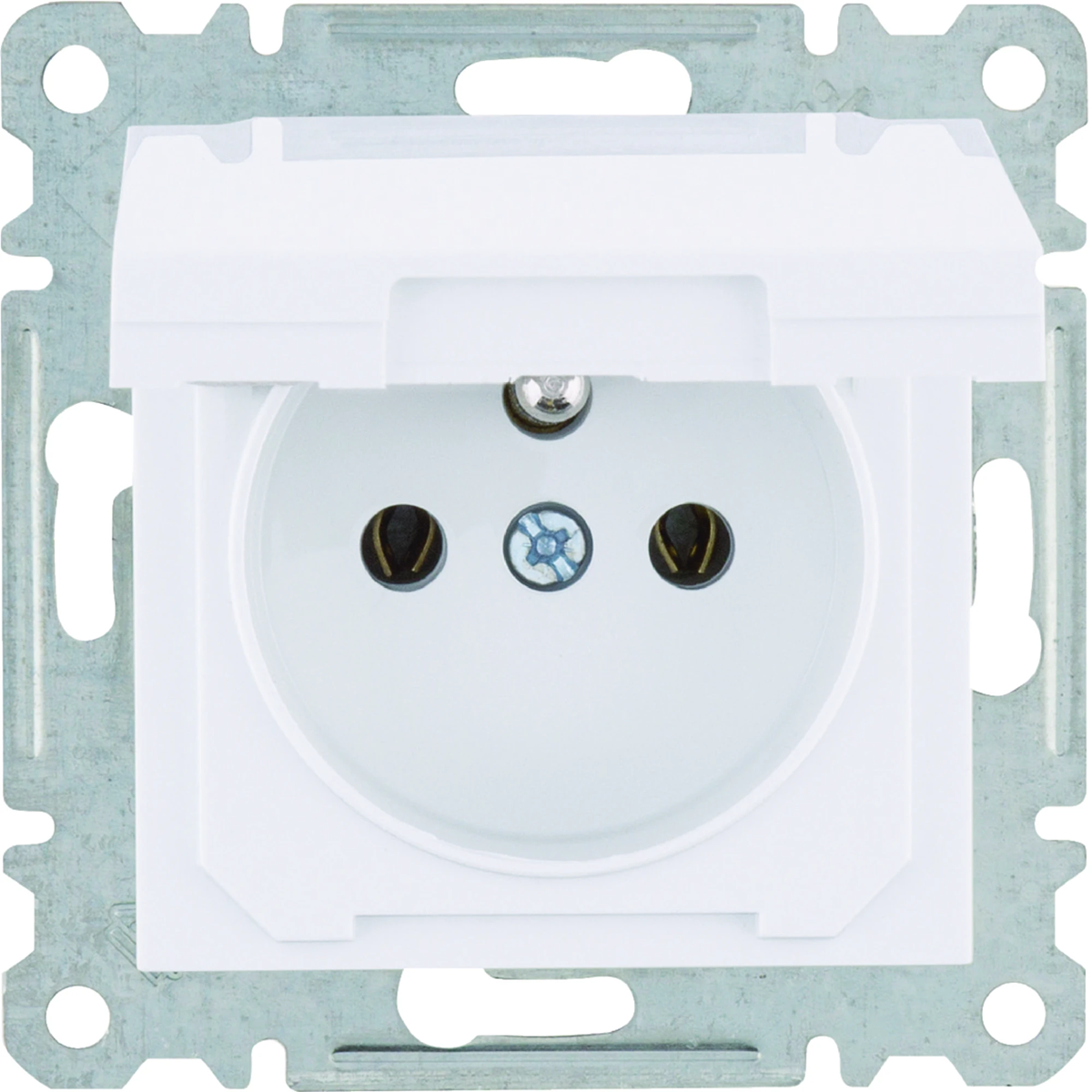

LUMINA Power socket with grounding and cover 16 A/250 VAC white
LUMINA Power socket with grounding and cover 16 A/250 VAC white

Click on the photo to enlarge

Manufacturer: HAGER
Number of sockets: 1
Color: White
Shape: Square
See full description
Price:
4,19 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 281 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Electric socket from the lumina intense series, from the manufacturer Hager. The product part number is WL1120.



FEATURES

  • 2-pole grounded.
  • With spreading claws, for screw connection.
  • Without extended contact protection.

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Mechanical resistance
    IK02
  • Rated current [A]
    16
  • Family
    LUMINA INTENSE
  • Type
    Flush-mounted
  • Degree of mechanical protection
    IK02
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Socket color
  • PKWIU
    27.33.13.0
  • Color
    White
  • Number of poles
    2
  • Fixing
    Expanding claws
  • Rated voltage [V]
    230
  • Surface
    Gloss
  • Type
    Electrical hermetic
  • Level of security
    IP20
  • Ground
    Hurt
  • Surface finish
    Shiny
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • Exact material
    Material Metal

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of modules (module system)
    0
  • Number of phases
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    White
  • Transparent
    No
  • Eject-mechanism
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Do stosowania w warunkach trudnych (wg VDE)
    No
  • Device width
    71 mm
  • Device depth
    47 mm
  • Protective contact
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • Imprint/indication
    Bez nadruku
  • With hinged lid
    Yes
  • Label space/information surface
    No
  • RAL-number (similar)
    9016
  • Lockable
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Other
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Impact strength
    IK02
  • Device height
    71 mm
  • Min. depth of built-in installation box
    35 mm

Manufacturer details

  • Manufacturer
    HAGER POLO Sp. z o. o.
  • Address
    43-100 Tychy Fabryczna 10
  • Tax identification number
    6460015532

Bulk packaging

A kind of package Karton Pakiet Paleta Karton Pakiet Paleta
Quantity 12 pcs. 120 pcs. 2400 pcs. 12 pcs. 120 pcs. 2400 pcs.
Weight (kg) 0,970 10,140 225,800 0,970 10,140 225,800
Width (m) 0,150 0,300 0,800 0,150 0,300 0,800
Length (m) 0,100 0,315 1,050 0,100 0,315 1,050
Depth (m) 0,270 0,395 1,200 0,270 0,395 1,200

Files to download

WL1120.pdf
