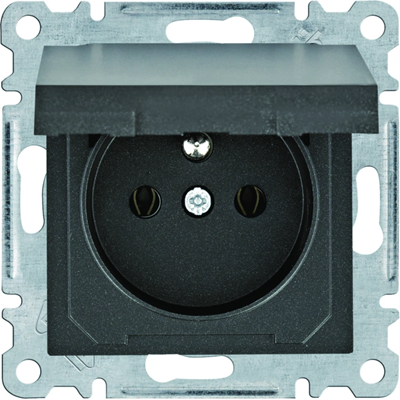

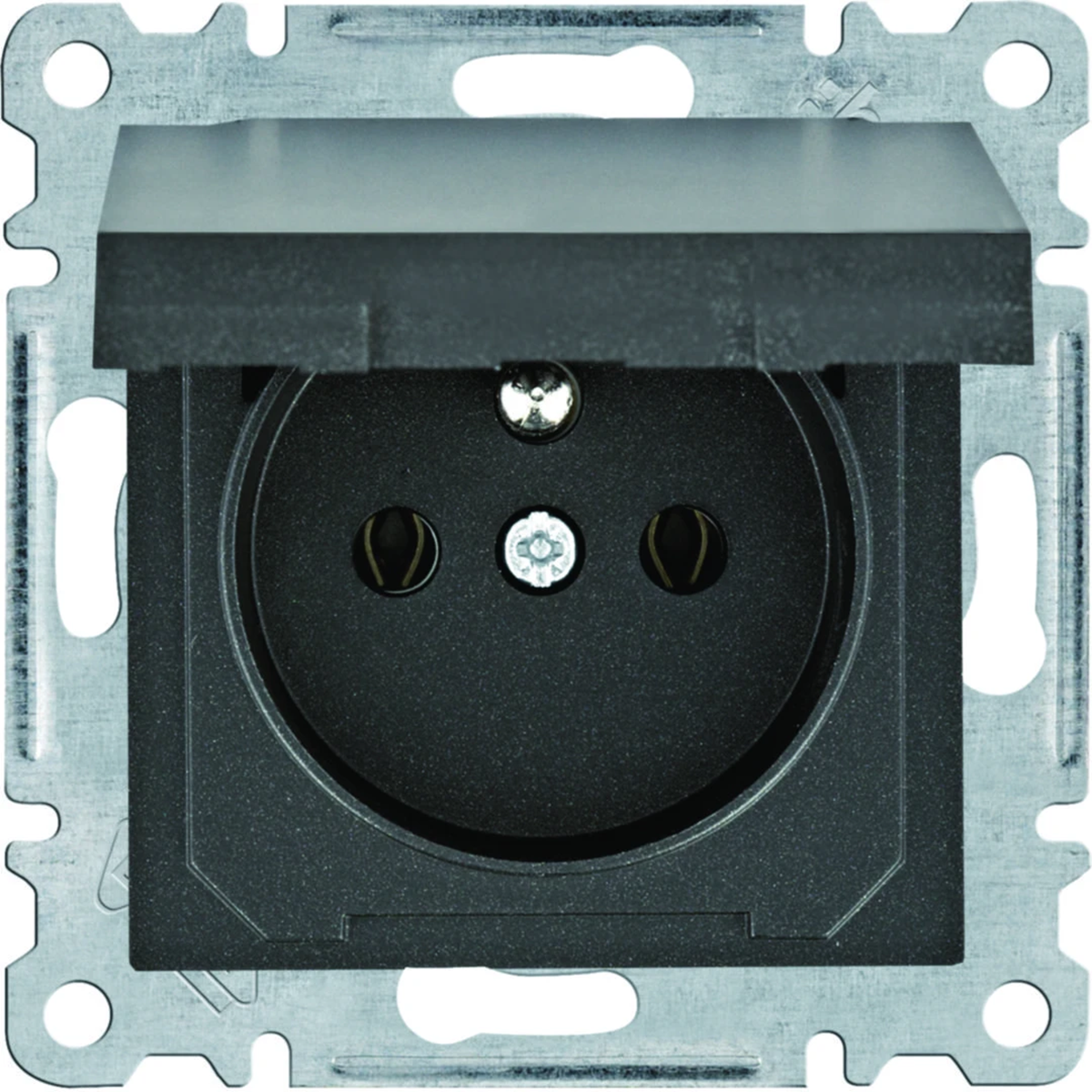

LUMINA Power socket with grounding and cover 16 A/250 VAC black WL1123

local index:
MEB010HAGE
Catalog No:
WL1123
EAN code:
8694407003447
Manufacturer: HAGER
Number of sockets: 1
Color: Black
Shape: Square
Price:
6,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 139 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electric socket from the lumina intense series, from the manufacturer Hager. The product part number is WL1123.



FEATURES

  • 2-pole grounded.
  • With spreading claws, for screw connection.
  • Without extended contact protection.

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Mechanical resistance
    IK02
  • Rated current [A]
    16
  • Family
    LUMINA INTENSE
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Surface finish
    matte
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • Exact material
    Material Metal
  • Color
    Black
  • Number of poles
    2
  • Fixing
    Expanding claws
  • Rated voltage [V]
    230
  • Surface
    Matt
  • Type
    Electrical hermetic
  • Level of security
    IP20
  • Ground
    Hurt
  • Degree of mechanical protection
    IK02
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Socket color
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of modules (module system)
    0
  • Number of phases
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    Black
  • Transparent
    No
  • Eject-mechanism
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Do stosowania w warunkach trudnych (wg VDE)
    No
  • Device width
    71 mm
  • Device depth
    32 mm
  • Protective contact
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • Imprint/indication
    Bez nadruku
  • With hinged lid
    Yes
  • Label space/information surface
    No
  • RAL-number (similar)
    9004
  • Lockable
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Other
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Impact strength
    IK02
  • Device height
    71 mm
  • Min. depth of built-in installation box
    35 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 120 pcs. 2400 pcs.
Weight (kg) 0,074 0,912 9,120 207,400
Width (m) 0,071 0,270 0,495 0,800
Length (m) 0,047 0,095 0,290 1,115
Depth (m) 0,071 0,140 0,300 1,200
