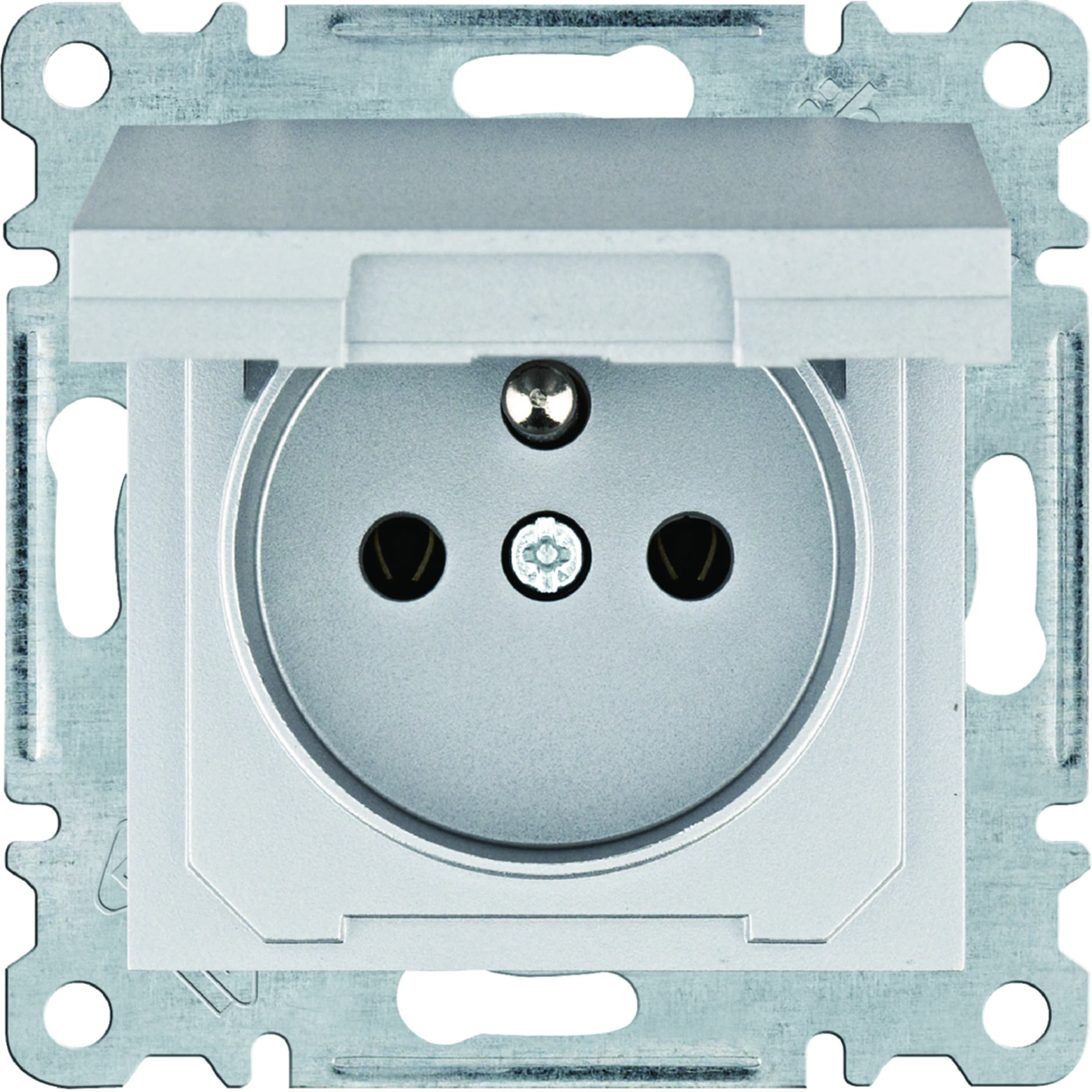

LUMINA Earthed power socket with cover 16 A/250 VAC silver WL1122
local index:
MEB009HAGE
Catalog No:
WL1122
EAN code:
8694407003430
Price:
6,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electric socket from the lumina intense series, from the manufacturer Hager. The product part number is WL1122.
FEATURES
- 2-pole grounded.
- With spreading claws, for screw connection.
- Without extended contact protection.
Technical data
-
Number of sockets1
-
ShapeSquare
-
MaterialPlastic
-
InstallationFlush-mounted
-
Mechanical resistanceIK02
-
Rated current [A]16
-
FamilyLUMINA INTENSE
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
Surface finishmatte
-
BacklightNO
-
StandardEuropean
-
On the DATA keyNO
-
Lid colorSocket color
-
PKWIU27.33.13.0
-
ColorSilver
-
Number of poles2
-
FixingExpanding claws
-
Rated voltage [V]230
-
SurfaceMatt
-
TypeElectrical hermetic
-
Level of securityIP20
-
GroundHurt
-
Degree of mechanical protectionIK02
-
Accurate colorAnodized aluminum
-
Terminal typeThreaded
-
Shutters of current pathsNO
-
For the frame systemYes
-
Exact materialMaterial Metal
Other technical data
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Number of active contacts (round)2
-
With signal lampNo
-
Number of modules (module system)0
-
Number of phases1
-
With hinged lidYes
-
Label space/information surfaceNo
-
RAL-number (similar)9006
-
LockableNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialOther
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Suitable for degree of protection (IP)IP20
-
Device width71 mm
-
Device depth32 mm
-
Protective contactYes
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of socket outlets switchable0
-
Connection typeScrewed terminal
-
With enhanced contact protectionNo
-
ColourSilver
-
TransparentNo
-
Eject-mechanismNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw and screw
-
Halogen freeYes
-
Surface finishingMatt
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK02
-
Device height71 mm
-
Min. depth of built-in installation box35 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 12 pcs. | 120 pcs. | 2400 pcs. |
| Weight (kg) | 0,074 | 0,912 | 9,120 | 207,400 |
| Width (m) | 0,071 | 0,270 | 0,475 | 0,800 |
| Length (m) | 0,047 | 0,095 | 0,235 | 1,090 |
| Depth (m) | 0,071 | 0,140 | 0,390 | 1,200 |
