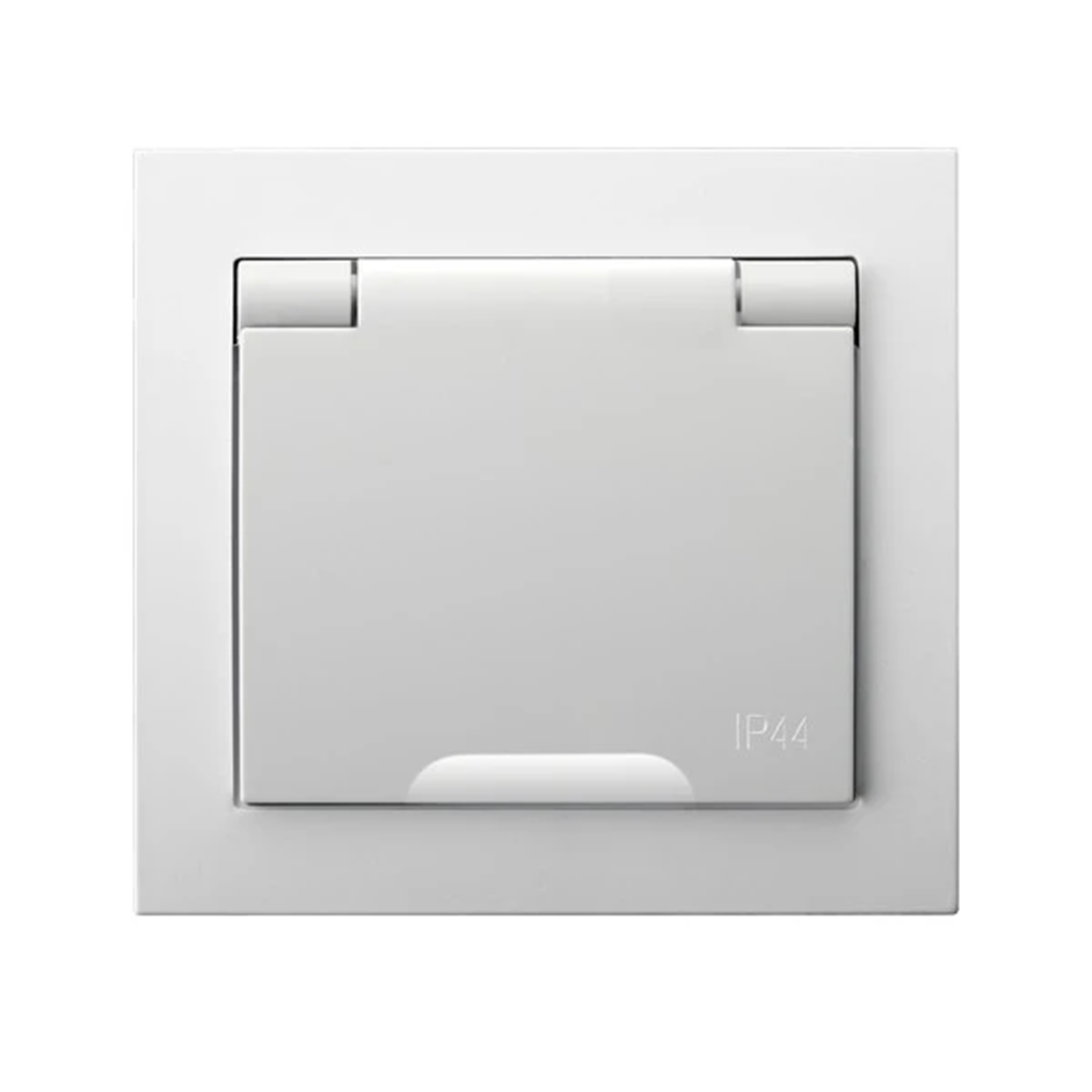

KIER Splashproof socket with grounding and shutters for current paths, white GPH-1WSP/00/W

local index:
MEB152OSPE
Catalog No:
GPH-1WSP/00/W
EAN code:
5907577463076
Manufacturer: OSPEL
Depth [mm]: 45
Number of sockets: 1
Color: White
Price:
6,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Hermetic electric socket from the Kier series, from Ospel. The product part number is GPH-1WSP/00/W.



FEATURES

  • Z grounding SCHUKO.
  • With shutters for current paths.
  • Complete product.
  • < li>Socket color white.
  • Lid white.
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP44.
  • Mounting flush.



SERIES DESCRIPTION

The Kier series consists of modern compact products. Composing electrical installation solutions is very simple, and available the assortment will allow you to create interiors equipped with all amenities. The hermetic electrical socket has all the features of this unique series.

Technical data

  • Depth [mm]
    45
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    DIR
  • Width [mm]
    88
  • Ground
    schuko
  • Surface protection
    Natural
  • Mounting depth [mm]
    27
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Socket color
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Shape
    Rectangular
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP44
  • Type
    Flush-mounted
  • Height [mm]
    83
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    NO
  • Exact material
    Plastic Metal

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    no
  • Number of modules (module system)
    0
  • Imprint/indication
    Degree of protection (IP)
  • With hinged lid
    yes
  • Label space/information surface
    no
  • RAL-number (similar)
    9003
  • Lockable
    yes
  • Insulated mounting
    no
  • With orientation lighting
    no
  • Fault current protection
    no
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    no
  • With loop through function
    no
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Suitable for degree of protection (IP)
    IP44
  • Device width
    88 mm
  • Device depth
    45 mm
  • Protective contact
    yes
  • Number of active contacts (round)
    1
  • With signal lamp
    no
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    no
  • Colour
    White
  • Transparent
    no
  • Eject-mechanism
    no
  • With function lighting
    no
  • Over voltage protection
    no
  • With miniature fuse
    no
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    yes
  • Surface finishing
    Glossy
  • With on/off switch
    no
  • Rotated central insert
    no
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    83 mm
  • Min. depth of built-in installation box
    60 mm
