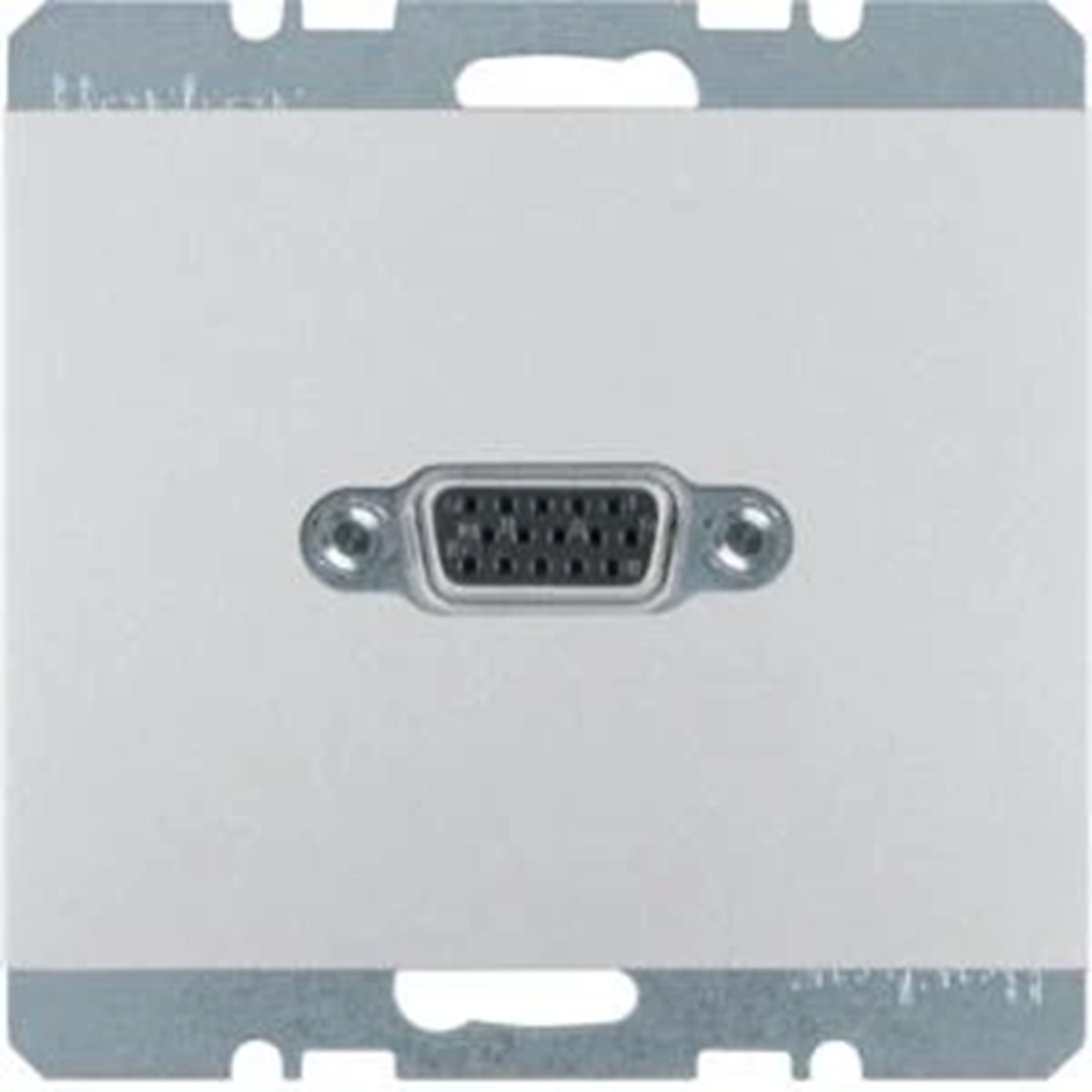

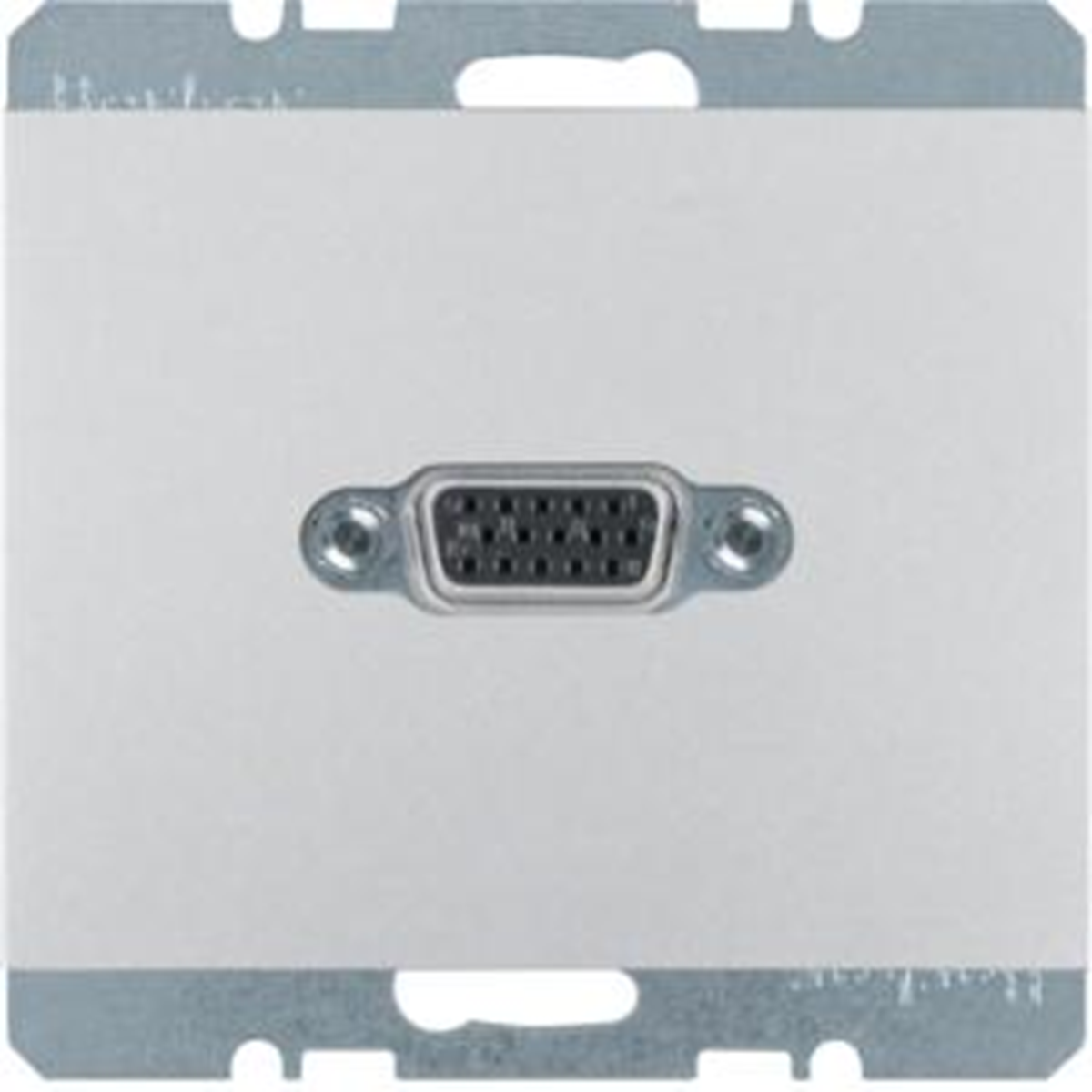

K.5 VGA socket with aluminum screw terminals

Click on the photo to enlarge

K.5 VGA socket with aluminum screw terminals
BERKER

K.5 VGA socket with aluminum screw terminals 3315417003

local index:
MEH023BERK
Catalog No:
3315417003
EAN code:
4011334378358
Price:
66,33 €
gross / pcs.
including VAT 23%
Availability:
up to 10 weeks (business days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

VGA socket from the K.5 series, from the manufacturer Berker. The product part number is 3315417003.



FEATURES

  • Single.
  • With straight-through output.
  • S-VGA compatible.
  • With 15-pin D-sub (front).
  • Video frequency range:  maximum 160 MHz.
  • Resolution: maximum 1280 x 1024 px.
  • Without spreader legs, for screw connection.
  • With screw-clamp terminals for connecting a 15-wire VGA cable.
  • With support ring.
  • For connecting PCs and laptops to display devices, e.g. monitors (LCD) and  projectors.
Print the product sheet Report an error

Technical data

  • Number of sockets
    1
  • Shape
    Rectangular
  • Installation
    Flush-mounted
  • Family
    K.5
  • Level of security
    IP20
  • Surface protection
    varnishing
  • Maximum conductor cross-section [mm²]
    1.5
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • Color
    Silver
  • Material
    Metal
  • Type
    HDMI / VGA
  • Resolution [px]
    1280 x 1024
  • Type
    Flush-mounted
  • Surface finish
    matte
  • Accurate color
    Aluminum
  • Variant
    VGA
  • Exact material
    Aluminum

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • With dust cover
    no
  • Outlet direction
    Straight
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Surface protection
    Lacquered
  • Colour
    Aluminium
  • Transparent
    no
  • With buses/couplings
    yes
  • With strain relief
    no
  • Luster terminal
    no
  • Device width
    71 mm
  • Device depth
    23.5 mm
  • Support ring
    yes
  • With hinged lid
    no
  • Imprintable label
    Without indication field
  • Material
    Other
  • Halogen free
    yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9006
  • Type of fastening
    Mounting with screw
  • Suitable for number of connectors
    1
  • Shielded buses
    yes
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    13 mm
