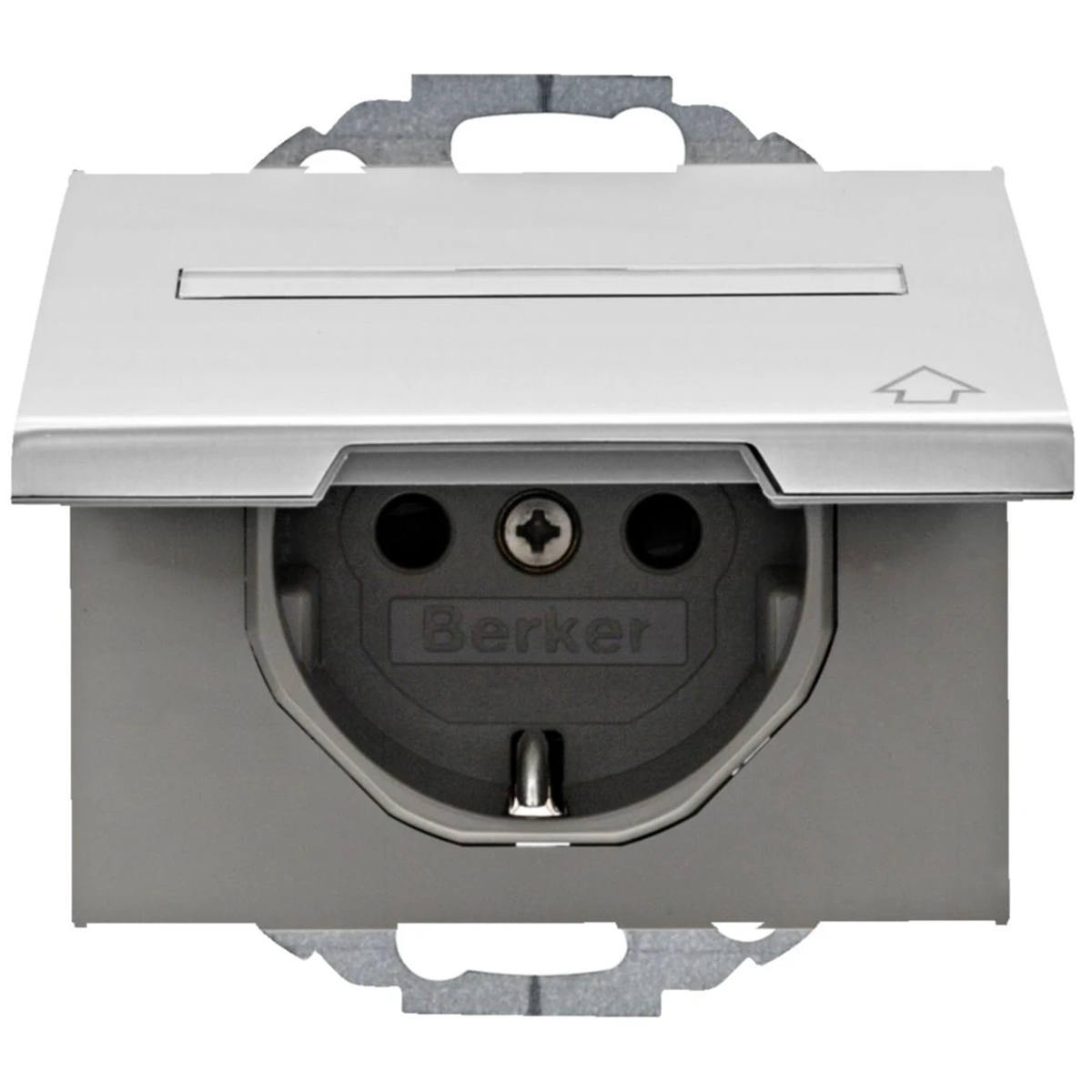

K.5 SCHUKO socket with aluminum cover and description field 47487103
Indice locale:
MEB014BERK
Numero di catalogo:
47487103
Codice EAN:
4011334378495
Prezzo:
145,46 zł
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa
Chiedi informazioni sul prodotto
Descrizione del prodotto
SCHUKO earthed socket, with a cover and a description field, from the Berker K.5 series, i.e. simple forms enclosed in high-quality metal, which will work well in modern interiors .
- selection of the position of the built-in mechanism in steps of 45°
- height of the description field adapted to 6 mm P-touch strips
Dati tecnici
-
Depth [mm]47.5
-
ColorSilver
-
MaterialMetal
-
InstallationFlush-mounted
-
Descriptive fieldYes
-
TypeElectrical hermetic
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate colorAluminum
-
Mounting depth [mm]32
-
StandardEuropean
-
On the DATA keyNO
-
Lid colorSocket color
-
PKWIU27.33.13.0
-
Number of sockets1
-
ShapeSquare
-
FixingExpanding claws
-
Rated voltage [V]230
-
Rated current [A]16
-
FamilyK.5
-
Width [mm]71
-
Groundschuko
-
Surface finishmatte
-
BacklightNO
-
Terminal typeThreadless
-
Shutters of current pathsYes
-
For the frame systemYes
-
Exact materialAluminum
Altri dati tecnici
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Okrągły styk ochronnyNo
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of socket outlets switchable0
-
Imprint/indicationOther
-
With hinged lidYes
-
Label space/information surfaceYes
-
RAL-number (similar)9006
-
LockableNo
-
Insulated mountingYes
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw and screw
-
Halogen freeYes
-
Surface finishingMatt
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP20
-
Device width71 mm
-
Device depth47.5 mm
-
Protective contactYes
-
Number of active contacts (round)2
-
With signal lampNo
-
Number of units1
-
Number of phases1
-
Connection typePush-in clamp
-
With enhanced contact protectionYes
-
ColourAluminium
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialMetal
-
Surface protectionAnodised
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Impact strengthIK07
-
Device height71 mm
-
Min. depth of built-in installation box35 mm
Dettagli del produttore
-
ProduttoreBerker GmbH & Co. KG.
-
IndirizzoDE 66440 Blieskastel Zum Gunterstal Niemcy
Imballaggio sfuso
| Una specie di pacchetto | Karton | Pakiet | Paleta |
| Quantità | 10 pezzi | 40 pezzi | 1280 pezzi |
| Peso (kg) | 1,000 | 4,000 | 128,000 |
| Larghezza (m) | 0,160 | 0,300 | 0,800 |
| Lunghezza (m) | 0,070 | 0,220 | 1,050 |
| Profondità (m) | 0,380 | 0,400 | 1,200 |
