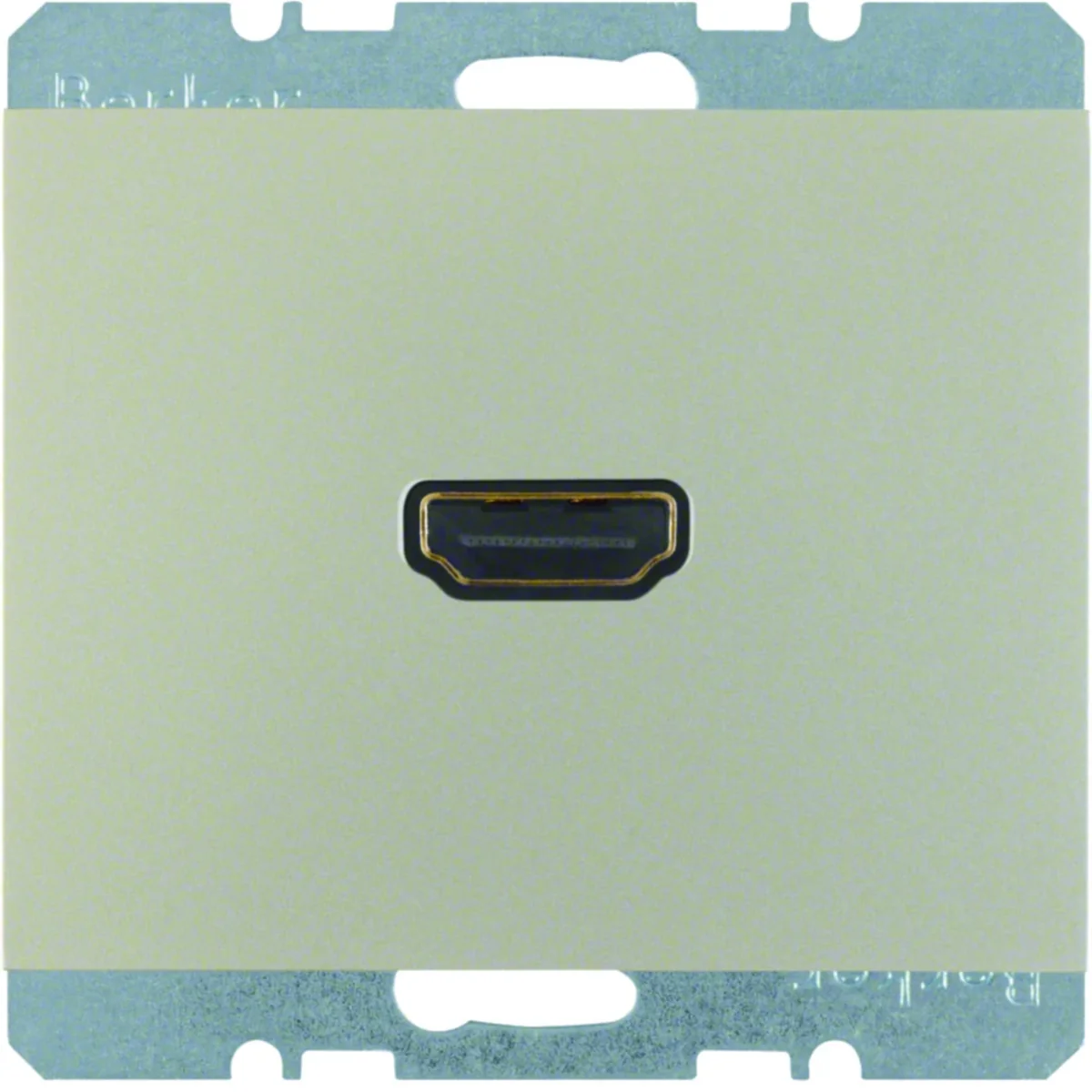

K.5 HDMI socket with 90° connection, varnished stainless steel 3315437004

local index:
MEH052BERK
Catalog No:
3315437004
EAN code:
4011334330691
Manufacturer: BERKER
Number of sockets: 1
Color: Silver
Shape: Rectangular
Price:
141,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

HDMI socket from the K.5 series, from the manufacturer Berker. The product part number is 3315437004.



FEATURES

  • With 90 angle connection°.
  • With straight output.
  • 19-pin.
  • With HDMI™ type A.
  • Frequency range (vertical polarization): 50…85 Hz.
  • Resolution: up to 1920 x 1080 px.
  • Transmission speed : maximum 8.16 Gbit/s.
  • Gold-plated contacts.
  • Without spreaders, for screw connection.
  • For connecting digital devices to transmission of high definition audio and video signals, e.g. from a satellite receiver, DVD or BD player to an LCD or plasma screen.

Technical data

  • Number of sockets
    1
  • Shape
    Rectangular
  • Installation
    Flush-mounted
  • Family
    K.5
  • Level of security
    IP20
  • Surface protection
    varnishing
  • Accurate color
    stainless steel
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Color
    Silver
  • Material
    Metal
  • Type
    HDMI / VGA
  • Resolution [px]
    1920x1080
  • Type
    Flush-mounted
  • Surface finish
    matte
  • Variant
    HDMI
  • Exact material
    stainless steel

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Support ring
    Yes
  • With hinged lid
    No
  • Imprintable label
    Without indication field
  • Material
    Other
  • Halogen free
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    9022
  • Type of fastening
    Mounting with screw
  • Suitable for number of connectors
    1
  • Shielded buses
    Yes
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    18 mm
  • Utilization
    HDMI
  • With dust cover
    No
  • Outlet direction
    Straight
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Surface protection
    Lacquered
  • Colour
    Stainless steel
  • Transparent
    No
  • With buses/couplings
    Yes
  • With strain relief
    No
  • Luster terminal
    No
  • Device width
    71 mm
  • Device depth
    28.3 mm

Bulk packaging

A kind of package Karton
Quantity 1 pcs. 10 pcs.
Weight (kg) 0,061 0,680
Width (m) 0,071 0,154
Length (m) 0,038 0,078
Depth (m) 0,071 0,292
