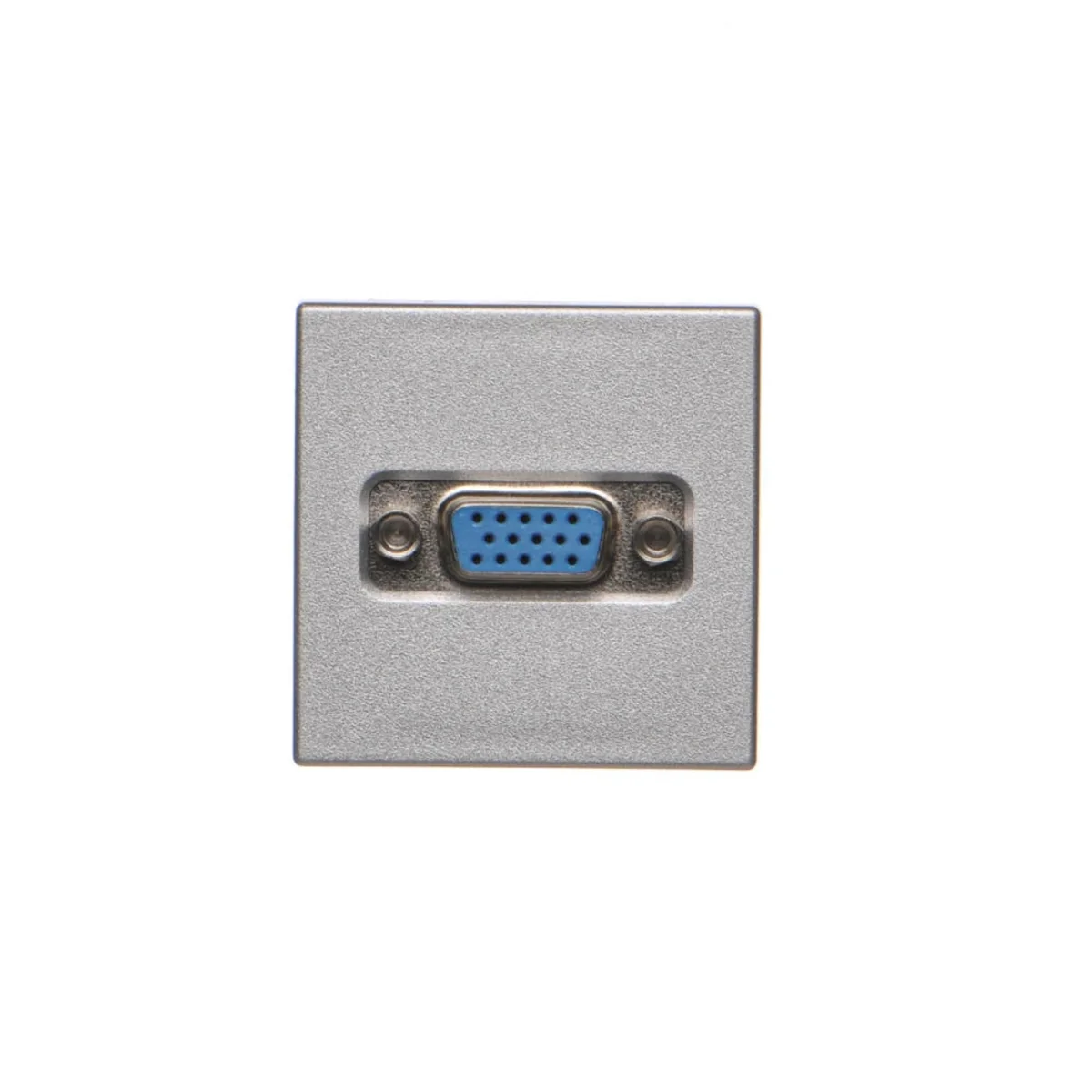

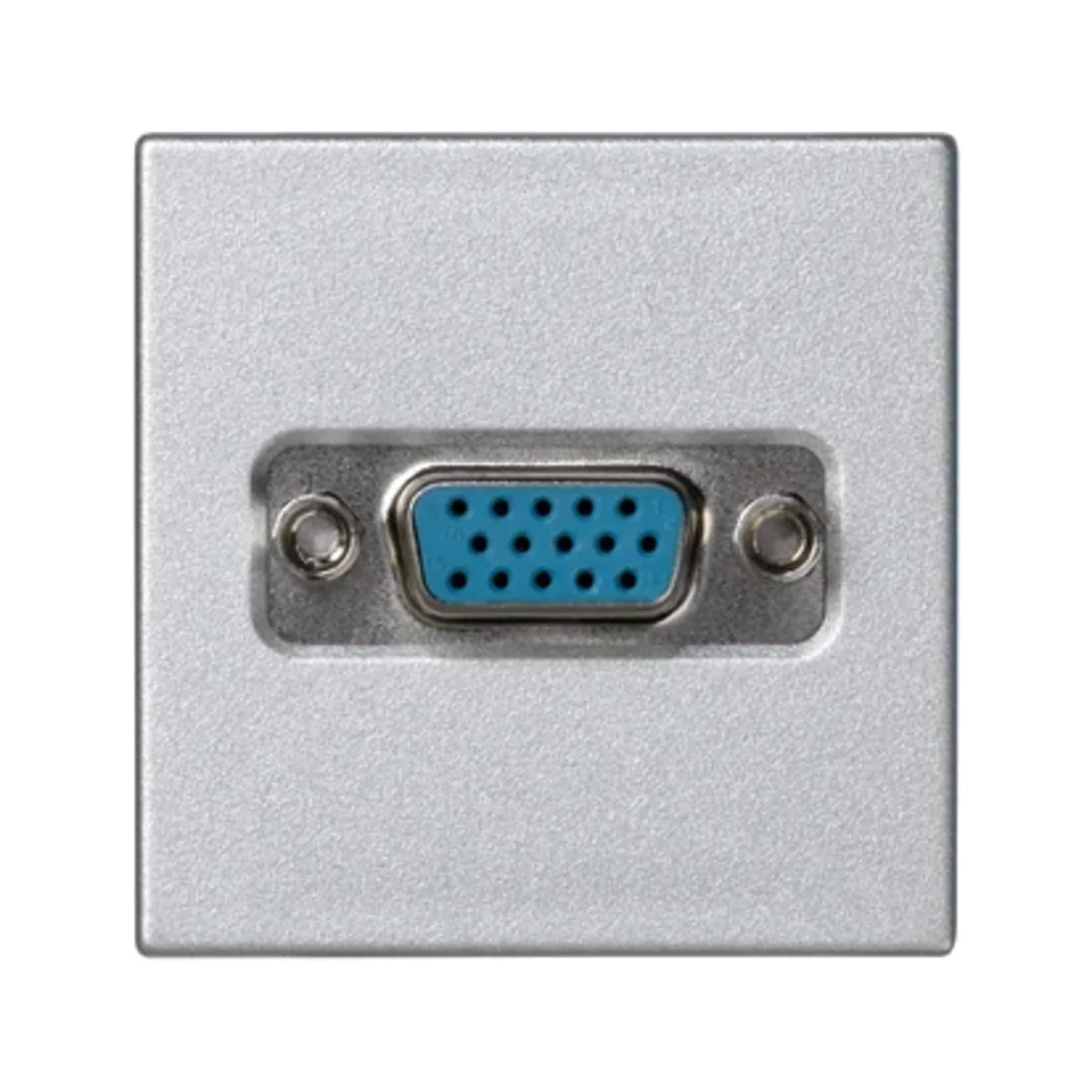

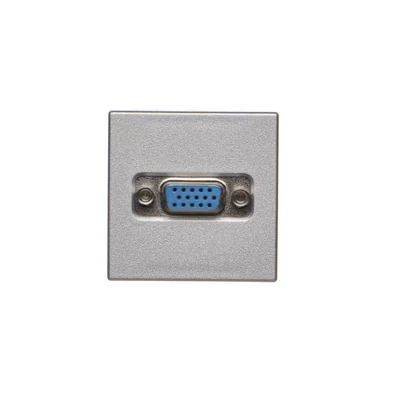

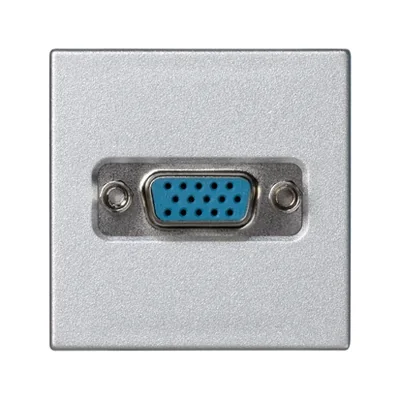

K45 Board with VGA connector (D-Sub 15) 45x45mm + aluminum insert K100B/8

local index:
MGH001KONT
Catalog No:
K100B/8
EAN code:
8426436058941
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 22
Number of sockets: 1
Price:
20,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

VGA socket standard K45, from the manufacturer Contact Simon. The product part number is K100B/8.



FEATURES

  • VGA connector (D-SUB 15 ).
  • Complete product.
  • Installation dimensions: 45 × 45 mm.



SERIES DESCRIPTION

VGA socket K45 strong> has been designed so that it can be used in various installations, such as floor boxes, columns or installation ducts.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    1
  • Shape
    Square
  • Installation
    Snaps
  • Family
    K45
  • Width [mm]
    45
  • Height [mm]
    45
  • Surface finish
    matte
  • Mounting depth [mm]
    17

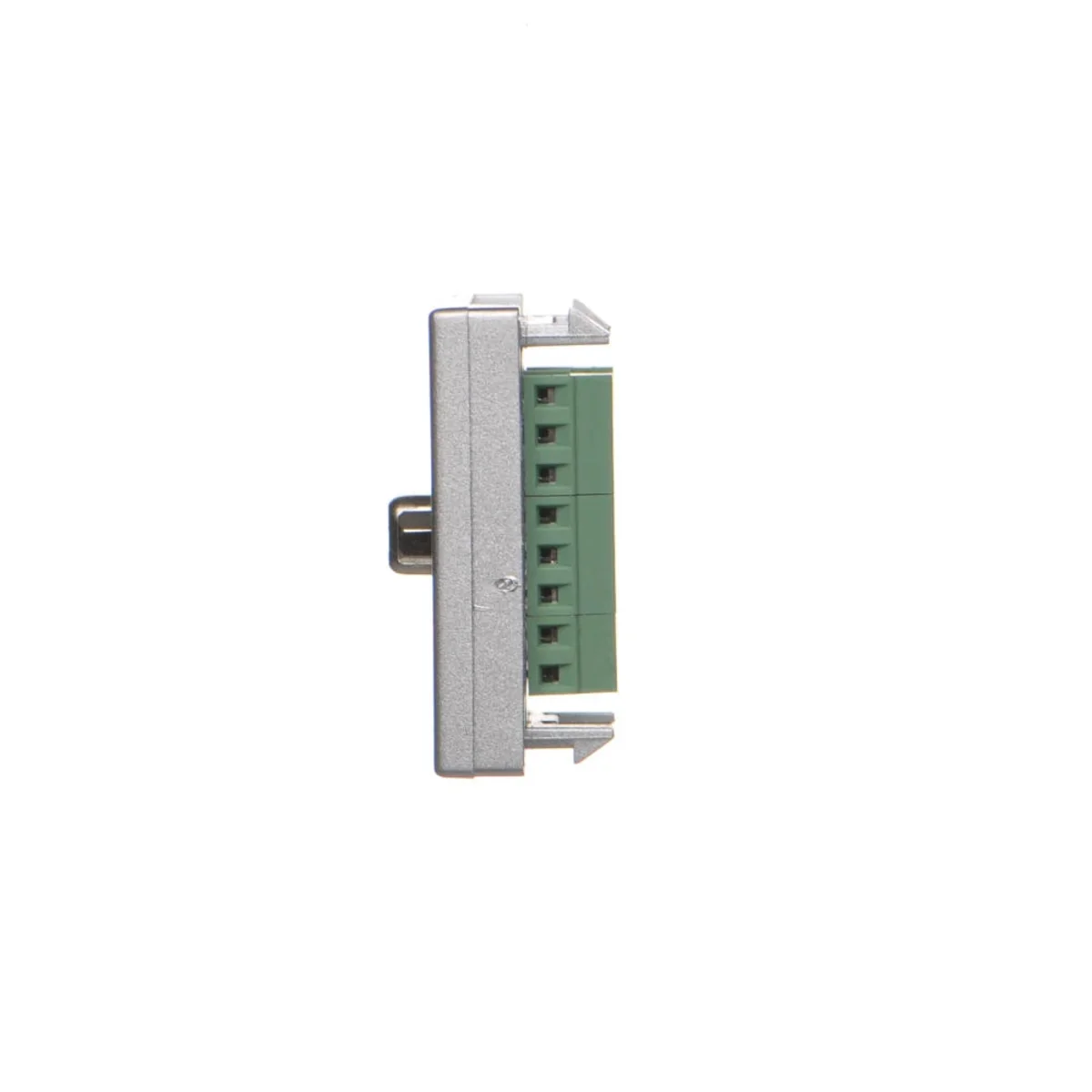

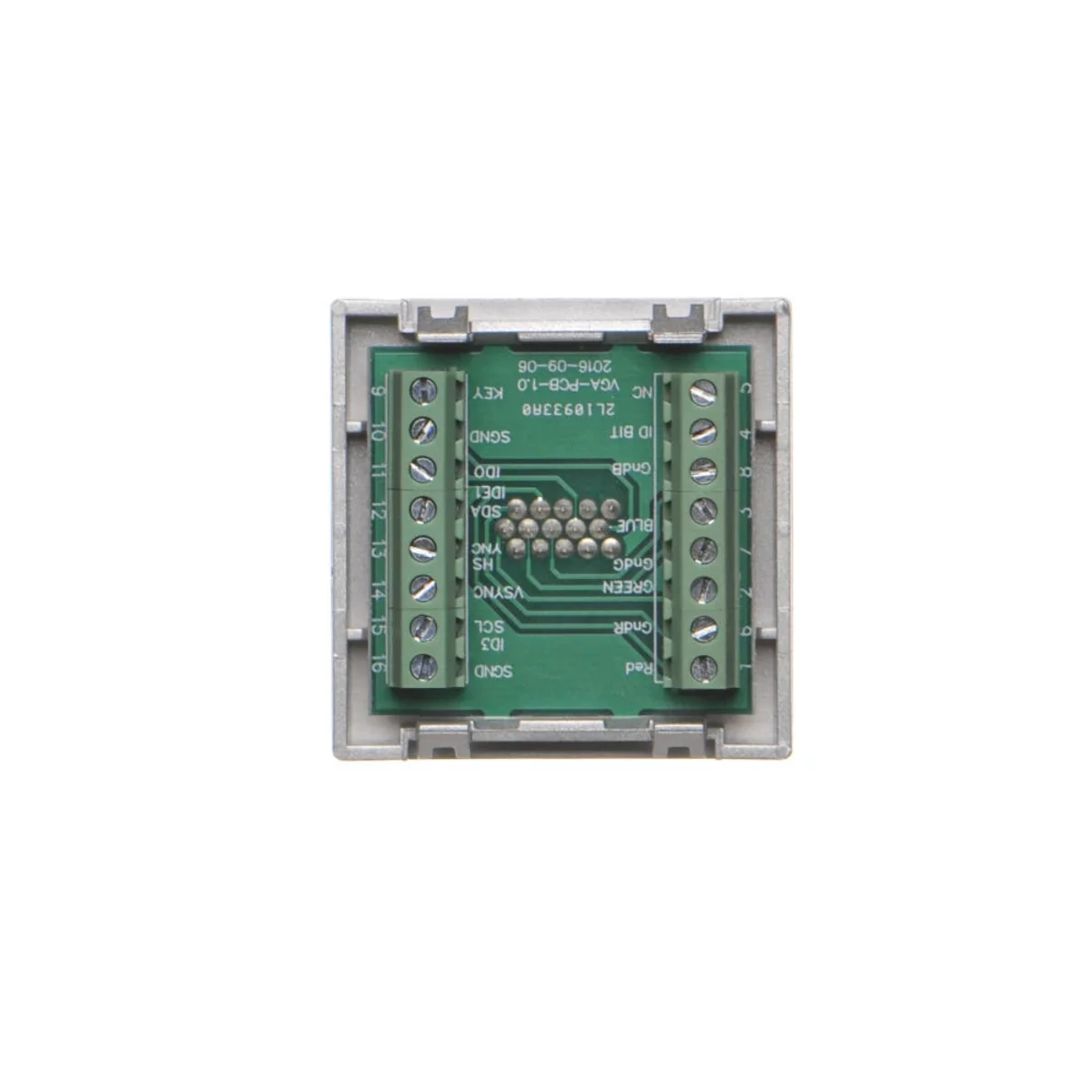

  • Terminal type
    Threaded
  • For the frame system
    Yes
  • Depth [mm]
    22
  • Color
    Silver
  • Material
    Plastic
  • Type
    HDMI / VGA
  • Level of security
    IP20
  • Type
    45x45
  • Surface protection
    varnishing
  • Accurate color
    Aluminum
  • Mounting direction
    Vertical
  • Variant
    VGA
  • PKWIU
    27.33.13.0

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Material
    Plastic
  • Surface finishing
    Matt
  • Suitable for degree of protection (IP)
    IP20
  • Utilization
    VGA
  • Surface protection
    Lacquered
  • Colour
    Aluminium

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 1 pcs.
Weight (kg) 0,035 0,035 -
Width (m) 0,045 - 0,105
Length (m) 0,045 - 0,220
Depth (m) 0,022 - 0,052
