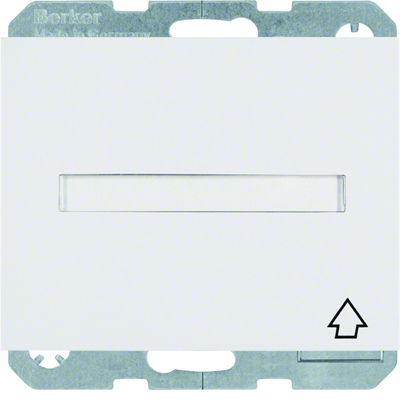

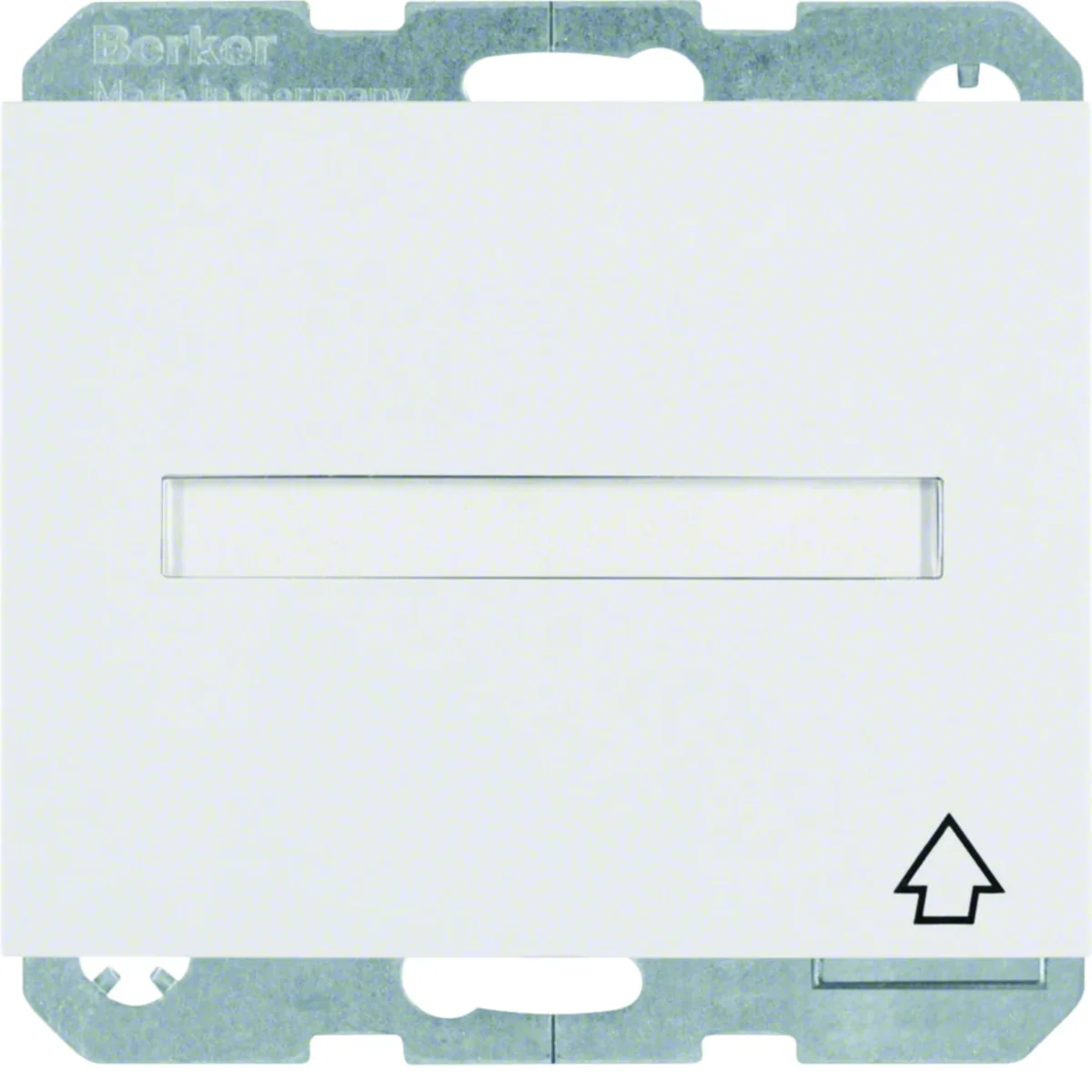

K.1 SCHUKO socket with self-closing cover and description field IP44 white 47527209

Name: K.1 SCHUKO socket with self-closing cover and description field IP44 white
Brand: BERKER
SKU: MEB040BERK
Price: 23.37 PLN

Lokaler Index:

MEB040BERK

Katalognummer:

47527209

EAN-Code:

4011334275855

K.1 SCHUKO socket with self-closing cover and description field IP44 white

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: BERKER

Depth [mm]: 47.5

Number of sockets: 1

Color: White

Siehe vollständige Beschreibung

Preis:

23,37 €

gross / stk.

(inklusive MwSt 23%)

Lieferung in 3h

bis zu 10 Wochen (Arbeitstage)

Abholung in 1 Stunde

Menge stk.

(mehrere:

)

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

Socket with earthing SCHUKO, with a self-closing cover and description field, from the Berker K.1 series, i.e. simple forms enclosed in high-quality metal, which will prove useful in modern interiors.

Connection:

with plug-in terminals.

Installation / Assembly :

with expansion lugs.

Additional information:

especially suitable for the combination of multiple sockets using angled plugs,
the height of the labeling field is adapted to 6mm P-touch strips.

Application:

concealed installation for wet rooms.

Technische Daten

Depth [mm]

47.5
Color

White
Material

Plastic
Installation

Flush-mounted
Descriptive field

Yes
Type

Electrical hermetic
Level of security

IP44
Type

Flush-mounted
Height [mm]

71
Surface finish

Shiny
Backlight

NO
Terminal type

Threadless
Shutters of current paths

Yes
For the frame system

Yes
Additional information

Self-closing lid
PKWIU

27.33.13.0

Number of sockets

1
Shape

Square
Fixing

Expanding claws
Rated voltage [V]

230
Rated current [A]

16
Family

K.1
Width [mm]

71
Ground

schuko
Degree of mechanical protection

IK05
Accurate color

Snow white
Mounting depth [mm]

32
Standard

European
On the DATA key

NO
Lid color

Socket color
Exact material

Thermoplastic

Weitere technische Daten

Model

Protective contact CEE 7/3 / CEE 7/4 (type F)
Okrągły styk ochronny

No
Number of active contacts (flat)

0
With built-in USB power supply

No
Number of socket outlets switchable

0
Connection type

Push-in clamp
With enhanced contact protection

Yes
Colour

White
Transparent

No
Eject-mechanism

No
With function lighting

No
Over voltage protection

No
With miniature fuse

No
Mounting method

Flush-mounted
Material

Plastic
Surface protection

Untreated
Anti-bacterial treatment

No
With loop through function

No
Nominal current

16 A
Frequency

50 ... 60 Hz
Impact strength

IK05
Device height

71 mm
Min. depth of built-in installation box

35 mm

Protective contact

Yes
Number of active contacts (round)

2
With signal lamp

No
Number of units

1
Number of phases

1
With hinged lid

Yes
Label space/information surface

No
RAL-number (similar)

9010
Lockable

No
Insulated mounting

Yes
With orientation lighting

No
Fault current protection

No
Special power supply

No special power supply
Type of fastening

Mounting with claw and screw
Halogen free

Yes
Surface finishing

Glossy
With on/off switch

No
Rotated central insert

No
Nominal voltage

250 V
Suitable for degree of protection (IP)

IP44
Device width

71 mm
Device depth

47.5 mm

Hersteller-Details

Hersteller

HAGER POLO Sp. z o. o.
Adresse

43-100 Tychy Fabryczna 10
Steueridentifikationsnummer

6460015532

Großpackungen

Eine Art Paket	Karton	Pakiet	Paleta
Menge	10 stk.	40 stk.	1280 stk.
Gewicht (kg)	0,995	4,433	161,859
Breite (m)	0,160	0,300	0,800
Länge (m)	0,069	0,225	1,050
Tiefe (m)	0,385	0,400	1,200
