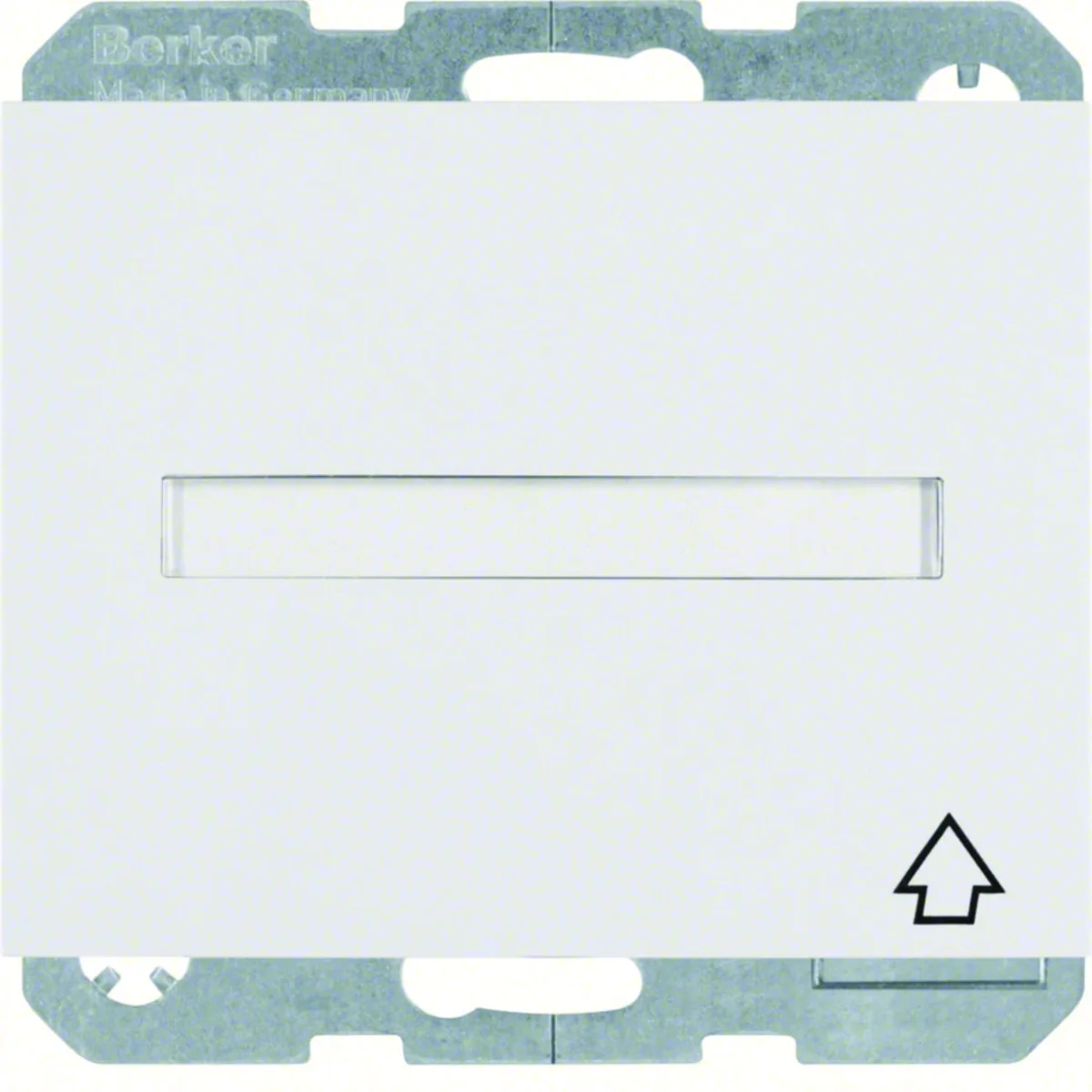

K.1 SCHUKO socket with cover and description field white 47527109
Index local:
MEB036BERK
Numéro de catalogue:
47527109
Code EAN:
4011334268536
Prix:
103,63 zł
gross / pcs.
(y compris la TVA 23%)
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer
Renseignez-vous sur le produit
Description du produit
Données techniques
Détails du fabricant
Emballage en vrac
Fichiers à télécharger
Description du produit
Socket with earthing SCHUKO, with a cover and a description field, from the Berker K.1 series, i.e. simple forms enclosed in high-quality metal, which will work in modern interiors .
Connection:
- with plug-in terminals.
Installation / Mounting:< /strong>
- with expansion lugs.
Additional information:
- suitable especially for the combination of multiple sockets using angled plugs,
- the height of the labeling field is adapted to 6mm P-touch strips,
- the possibility of locking the cover when opening it in the end position.
Données techniques
-
Depth [mm]47.5
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Descriptive fieldYes
-
TypeElectrical hermetic
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]71
-
Surface finishShiny
-
BacklightNO
-
Terminal typeThreadless
-
Shutters of current pathsYes
-
For the frame systemYes
-
Exact materialThermoplastic
-
Number of sockets1
-
ShapeSquare
-
FixingExpanding claws
-
Rated voltage [V]230
-
Rated current [A]16
-
FamilyK.1
-
Width [mm]71
-
Groundschuko
-
Degree of mechanical protectionIK05
-
Accurate colorSnow white
-
Mounting depth [mm]32
-
StandardEuropean
-
On the DATA keyNO
-
Lid colorSocket color
-
PKWIU27.33.13.0
Autres données techniques
-
Number of active contacts (round)2
-
With signal lampNo
-
Number of socket outlets switchable0
-
Imprint/indicationNone
-
Label space/information surfaceYes
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Surface finishingGlossy
-
With loop through functionNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Device width71 mm
-
Min. depth of built-in installation box35 mm
-
Compatible with Amazon AlexaNo
-
IFTTT support availableNo
-
Number of active contacts (flat)0
-
Number of modules (module system)1
-
Number of phases1
-
With hinged lidYes
-
RAL-number (similar)9010
-
LockableNo
-
Insulated mountingYes
-
With orientation lightingNo
-
Fault current protectionNo
-
Halogen freeYes
-
Anti-bacterial treatmentNo
-
With on/off switchNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Device height71 mm
-
Compatible with Apple HomeKitNo
-
Compatible with Google AssistantNo
-
For heavy conditions according to VDENo
Détails du fabricant
-
ProducteurBerker GmbH & Co. KG.
-
AdresseDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-mail
Emballage en vrac
| Une sorte de paquet | Karton | Pakiet | Paleta |
| Quantité | 10 pcs. | 40 pcs. | 1280 pcs. |
| poids (kg) | 1,005 | 4,473 | 163,139 |
| Largeur (m) | 0,160 | 0,300 | 0,800 |
| Longueur (m) | 0,060 | 0,220 | 1,050 |
| Profondeur (m) | 0,380 | 0,400 | 1,200 |
