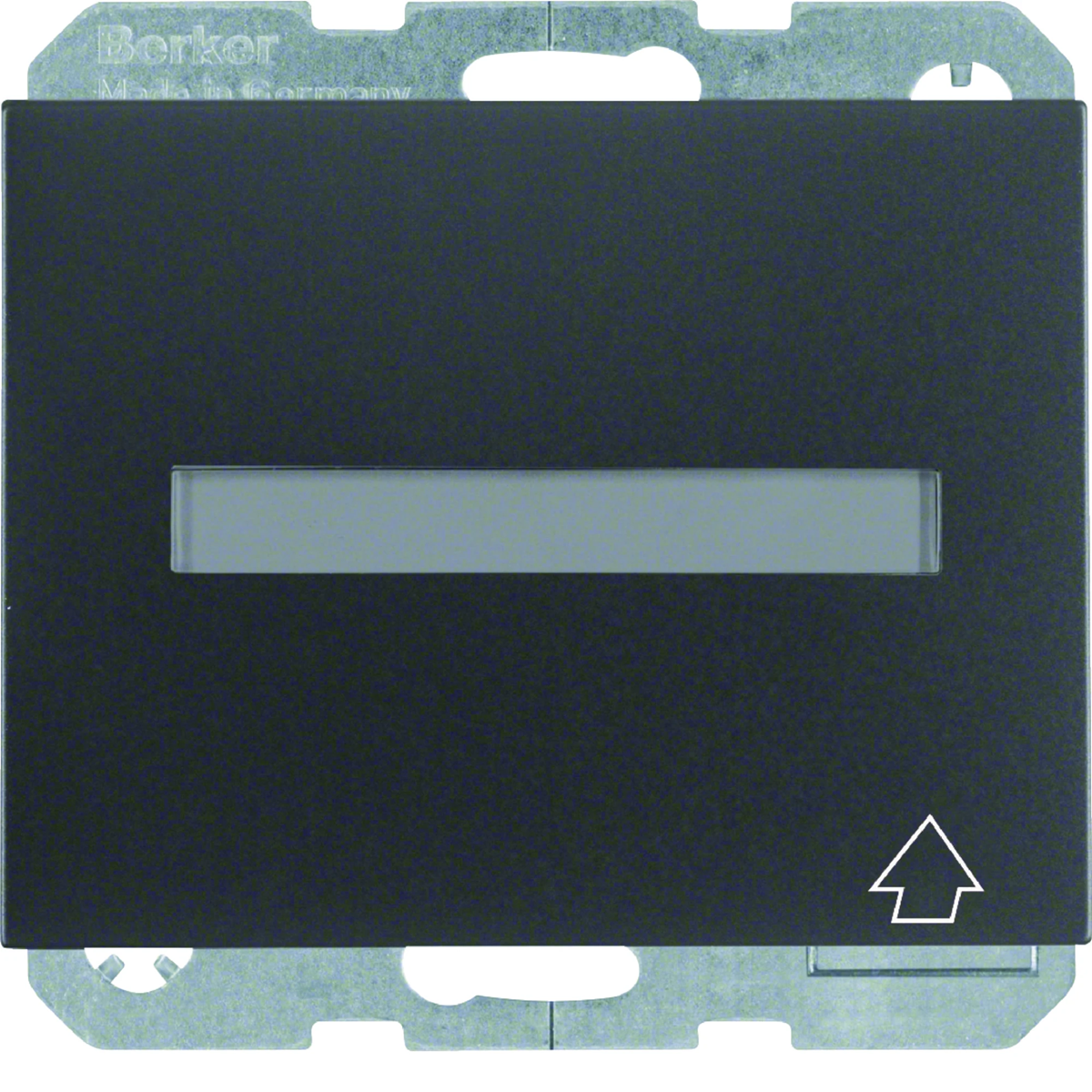

K.1 SCHUKO socket with a self-closing cover and description field IP44 anthracite matt varnished 47527206
local index:
MEB039BERK
Catalog No:
47527206
EAN code:
4011334296409
Price:
24,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Socket with earthing SCHUKO, with a self-closing cover and description field, from the Berker K.1 series, i.e. simple forms enclosed in high-quality metal, which will prove useful in modern interiors.
Connection:
- with plug-in terminals.
Installation / Assembly :
- with expansion lugs.
Additional information:
- especially suitable for the combination of multiple sockets using angled plugs,
- the height of the labeling field is adapted to 6mm P-touch strips.
Application:
- concealed installation for wet rooms.
Technical data
-
Depth [mm]47.5
-
ColorGraphite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Descriptive fieldYes
-
TypeElectrical hermetic
-
Level of securityIP44
-
TypeFlush-mounted
-
Height [mm]71
-
Degree of mechanical protectionIK05
-
Accurate colorAnthracite
-
Mounting depth [mm]32
-
StandardEuropean
-
On the DATA keyNO
-
Lid colorSocket color
-
Exact materialThermoplastic
-
Number of sockets1
-
ShapeSquare
-
FixingExpanding claws
-
Rated voltage [V]230
-
Rated current [A]16
-
FamilyK.1
-
Width [mm]71
-
Groundschuko
-
Surface protectionvarnishing
-
Surface finishmatte
-
BacklightNO
-
Terminal typeThreadless
-
Shutters of current pathsYes
-
For the frame systemYes
-
Additional informationSelf-closing lid
-
PKWIU27.33.13.0
Other technical data
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Okrągły styk ochronnyNo
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of socket outlets switchable0
-
Connection typePush-in clamp
-
With enhanced contact protectionYes
-
ColourAnthracite
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Impact strengthIK05
-
Device height71 mm
-
Min. depth of built-in installation box35 mm
-
Protective contactYes
-
Number of active contacts (round)2
-
With signal lampNo
-
Number of units1
-
Number of phases1
-
With hinged lidYes
-
Label space/information surfaceNo
-
RAL-number (similar)7021
-
LockableNo
-
Insulated mountingYes
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw and screw
-
Halogen freeYes
-
Surface finishingMatt
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP44
-
Device width71 mm
-
Device depth47.5 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 40 pcs. | 1280 pcs. |
| Weight (kg) | 0,093 | 1,040 | 4,513 | 164,419 |
| Width (m) | 0,071 | 0,160 | 0,300 | 0,800 |
| Length (m) | 0,047 | 0,070 | 0,225 | 1,050 |
| Depth (m) | 0,071 | 0,380 | 0,400 | 1,200 |
