K.1 HDMI socket with 90° connection anthracite 3315437006
local index:
MEH053BERK
Catalog No:
3315437006
EAN code:
4011334330684
Price:
136,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

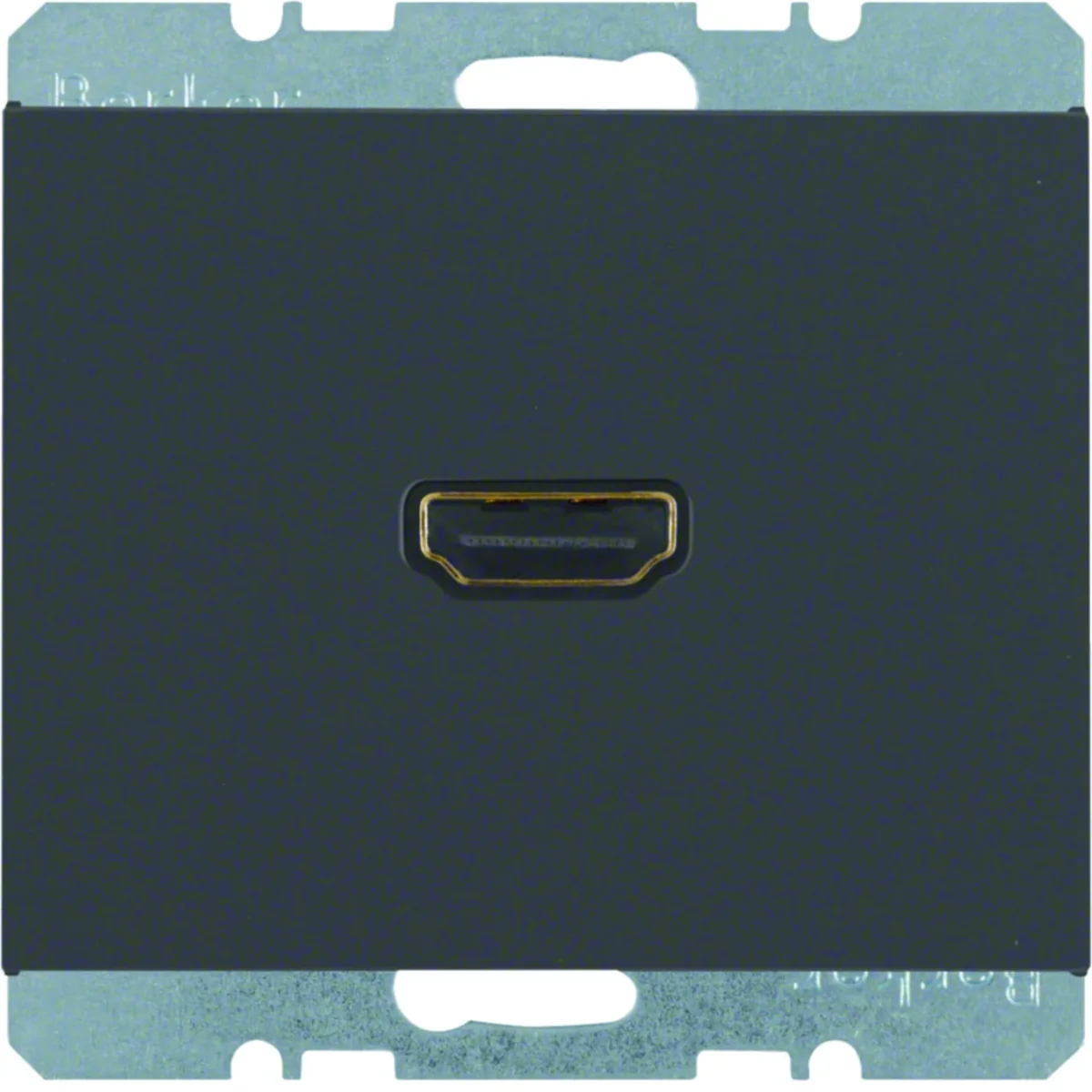

HDMI socket from the K.1 series, from the manufacturer Berker. The product part number is 3315437006.
FEATURES
- With 90 angle connection°.
- With straight output.
- 19-pin.
- With HDMI™ type A.
- Frequency range (vertical polarization): 50…85 Hz.
- Resolution: up to 1920 x 1080 px.
- Transmission speed : maximum 8.16 Gbit/s.
- Gold-plated contacts.
- Without spreaders, for screw connection.
- For connecting digital devices to transmission of high definition audio and video signals, e.g. from a satellite receiver, DVD or BD player to an LCD or plasma screen.
Technical data
-
Number of sockets1
-
ShapeRectangular
-
InstallationFlush-mounted
-
FamilyK.1
-
Level of securityIP20
-
Surface protectionvarnishing
-
Accurate colorAnthracite
-
For the frame systemYes
-
PKWIU27.33.13.0
-
ColorGraphite
-
MaterialPlastic
-
TypeHDMI / VGA
-
Resolution [px]1920x1080
-
TypeFlush-mounted
-
Surface finishmatte
-
VariantHDMI
-
Exact materialMaterial Metal
Other technical data
-
Assembly arrangementBasic element with central cover plate
-
Support ringYes
-
With hinged lidNo
-
Imprintable labelWithout indication field
-
MaterialOther
-
Halogen freeNo
-
Surface finishingMatt
-
RAL-number (similar)7021
-
Type of fasteningMounting with screw
-
Suitable for number of connectors1
-
Shielded busesYes
-
Suitable for degree of protection (IP)IP20
-
Device height71 mm
-
Min. depth of built-in installation box18 mm
-
UtilizationHDMI
-
With dust coverNo
-
Outlet directionStraight
-
Mounting methodFlush-mounted
-
Material qualityOther
-
Surface protectionLacquered
-
ColourAnthracite
-
TransparentNo
-
With buses/couplingsYes
-
With strain reliefNo
-
Luster terminalNo
-
Device width71 mm
-
Device depth28.3 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 80 pcs. | 1600 pcs. |
| Weight (kg) | 0,061 | 0,745 | 6,000 | 149,000 |
| Width (m) | 0,071 | 0,155 | 0,305 | 0,800 |
| Length (m) | 0,038 | 0,080 | 0,335 | 1,050 |
| Depth (m) | 0,071 | 0,295 | 0,395 | 1,200 |
