Manufacturer: BERKER
Depth [mm]: 39.5
Number of sockets: 1
Color: White
Price:
14,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

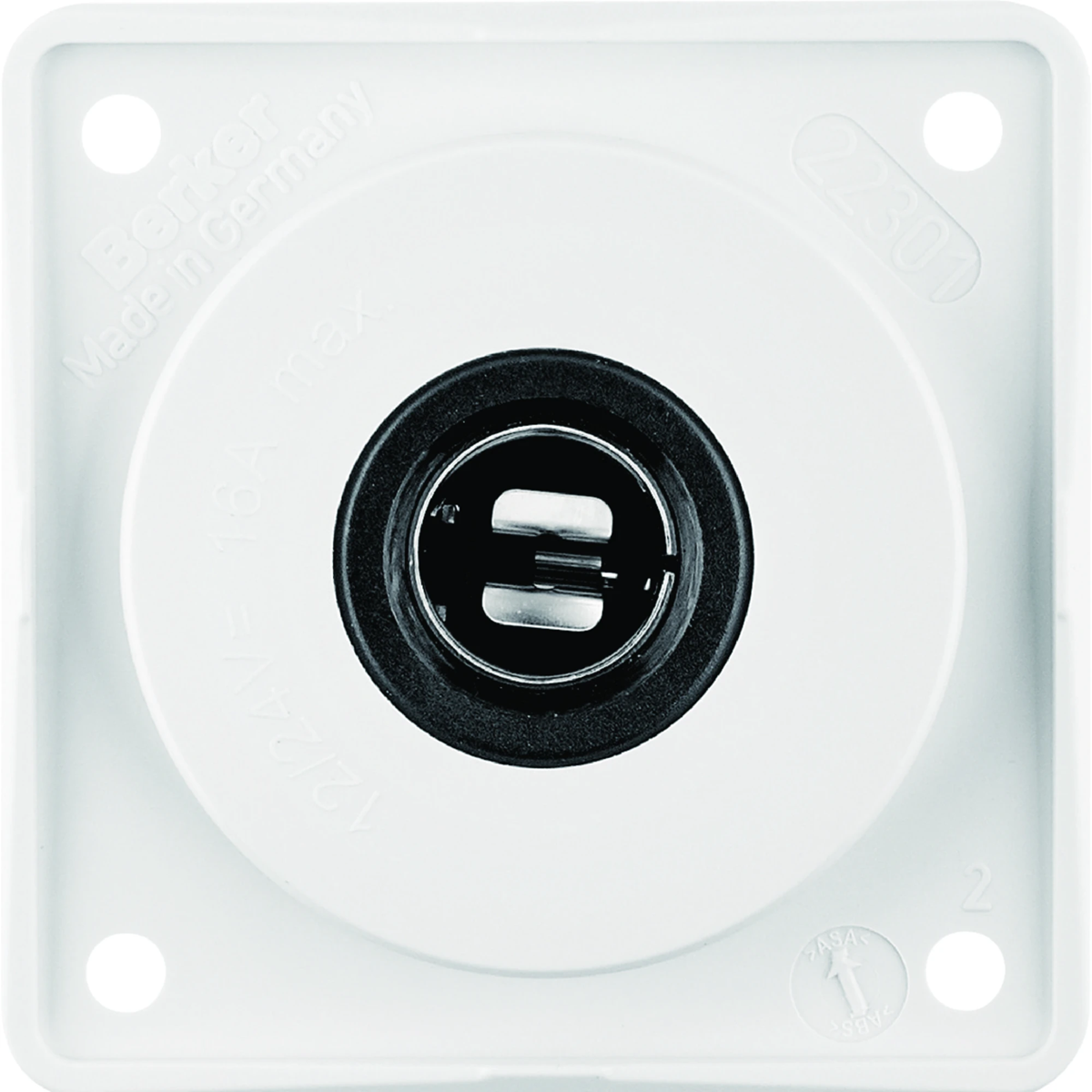

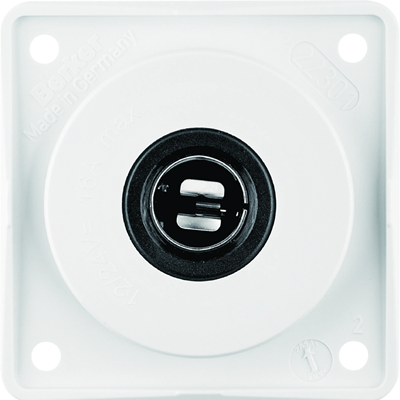

Power socket from the Integro Flow series, from Berker. The product part number is 945172509.



FEATURES

  • Automobile.
  • Rated current In: maximum 16 A.
  • With connector for flat plug.
  • Mounting: built-in installation.
  • Size of flat plug (width x thickness) : 6.3 x 0.8mm.

Technical data

  • Depth [mm]
    39.5
  • Color
    White
  • Material
    Plastic
  • Rated current [A]
    16
  • Family
    INTEGRA FLOW
  • Width [mm]
    55.4
  • Height [mm]
    55.4
  • Surface finish
    Shiny
  • Mounting depth [mm]
    thirty
  • Exact material
    Thermoplastic
  • Number of sockets
    1
  • Shape
    Round
  • Output voltage [V]
    12
  • Type
    USB / power supply 5-24V
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Degree of mechanical protection
    IK05
  • Accurate color
    Snow white
  • Variant
    Power
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Other
  • Number of active contacts (flat)
    2
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9010
  • Lockable
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Built-in installation
  • Material
    Plastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Impact strength
    IK05
  • Device height
    55.4 mm
  • Protective contact
    Yes
  • With signal lamp
    No
  • Number of units
    1
  • Connection type
    Blade terminal
  • With enhanced contact protection
    No
  • Colour
    White
  • Transparent
    No
  • Eject-mechanism
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with screw
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    24 V
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    55.4 mm
  • Device depth
    39.5 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 70 pcs. 2240 pcs.
Weight (kg) 0,022 0,320 2,680 108,760
Width (m) 0,055 0,145 0,300 0,800
Length (m) 0,040 0,070 0,225 1,050
Depth (m) 0,055 0,265 0,400 1,200
