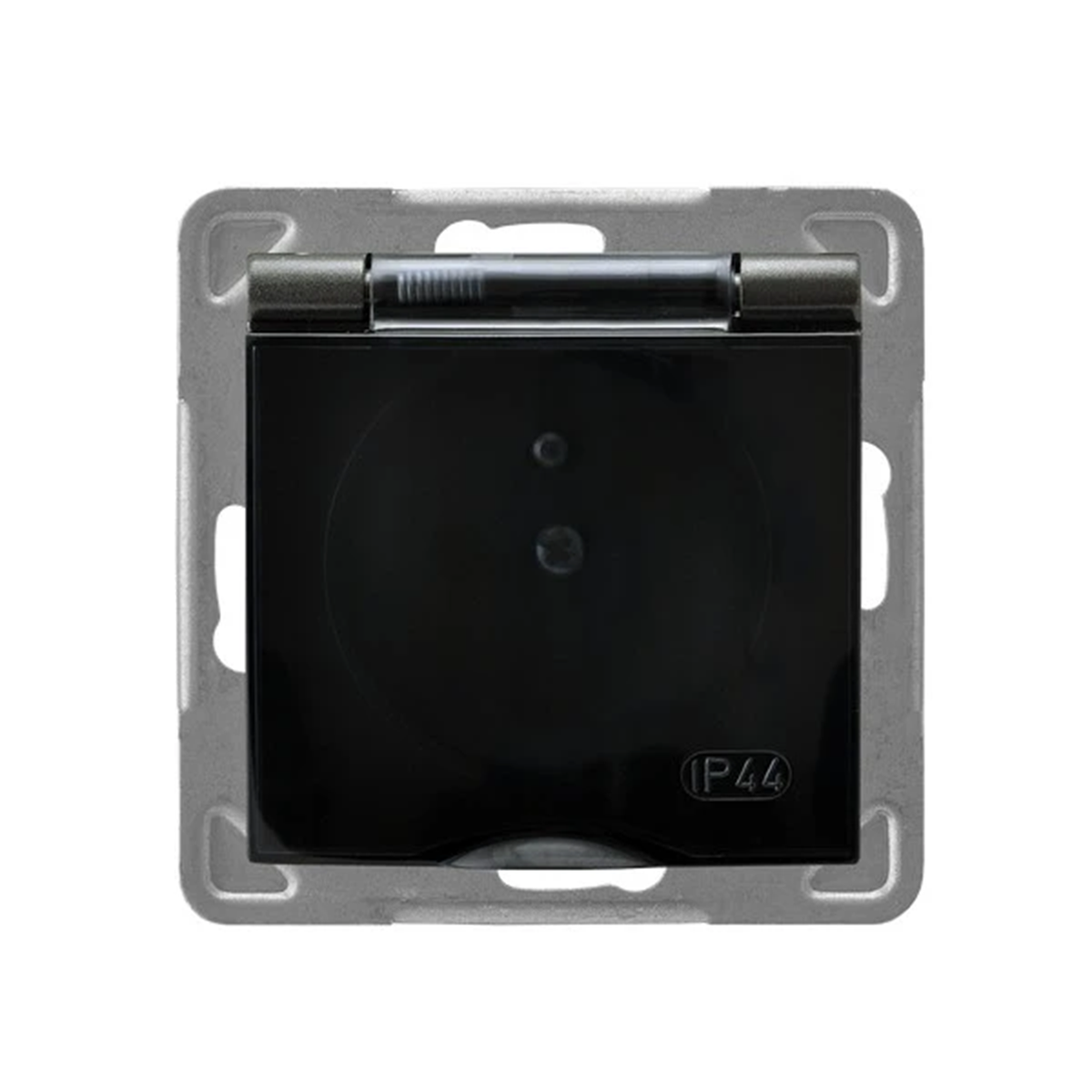

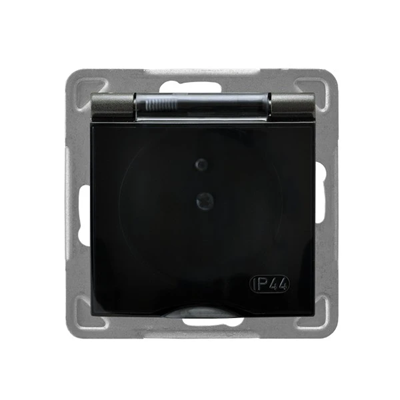

IMPRESJA Socket splash-proof with grounding IP-44, anthracite, without frame, transparent lid. GPH-1YZ/M/50/D

Index local:
MEB073OSPE
Numéro de catalogue:
GPH-1YZ/M/50/D
Code EAN:
5907577461737
Producteur: OSPEL
Depth [mm]: 44
Number of sockets: 1
Color: Graphite
Prix:
8,41 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 4 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Hermetic socket equipped with a flap, with grounding. A frame should be used.



SERIES DESCRIPTION

The Impression series is characterized by discreet elegance, unobtrusive shapes and sophisticated design. It gives many arrangement possibilities due to the rich colors.

The Impresja collection combines functionality, important for electrical equipment, with an elegant, slightly convex line based on a square. Elements from the Impresja series are available in five colors: white, ecru, silver, titanium, anthracite and gold with a metallic sheen. Such a wide selection allows you to match the accessories both to a modern, almost ascetic arrangement, industrial decor, as well as to a classic, richly decorated interior. The combination of an interesting line with complementary colors on the one hand makes the accessories a neutral element of the interior, and on the other hand makes it a strong, arrangement detail.

Données techniques

  • Depth [mm]
    44
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    IMPRESSION
  • Width [mm]
    71
  • Ground
    Hurt
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • Exact material
    Plastic Metal
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP44
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Anthracite
  • Mounting depth [mm]
    23
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Transparent
  • PKWIU
    27.33.13.0

Autres données techniques

  • Model
    Multi-standard socket
  • Number of active contacts (flat)
    0
  • Number of modules (module system)
    1
  • Imprint/indication
    None
  • With hinged lid
    Yes
  • Label space/information surface
    No
  • RAL-number (similar)
    7021
  • Lockable
    Yes
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With loop through function
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm
  • Number of active contacts (round)
    1
  • With signal lamp
    No
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    Anthracite
  • Transparent
    Yes
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • With on/off switch
    No
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Suitable for degree of protection (IP)
    IP44
  • Device width
    71 mm
  • Device depth
    44 mm

Détails du fabricant

  • Producteur
    OSPEL S.A.
  • Adresse
    42-436 Wierbka Główna 128 Polska

Emballage en vrac

Une sorte de paquet Pudełko
Quantité 4 pcs.
Largeur (m) 0,140
Longueur (m) 0,162
Profondeur (m) 0,090
