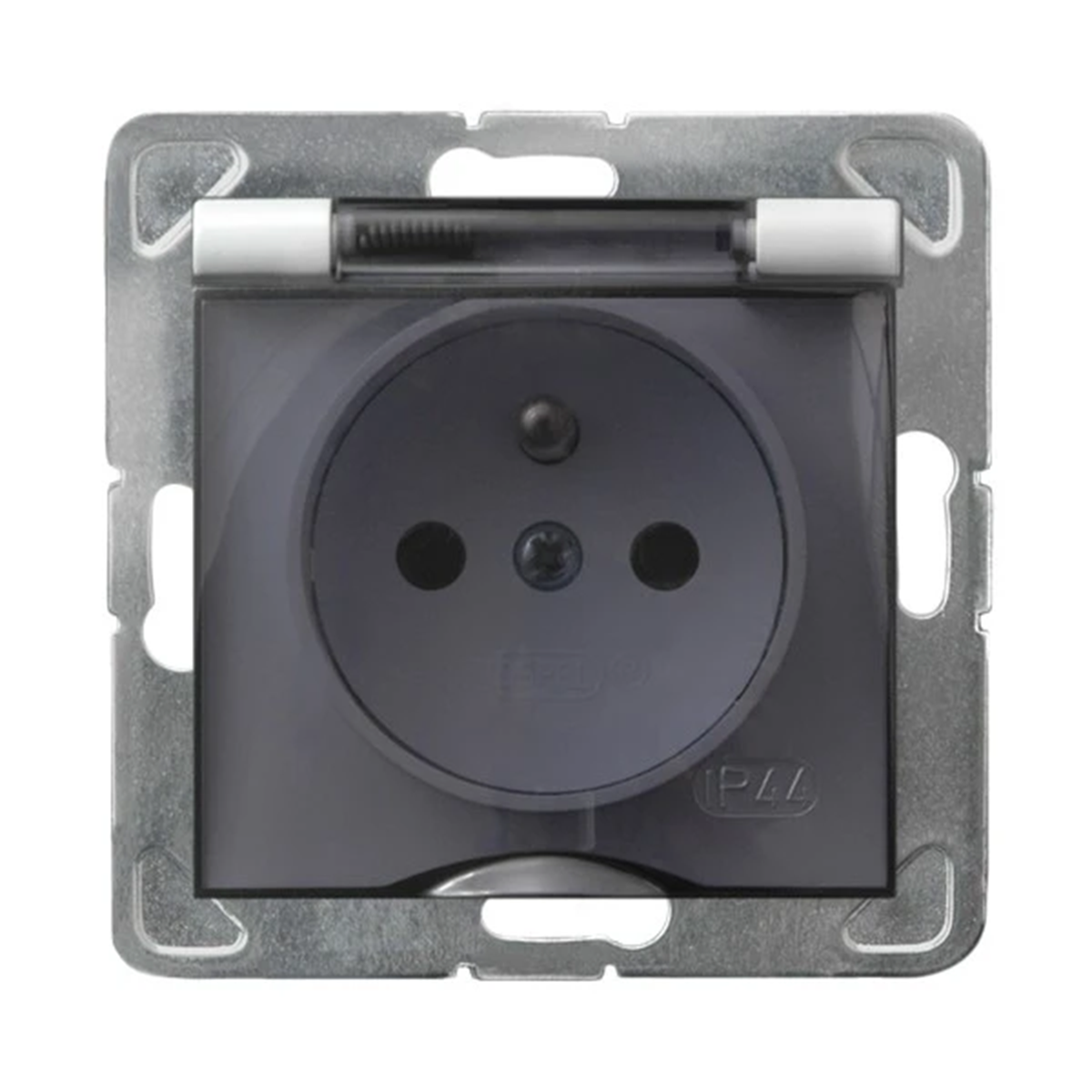

IMPRESJA IP44 splash-proof socket, white, white lid, without frame GPH-1YZ/M/00/W

local index:
MEB172OSPE
Catalog No:
GPH-1YZ/M/00/W
EAN code:
5907577443245
Manufacturer: OSPEL
Depth [mm]: 44
Number of sockets: 1
Color: White
Price:
6,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 21 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hermetic electric socket from the Impression series, from Ospel. The product part number is GPH-1YZ/M/00/W.



FEATURES

  • Earthed.
  • Module without frame.
  • Socket color white.
  • White lid.
  • Rated current 16A.
  • Rated voltage 230V.
  • Grade protection IP44.
  • flush mounting.



SERIES DESCRIPTION< /h3>

The Impression series is characterized by discreet elegance, unobtrusive shapes and sophisticated design. It gives many arrangement possibilities due to the rich colors. A wide selection of colors allows you to match the accessories to a modern, almost ascetic arrangement, industrial decor, as well as to a classic, richly decorated interior. The hermetic electrical socket has all features of this unique series.

Technical data

  • Depth [mm]
    44
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    IMPRESSION
  • Width [mm]
    71
  • Ground
    Hurt
  • Surface protection
    Natural
  • Mounting depth [mm]
    23
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Socket color
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP44
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    NO
  • Exact material
    Plastic Metal

Other technical data

  • Model
    Multi-standard socket
  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    White
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    1
  • With signal lamp
    No
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • With hinged lid
    Yes
  • Label space/information surface
    No
  • RAL-number (similar)
    9003
  • Lockable
    Yes
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Suitable for degree of protection (IP)
    IP44
  • Device width
    71 mm
  • Device depth
    44 mm

Bulk packaging

A kind of package Pudełko
Quantity 10 pcs.
Width (m) 0,162
Length (m) 0,290
Depth (m) 0,090
