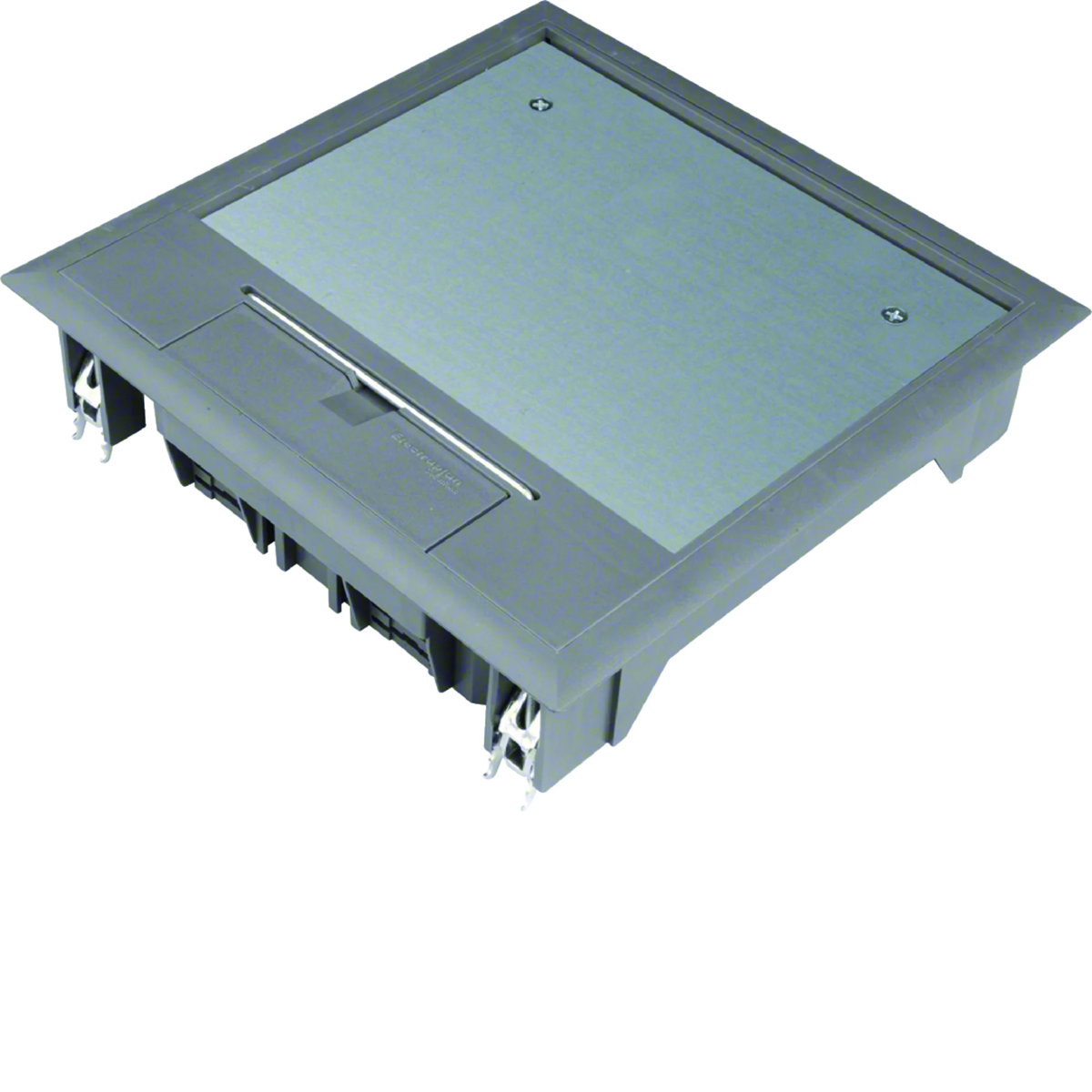

Hinged cover VQ06 200x200 lining 5mm steel gray PA VQ06057011

local index:
MAV063TEHA
Catalog No:
VQ06057011
EAN code:
4012002244951
Manufacturer: TEHALIT
Halogen free: Yes
Length [mm]: 200
Color: Gray
Price:
42,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system by Hager has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1,500 N, as well as special cassettes for loads of 7,500 N or 20,000 N, used, for example, in car workshops or production and storage halls.

Technical data

  • Halogen free
    Yes
  • Color
    Gray
  • Width [mm]
    200
  • Accurate color
    Steel
  • Length [mm]
    200
  • Number of devices to be built in
    6

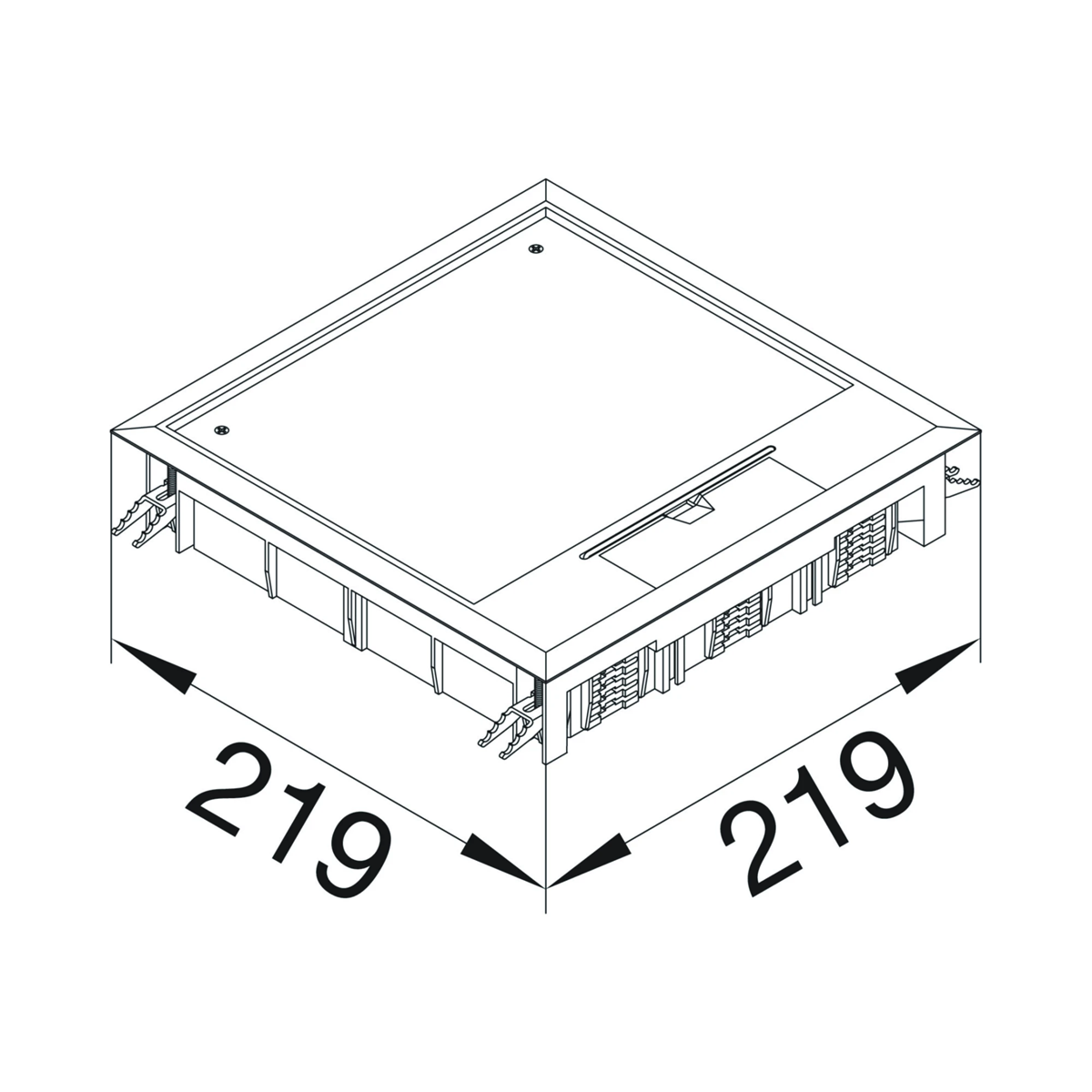

  • External dimensions [mm]
    219 x 219
  • PKWIU
    22.23.19.0

Other technical data

  • Number of device cups
    2
  • Degree of protection (IP)
    IP20
  • Depth of flooring recess
    5 mm
  • Colour
    Grey
  • Suitable for subfloor duct
    Yes
  • Suitable for double floor built-in
    Yes
  • Width outside dimension
    219 mm
  • Length built-in dimension
    200 mm
  • Min. built-in depth
    77 mm
  • Number of socket outlets with protective contact CEE 7/3 (type F)
    6
  • With opening carpeting
    Yes
  • Protective frame carpeting
    Yes
  • RAL-number
    7011
  • Suitable for hollow floor
    Yes
  • Suitable for wet cleaning
    No
  • Długość zewnętrzna
    219 mm
  • Width built-in dimension
    200 mm

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 4 pcs. 144 pcs.
Weight (kg) 1,030 1,040 4,596 197,440
Width (m) 0,220 0,220 0,250 0,800
Length (m) 0,060 0,065 0,260 1,000
Depth (m) 0,220 0,220 0,250 1,200
