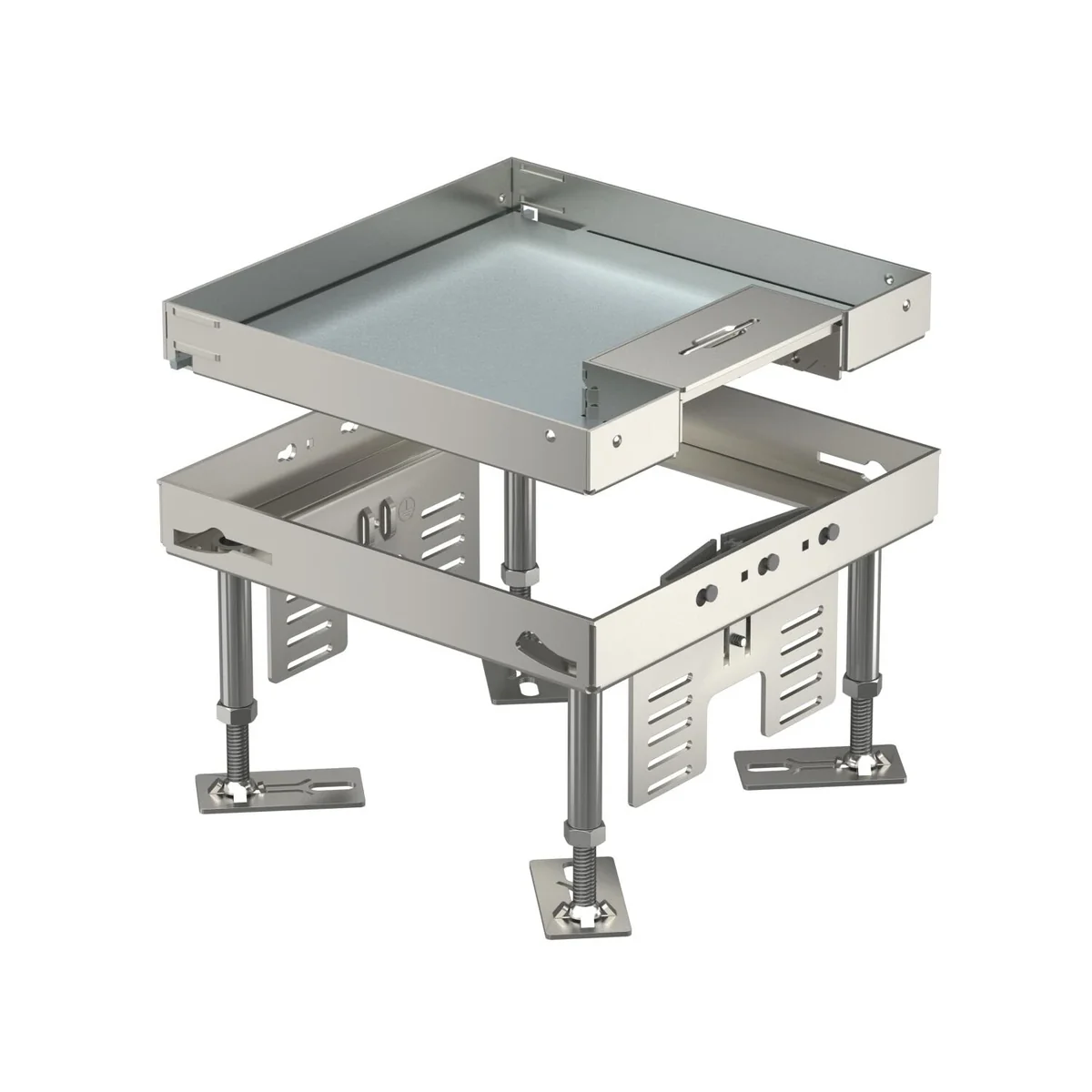

Floor cassette with cable outlet, steel RKSN2 4 VS 20 7409208

local index:
MAV012OBOB
Catalog No:
7409208
EAN code:
4012195867128
Manufacturer: OBO BETTERMANN
Number of modules: 1
Material: stainless steel
Cover type: Square
Price:
281,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Height-adjustable cassette - the range depends on the cassette type.
Loads: acc. to 6.102- Max. up to 3,000 N, acc. to 6.103- Max. up to 3,000 N.
Cable outlet: 1 pc., locked in the open position during use, equipped with protective foam to protect the outgoing cables.
Cable guide: Slide-in element, flexible, organizing cable routing.
Recess in the lid of the cassette for the floor covering, depending on the type: 20 or 25 mm.

Technical data

  • Number of modules
    1
  • Cover type
    Square
  • Number of modules
    1
  • Material
    stainless steel

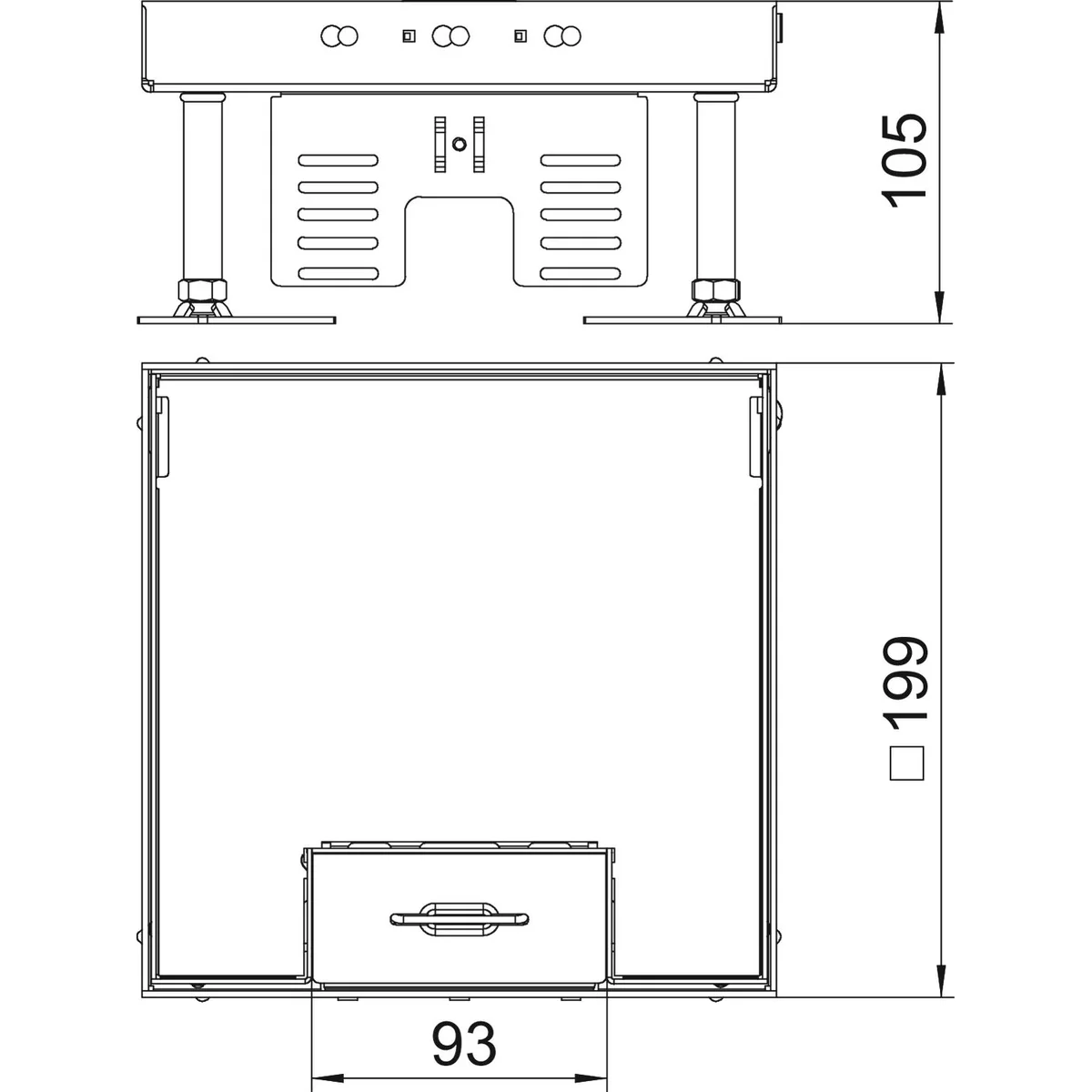

  • External width [mm]
    199
  • PKWIU
    27.12.40.0

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 36 pcs.
Weight (kg) 3,491 165,676
Volume (m3) 0,013 0,912
Width (m) 0,320 0,800
Length (m) 0,375 1,200
Depth (m) 0,105 0,950
