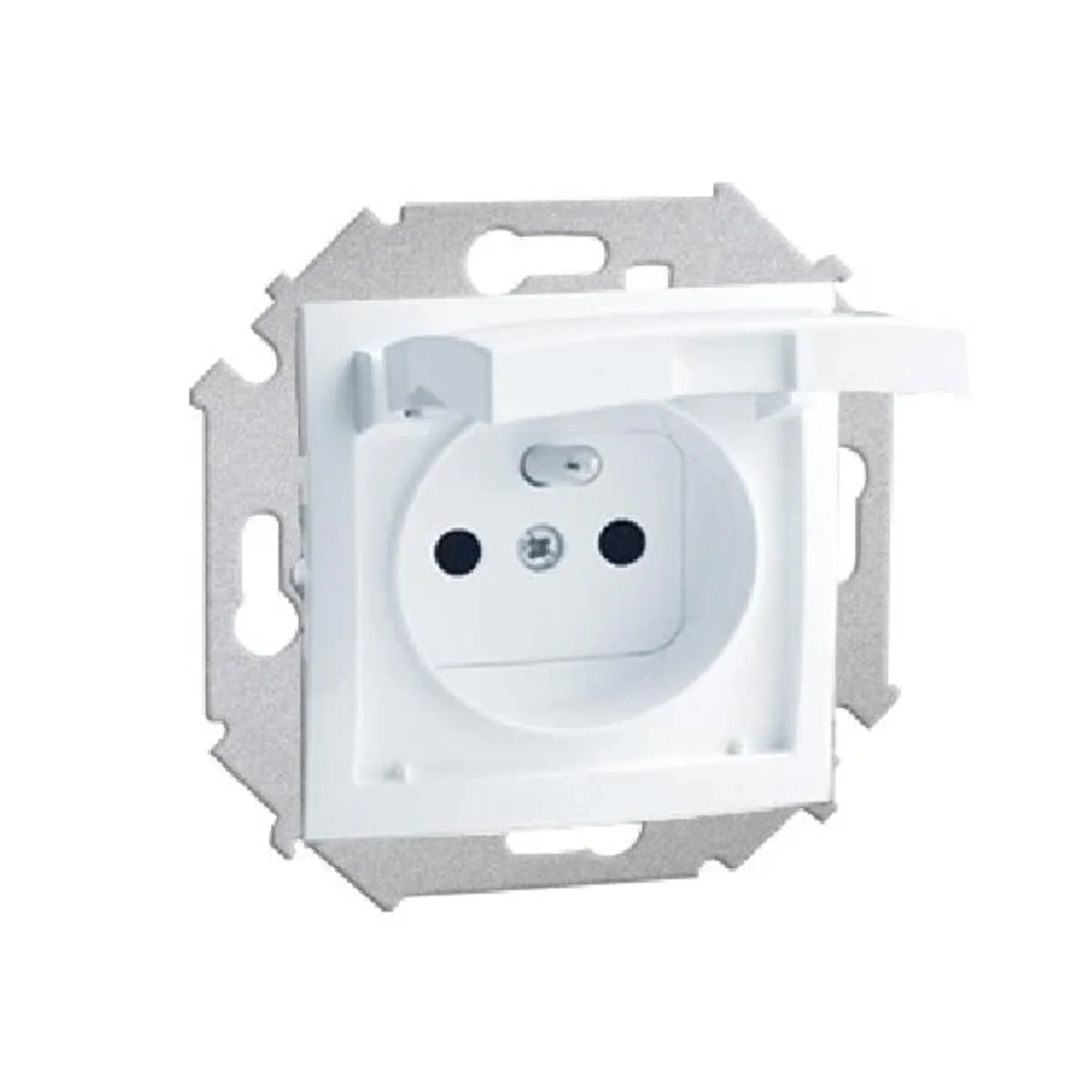

Earthed plug socket for IP44 version with seal (module) 16A, 250V, screw terminals, white 1591940-030

Indice locale:
MEB004KONT
Numero di catalogo:
1591940-030
Codice EAN:
5902787550912
Produttore: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 44
Number of sockets: 1
Prezzo:
21,09 zł
gross / pezzi
(inclusa IVA 23%)
Esaurito
Aggiungi alla richiesta di preventivo
Stampa

Descrizione del prodotto

Single socket outlet for the IP44 version with grounding.



SERIES DESCRIPTION

The Simon 15 series is an elegant and practical solutions. Thanks to the mild colors, the series gives the possibility of subtly adapting the accessories to the needs of a functional apartment or office. The clean design form guarantees a composition with many interiors.

Dati tecnici

  • Halogen free
    Yes
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP44
  • Type
    Flush-mounted
  • Height [mm]
    83
  • Surface finish
    Shiny
  • Mounting depth [mm]
    24
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Socket color
  • Seal
    Yes
  • Depth [mm]
    44
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    Simon 15
  • Width [mm]
    83
  • Ground
    Hurt
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • Exact material
    PC ABS
  • PKWIU
    27.33.13.0

Altri dati tecnici

  • Number of units
    1
  • Colour
    White
  • Material
    Plastic
  • Surface protection
    Untreated
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP44
  • Connection type
    Screwed terminal
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Frequency
    50 ... 60 Hz
