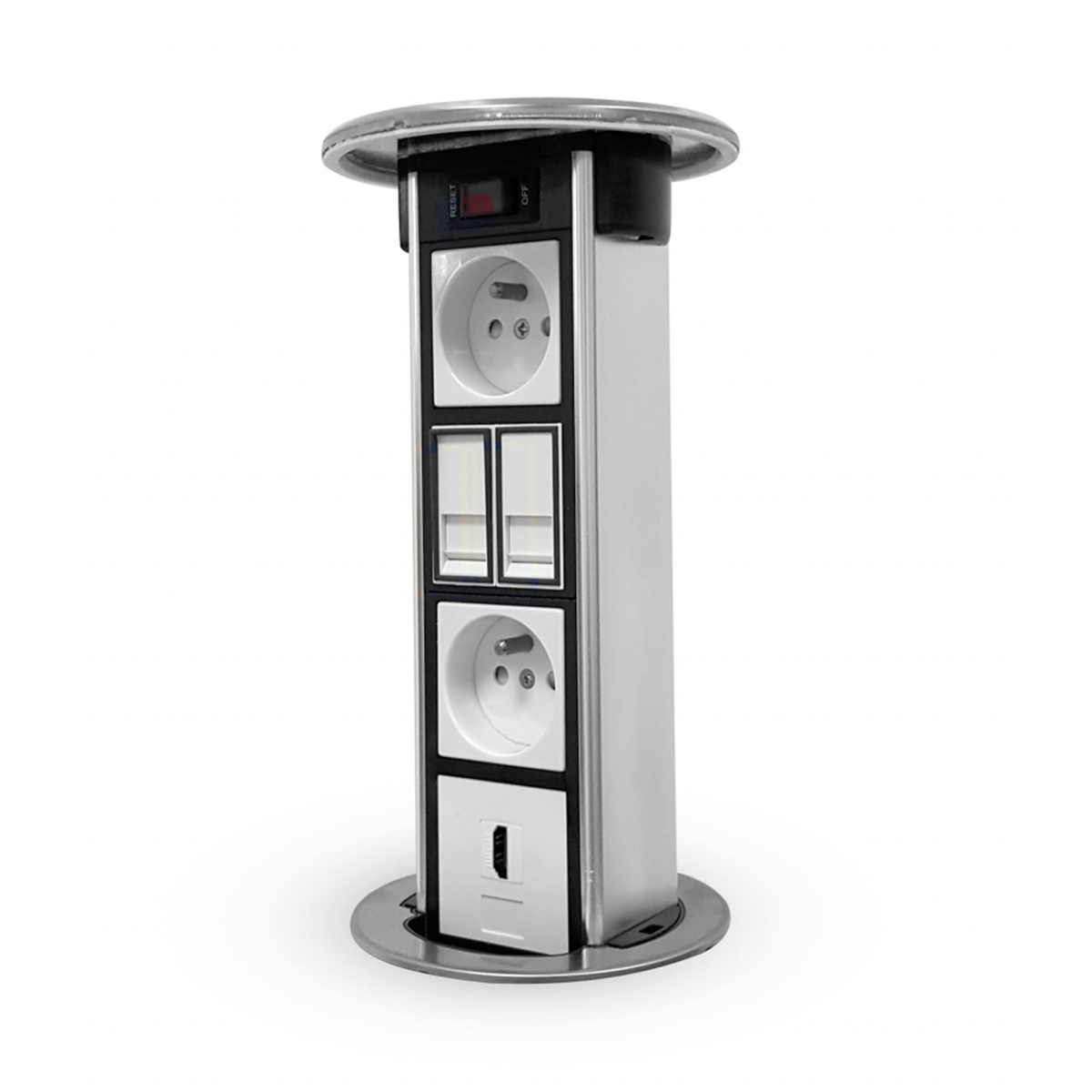

Desk column not equipped for mounting in the worktop with 22.5x45 standard sockets EM/HU-STP-1S-3EU

The 8M (4x2M) aluminum desktop column is the perfect solution for distributing electrical and logic signals. Designed for direct mounting in countertops (desks, conference tables, kitchens and others). The design allows you to hide the entire column in the countertop. The cover is made of noble, durable and aesthetic brushed stainless steel. Access to sockets through the cover button and column extension until it locks. After pressing, the column is pulled out and the wires are connected to the mounted sockets. Hiding the column (after disconnecting the wires) is done by releasing the lock with the button and sliding it into the desk until it clicks. The column is equipped with a connecting power cord with a uni-schucko plug and a switch for connecting power sockets, which allows you to turn off the power to all sockets at the same time. In addition, in the lower part of the column, it is possible to install two keystone type RJ45 sockets, which are available under the table top (e.g. to connect a desktop computer standing under the desk).

• maximum load: 16A ( 3680 W)
• manufacture: stainless steel/plastic
• color of the lid – silver (brushed steel)
• capacity: 8M (4x2M)
• dimensions (diameter x height): 125x355 mm (outline, without power cord)
• diameter of the lid: 120 mm
• diameter of the hole in the top: 95-100 mm
• height of the column: 350 mm
• height of the column protruding above the top: 254 mm< /li>
• table top thickness: up to 40 mm
• column equipped with a three-core connecting cable type H05VV-F 3G1.5mm2, uni-schucko plug, switch

Degree of protection (protection against access, penetration of solid objects and the harmful effects of water from the working side of the tabletop):  for a column with a closed cover, correctly mounted on a flat, even and smooth tabletop: IP55 (from the external/working side of the tabletop)
