B.SQUARE/B.7 VGA socket with aluminum screw terminals 3315411404

Name: B.SQUARE/B.7 VGA socket with aluminum screw terminals
Brand: BERKER
SKU: MEH015BERK
Price: 286.04 PLN
Availability: BackOrder

Index local:

MEH015BERK

Numéro de catalogue:

3315411404

Code EAN:

4011334330400

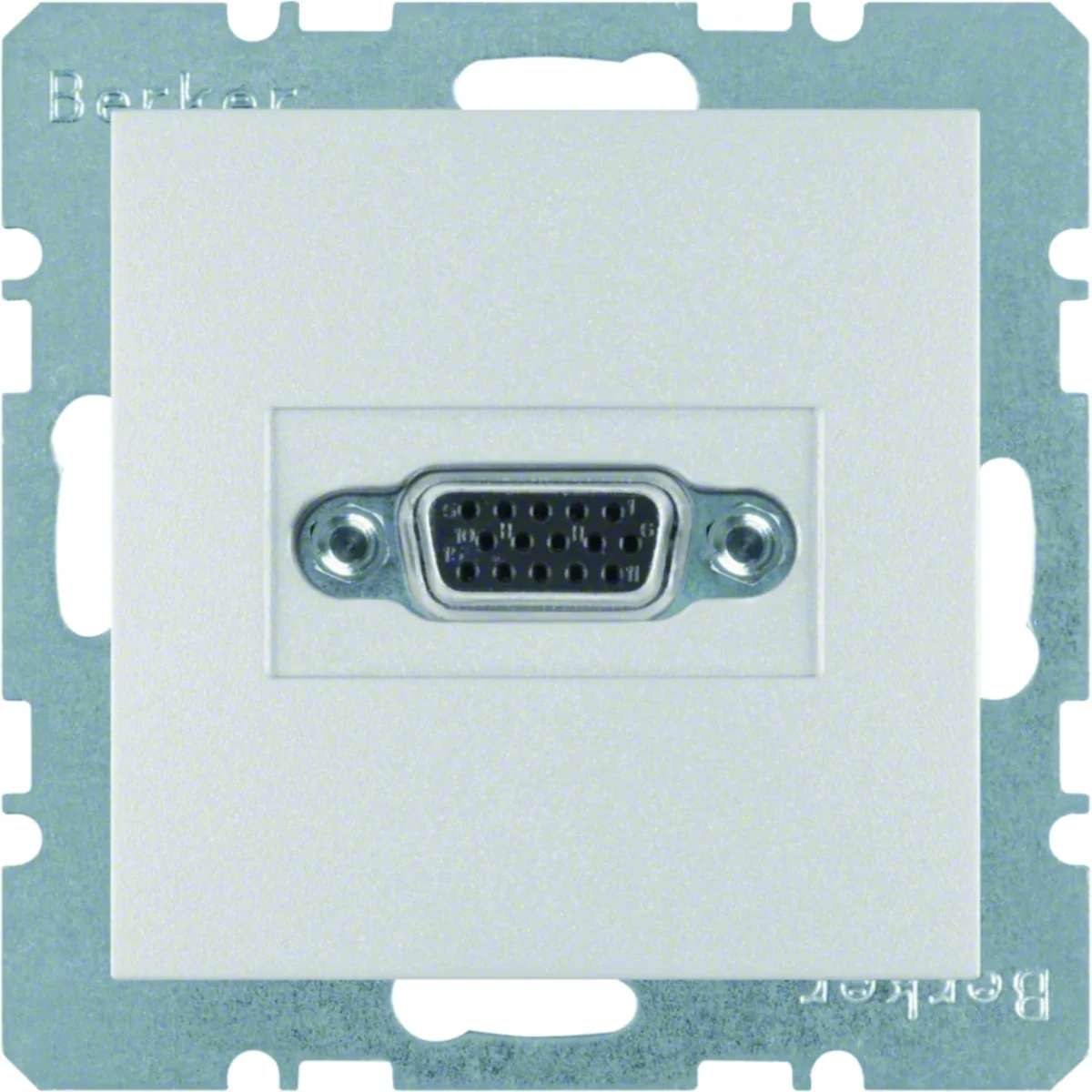

B.SQUARE/B.7 VGA socket with aluminum screw terminals

Cliquer sur la photo pour l'agrandir

Producteur: BERKER

Number of sockets: 1

Color: Silver

Shape: Square

Voir la description complète

Prix:

286,04 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 10 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

VGA socket from the B.Kwadrat/B.3/B.7 series, from Berker. The product part number is 3315411404.

FEATURES

Single.
With straight-through output.
S-VGA compatible.
With 15-pin D-sub (front).
Video frequency range: maximum 160 MHz.
Resolution: maximum 1280 x 1024 px.
Without spreader legs.
With screw-latch terminals for connecting 15- VGA cable.
With support ring.
Enables connection of PCs and laptops to display devices, e.g. monitors (LCD) and projectors.

Données techniques

Number of sockets

1
Shape

Square
Installation

Flush-mounted
Family

B.SQUARE
Level of security

IP20
Type

Flush-mounted
Surface protection

varnishing
Maximum conductor cross-section [mm²]

1.5
Terminal type

Threaded
For the frame system

Yes
PKWIU

27.33.13.0

Color

Silver
Material

Plastic
Type

HDMI / VGA
Resolution [px]

1280 x 1024
Width [mm]

71
Height [mm]

71
Surface finish

matte
Accurate color

Aluminum
Variant

VGA
Exact material

Material Metal

Autres données techniques

Assembly arrangement

Basic element with central cover plate
With dust cover

No
Outlet direction

Straight
Mounting method

Flush-mounted
Material quality

Other
Surface protection

Lacquered
Colour

Aluminium
Transparent

No
With buses/couplings

Yes
With strain relief

No
Luster terminal

No
Device width

71 mm
Device depth

23.5 mm

Support ring

Yes
With hinged lid

No
Imprintable label

Without indication field
Material

Other
Halogen free

Yes
Surface finishing

Matt
RAL-number (similar)

9006
Type of fastening

Mounting with screw
Suitable for number of connectors

1
Shielded buses

Yes
Suitable for degree of protection (IP)

IP20
Device height

71 mm
Min. depth of built-in installation box

13 mm

Détails du fabricant

Producteur

Berker GmbH & Co. KG.
Adresse

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Emballage en vrac

Une sorte de paquet	Karton	Paleta
Quantité	10 pcs.	3330 pcs.
poids (kg)	0,720	262,760
Largeur (m)	0,150	0,800
Longueur (m)	0,070	1,050
Profondeur (m)	0,290	1,200
