B.SQUARE/B.3/B.7 HDMI socket with 90° connection white 3315438989

Name: B.SQUARE/B.3/B.7 HDMI socket with 90° connection white
Brand: BERKER
SKU: MEH056BERK
Price: 561.50 PLN
Availability: BackOrder

local index:

MEH056BERK

Catalog number:

3315438989

EAN code:

4011334341826

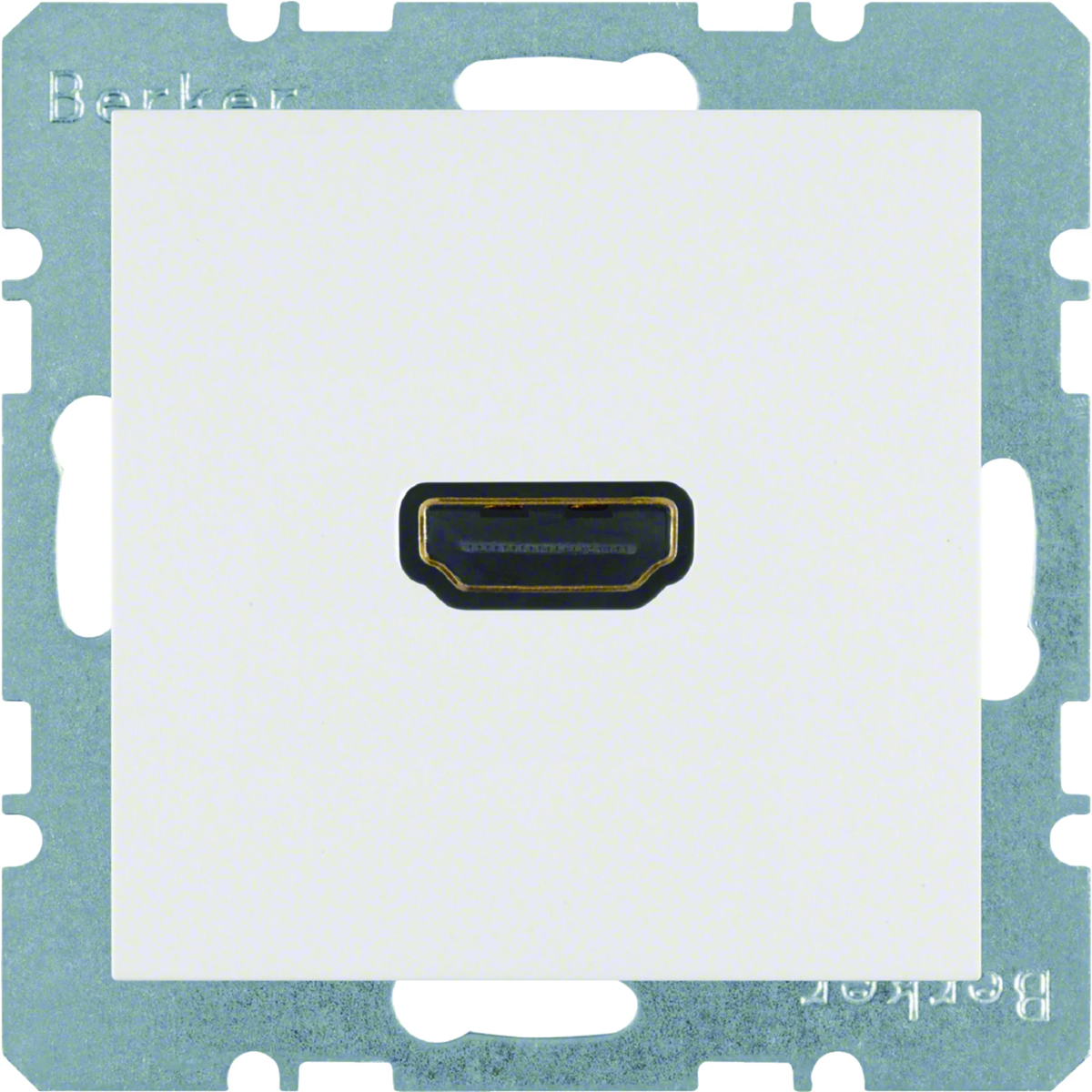

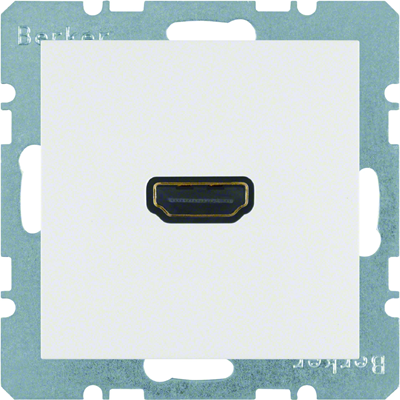

B.SQUARE/B.3/B.7 HDMI socket with 90° connection white

Click on the photo to enlarge

Manufacturer: BERKER

Number of sockets: 1

Color: White

Shape: Square

See full description

Price:

561,50 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

HDMI socket from the B.Kwadrat/B.3/B.7 series, from the manufacturer Berker. The product part number is 3315438989.

FEATURES

With 90 angle connection°.
With straight out.
19-pin.
With HDMI™ type A.
Frequency range (vertical polarization): 50…85 Hz.
Resolution: up to 1920 x 1080 px.
Transmission speed : maximum 8.16 Gbit/s.
Gold-plated contacts.
Without spreaders, for screw connection.
For connecting digital devices to transmission of high definition audio and video signals, e.g. from a satellite receiver, DVD or BD player to an LCD or plasma screen.

Technical data

Number of sockets

1
Shape

Square
Installation

Flush-mounted
Family

B.SQUARE
Level of security

IP20
Type

Flush-mounted
Surface finish

Shiny
Variant

HDMI
Exact material

Material Metal

Color

White
Material

Plastic
Type

HDMI / VGA
Resolution [px]

1920x1080
Width [mm]

71
Height [mm]

71
Accurate color

Snow white
For the frame system

Yes
PKWIU

27.33.13.0

Other technical data

Assembly arrangement

Basic element with central cover plate
Support ring

Yes
With hinged lid

No
Contact type

Female
With imprint

No
Material

Plastic
Halogen free

No
Surface protection

Untreated
Colour

White
Transparent

No
With buses/couplings

Yes
Isolated connections

No
Shielded buses

Yes
With lighting

No
Impact strength

IK02
Device height

71 mm
Min. depth of built-in installation box

18 mm

Utilization

HDMI
With dust cover

No
Outlet direction

Straight
Imprintable label

Without indication field
Mounting method

Flush-mounted
Material quality

Other
Anti-bacterial treatment

No
Surface finishing

Glossy
RAL-number (similar)

9010
Type of fastening

Mounting with screw
Suitable for number of connectors

1
With strain relief

No
Luster terminal

No
Suitable for degree of protection (IP)

IP20
Device width

71 mm
Device depth

28.3 mm

Manufacturer details

Manufacturer

Berker GmbH & Co. KG.
Address

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta
Quantity	10 pcs.	80 pcs.	1600 pcs.
Weight (kg)	0,725	6,650	156,000
Width (m)	0,150	0,300	0,800
Length (m)	0,070	0,330	1,050
Depth (m)	0,290	0,390	1,200
