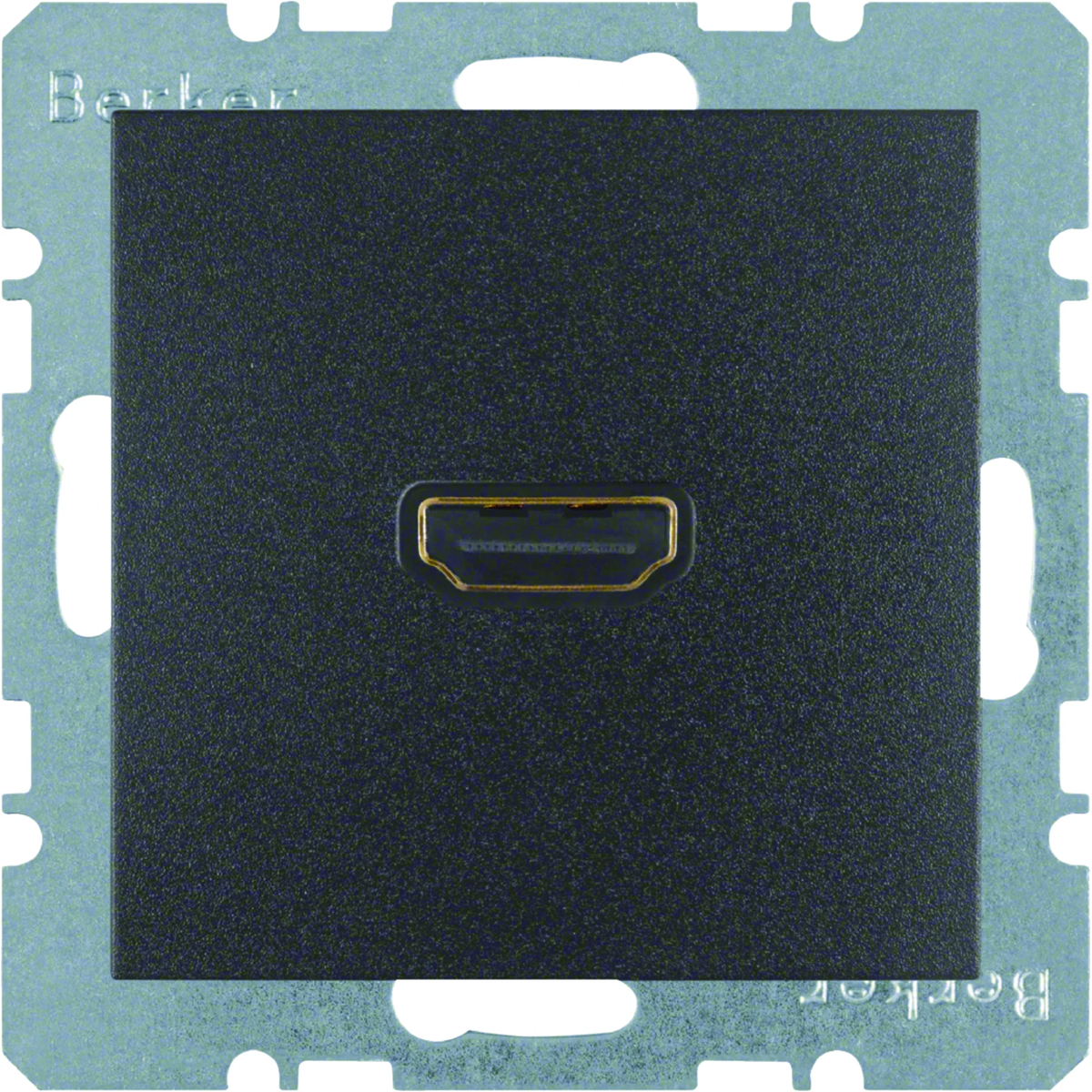

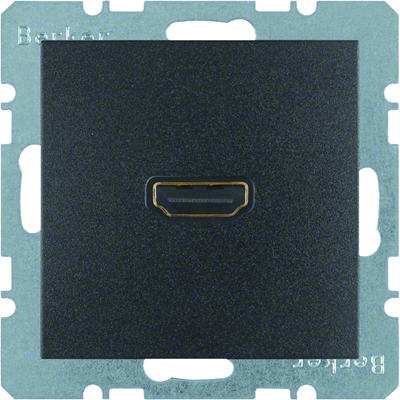

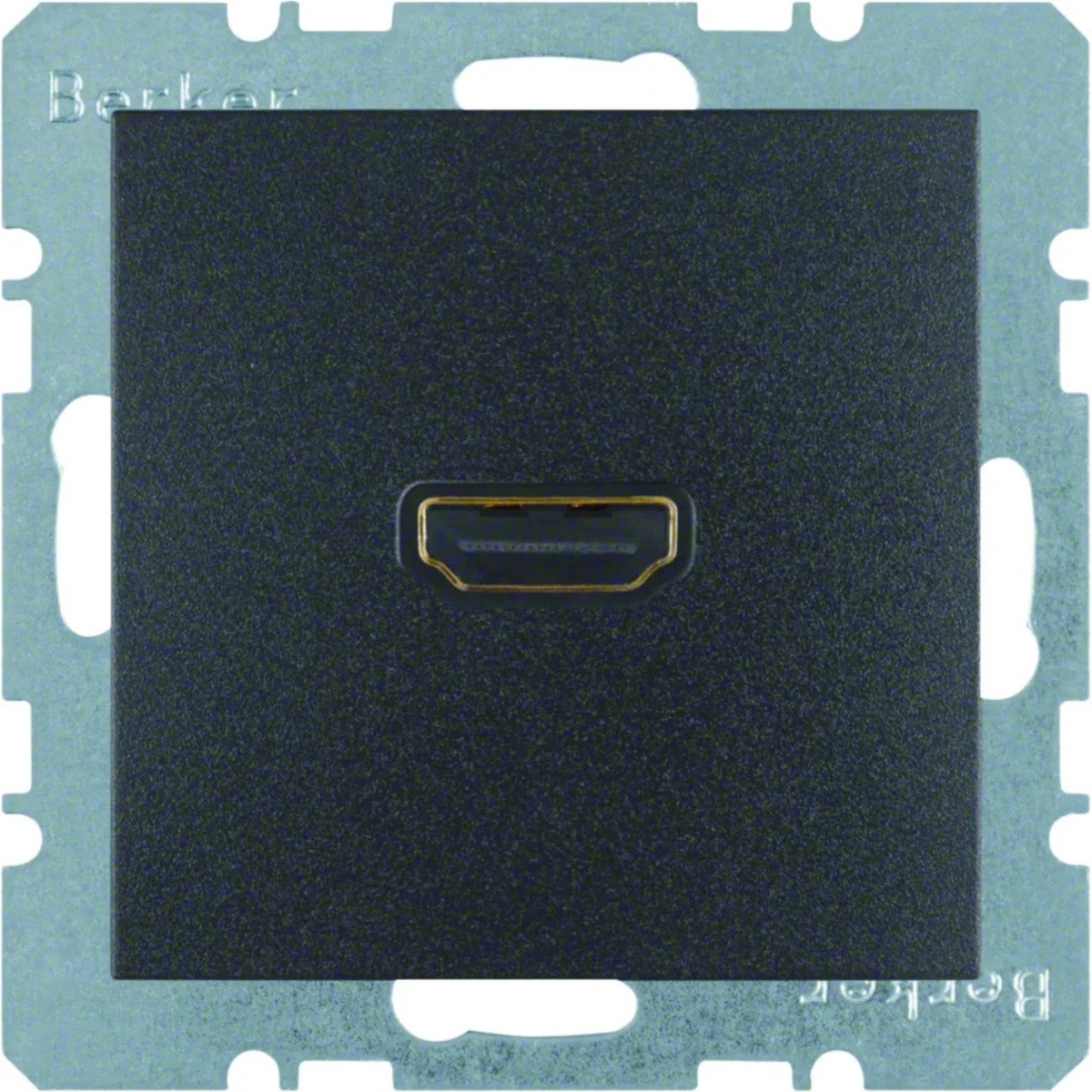

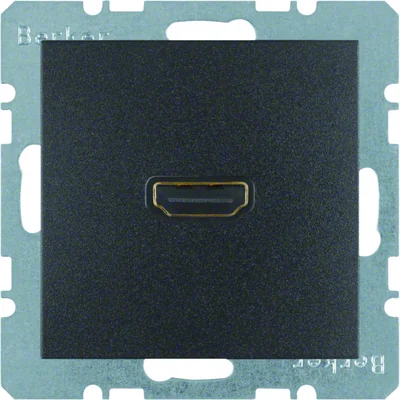

B.SQUARE/B.3/B.7 Anthracite HDMI socket 3315421606

local index:
MEH030BERK
Catalog number:
3315421606
EAN code:
4011334330516
Manufacturer: BERKER
Number of sockets: 1
Color: Graphite
Shape: Square
Price:
601,31 zł
gross / pcs.
(including VAT 23%)
up to 4 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

HDMI socket from the B.Kwadrat/B.3/B.7 series, from the manufacturer Berker. The product part number is 3315421606.



FEATURES

  • Single.
  • With straight-through output.
  • 19-pole.
  • with HDMI type A socket.
  • Frequency range (vertical polarization): 50…85 Hz.< /li>
  • Resolution: up to 1920 x 1080 px.
  • Transmission speed: up to 8.16 Gbit/s.
  • Gold-plated contacts.
  • Without spreader legs, for screw connection.
  • For connecting digital devices for the transmission of high-resolution audio and video signals, e.g. from a satellite receiver, DVD or BD player to LCD or plasma screen.

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Installation
    Flush-mounted
  • Family
    B.SQUARE
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface finish
    matte
  • Mounting depth [mm]
    16.8
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Color
    Graphite
  • Material
    Plastic
  • Type
    HDMI / VGA
  • Resolution [px]
    1920x1080
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Anthracite
  • Variant
    HDMI
  • Exact material
    Material Metal

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Support ring
    Yes
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    7021
  • Type of fastening
    Mounting with screw
  • With strain relief
    No
  • Luster terminal
    No
  • Impact strength
    IK05
  • Device height
    71 mm
  • Min. depth of built-in installation box
    18 mm
  • Utilization
    HDMI
  • With dust cover
    No
  • Imprintable label
    Without indication field
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    Anthracite
  • Transparent
    No
  • With buses/couplings
    Yes
  • Shielded buses
    Yes
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    71 mm
  • Device depth
    28.3 mm

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 10 pcs. 80 pcs. 1600 pcs.
Weight (kg) 0,670 5,800 139,000
Width (m) 0,150 0,300 0,800
Length (m) 0,070 0,330 1,050
Depth (m) 0,310 0,390 1,200
