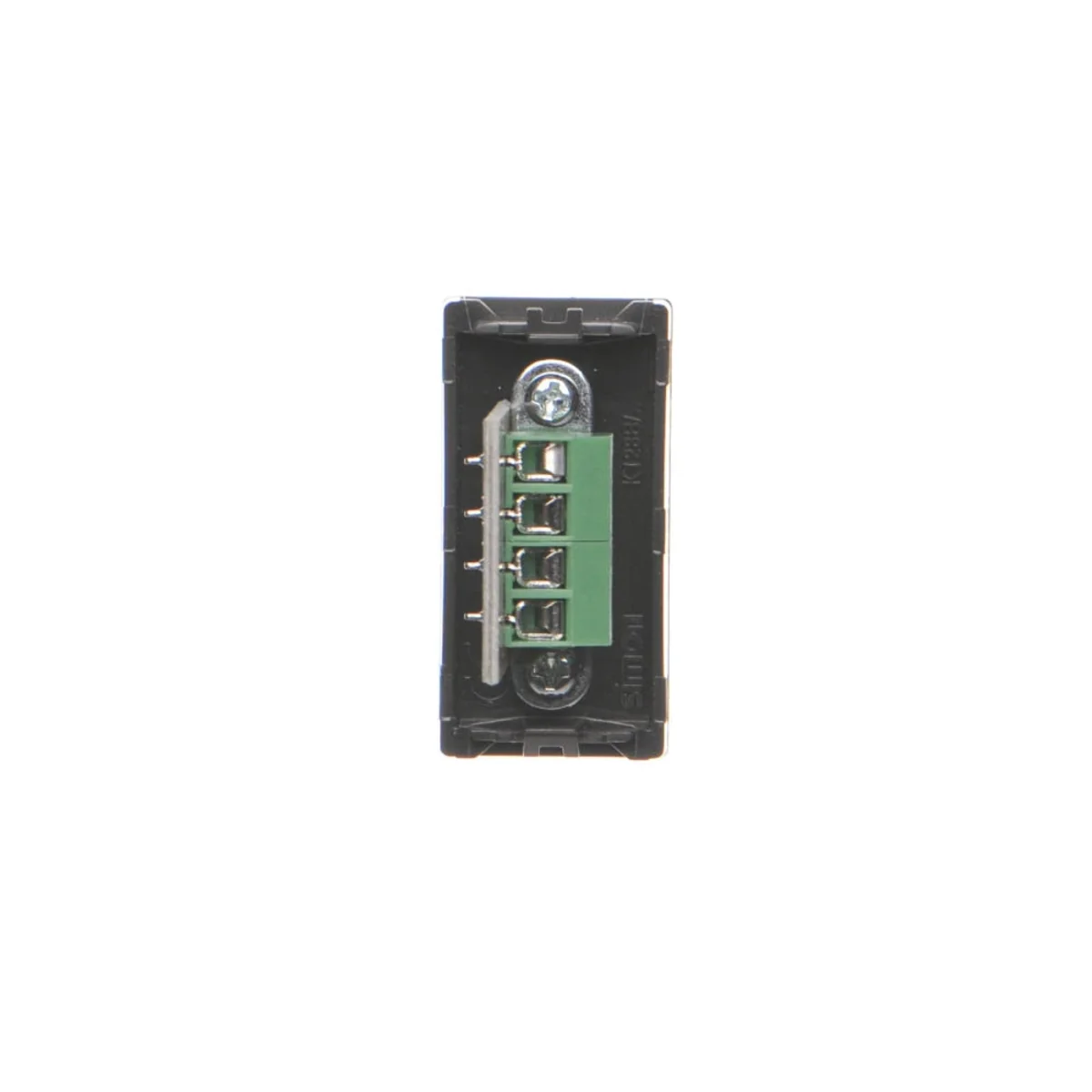

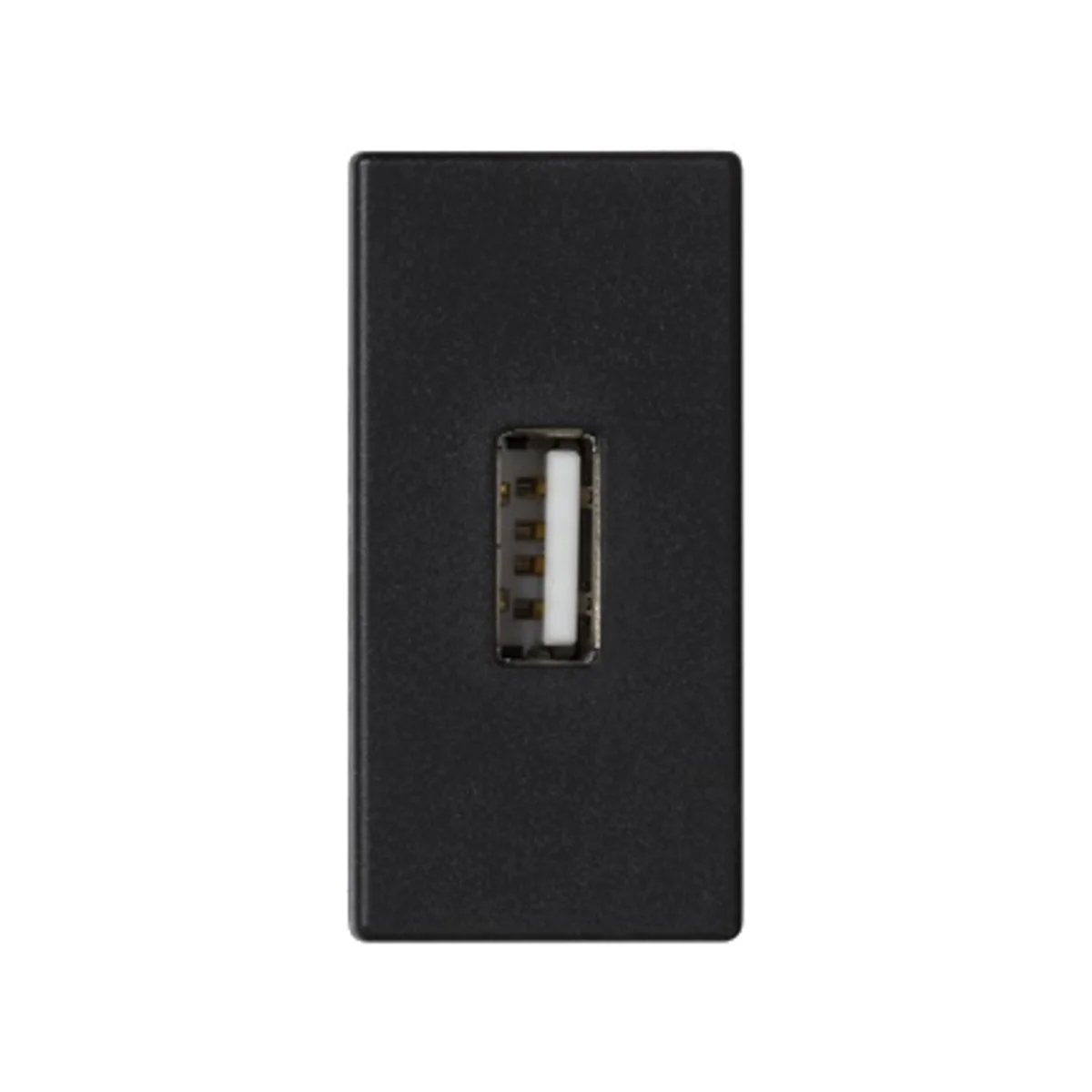

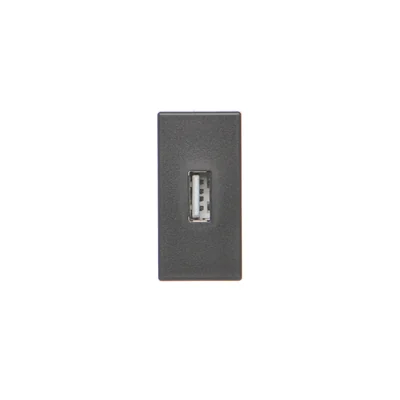

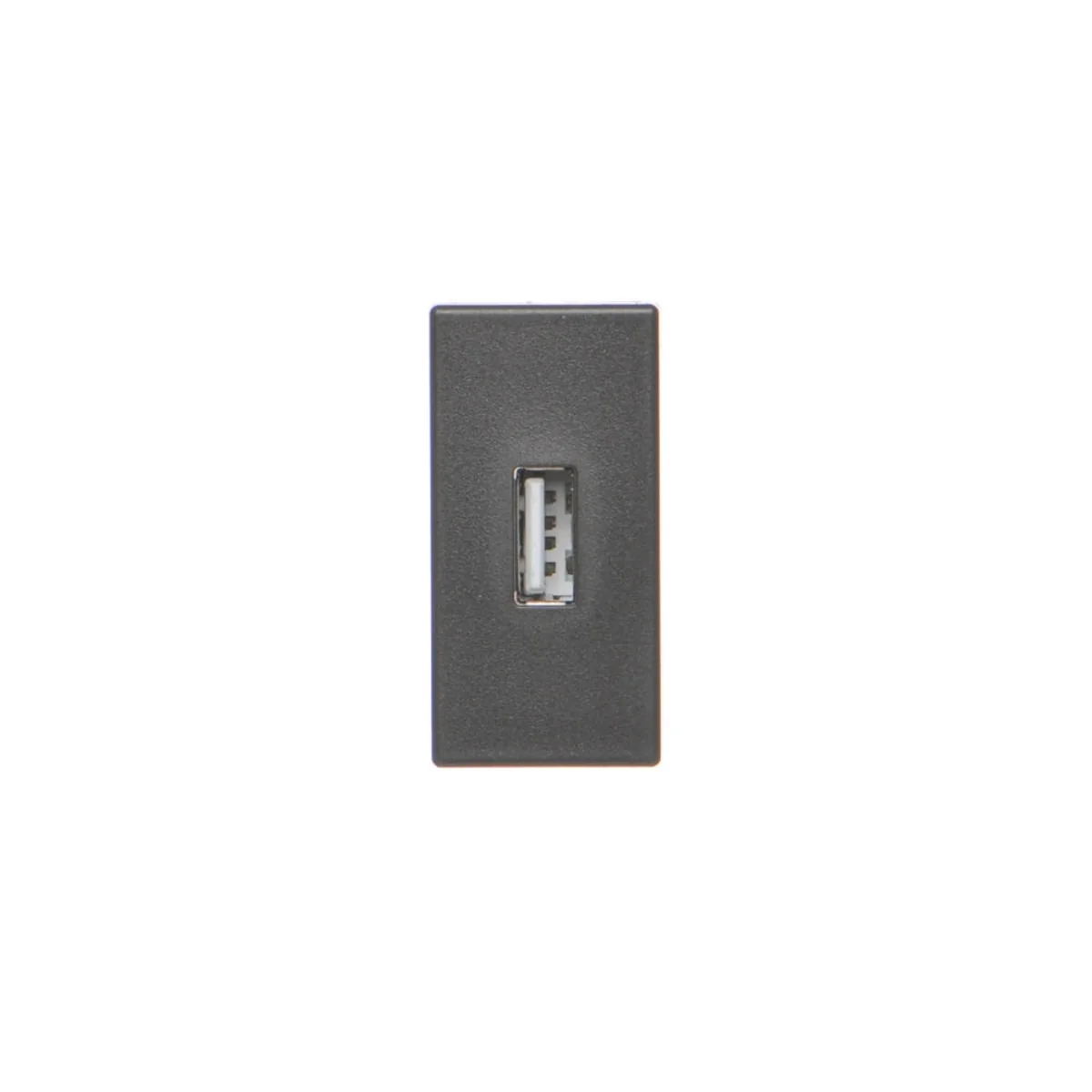

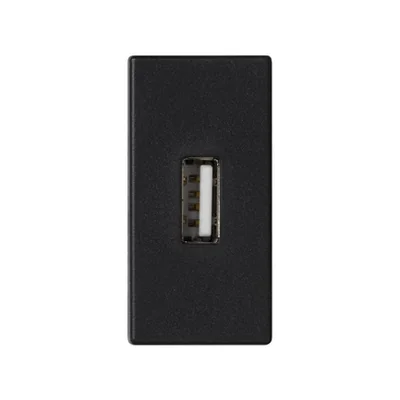

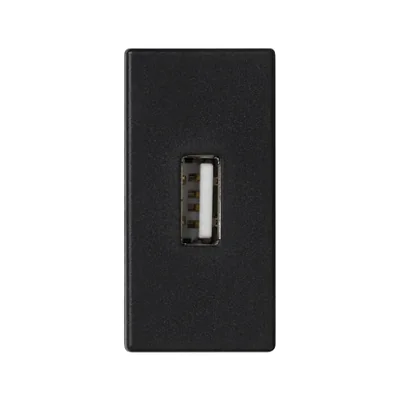

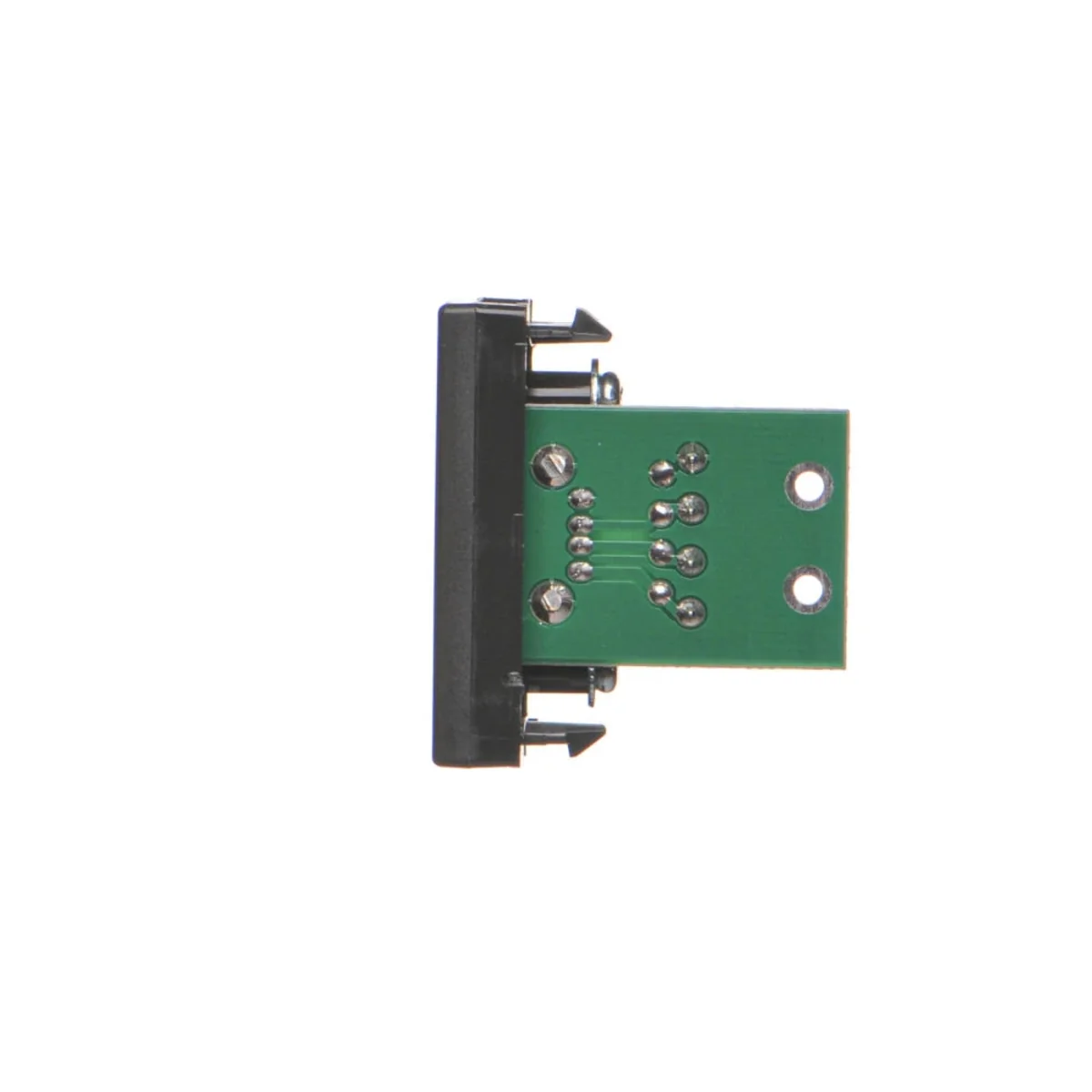

Board K45/2 USB type A female 22, 5x45mm + socket, graphite gray K128B/14

local index:
MGU001KONT
Catalog No:
K128B/14
EAN code:
8426436064782
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 32
Number of sockets: 1
Price:
13,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

USB socket as standard K45, from the manufacturer Contact Simon. The product catalog number is K128B/14.



FEATURES

  • USB type A connector.
  • Complete product.



SERIES DESCRIPTION

USB port standard < strong>K45 was designed so that it can be used in various installations, such as floor boxes, columns or installation ducts.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    1
  • Color
    Graphite
  • Material
    Plastic
  • Type
    USB / power supply 5-24V
  • Level of security
    IP20
  • Type
    45x45
  • Surface protection
    Natural
  • Accurate color
    Gray graphite
  • Mounting direction
    Vertical
  • Variant
    USB
  • PKWIU
    27.33.13.0
  • Depth [mm]
    32
  • Number of modules
    1
  • Shape
    Rectangular
  • Installation
    Snaps
  • Family
    K45
  • Width [mm]
    22.5
  • Height [mm]
    45
  • Surface finish
    matte
  • Mounting depth [mm]
    32
  • Terminal type
    Threaded
  • For the frame system
    Yes

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Material
    Plastic
  • Surface finishing
    Matt
  • Suitable for degree of protection (IP)
    IP20
  • Utilization
    USB
  • Surface protection
    Untreated
  • Colour
    Anthracite

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 1 pcs.
Weight (kg) 0,020 0,020 -
Width (m) 0,045 - 0,105
Length (m) 0,023 - 0,220
Depth (m) 0,032 - 0,052
