BIS Single socket-outlet with earthing schko with shutters for current paths, white GN-1BSP/00
local index:
MFE006OSPE
Catalog No:
GN-1BSP/00
EAN code:
5907577425869
Price:
4,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

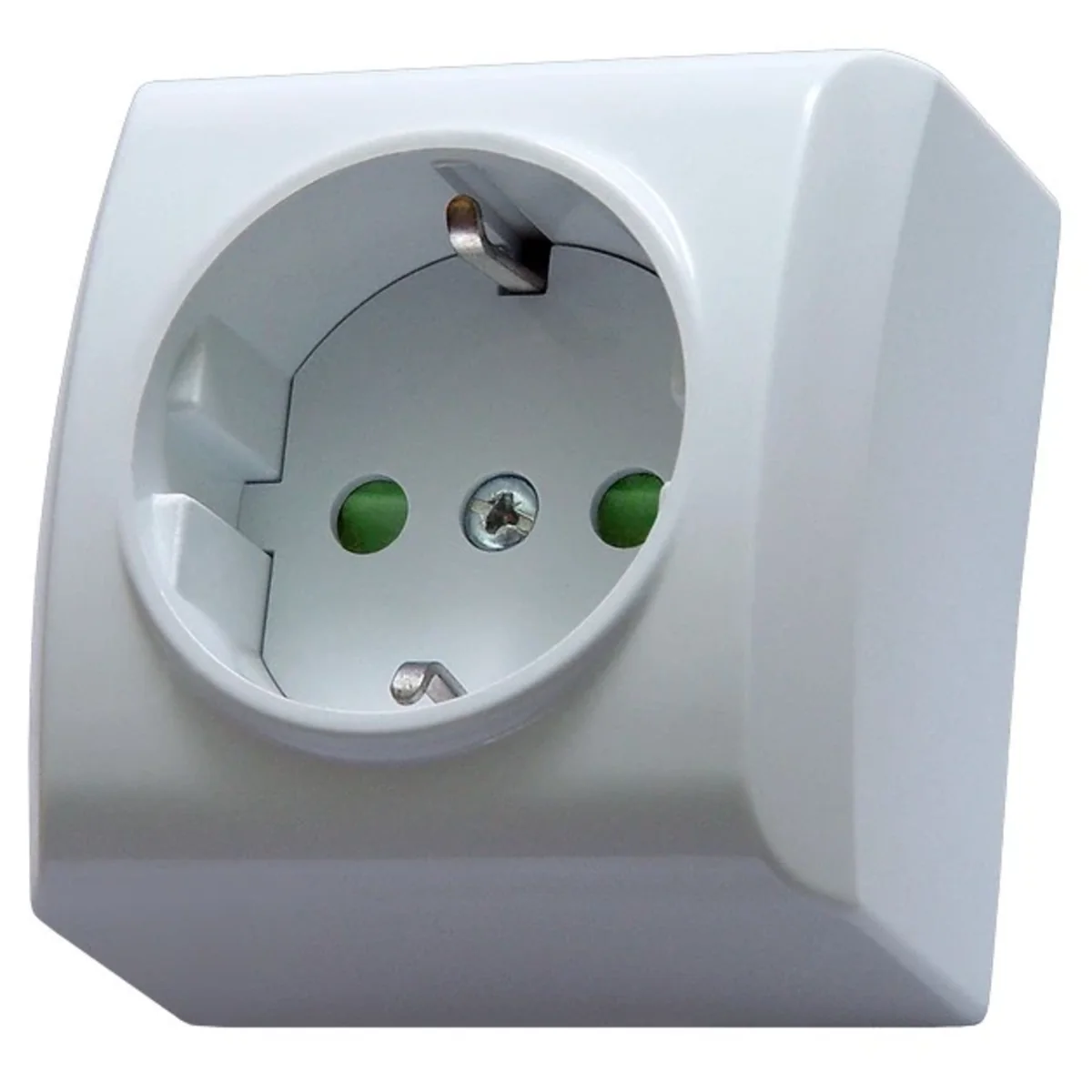

Surface-mounted electric socket from the Bis series, from the manufacturer Ospel. The product catalog number is GN-1BSP/00.
FEATURES
- Single.
- With SCHUKO grounding.
- With shutters for current paths.
- Color white.
- Screw terminals.
- Rated current 16A.
- Rated voltage 230V.
- Ingress protection IP20.
Technical data
-
Depth [mm]41
-
ColorWhite
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeSurface-mounted
-
Height [mm]60
-
BacklightNO
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialPlastic Metal
-
Number of sockets1
-
ShapeSquare
-
InstallationSurface-mounted
-
Rated current [A]16
-
FamilyBIS
-
Width [mm]60
-
Groundschuko
-
Surface protectionNatural
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemNO
-
PKWIU27.33.13.0
Other technical data
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Okrągły styk ochronnyNo
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of modules (module system)0
-
Connection typeScrewed terminal
-
With enhanced contact protectionYes
-
ColourWhite
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodSurface mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK03
-
Device height60 mm
-
Protective contactYes
-
Number of active contacts (round)0
-
With signal lampNo
-
Number of units1
-
Number of socket outlets switchable0
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)9003
-
LockableNo
-
Insulated mountingNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency0 ... 0 Hz
-
Suitable for degree of protection (IP)IP20
-
Device width60 mm
-
Device depth41 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 10 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,290 |
| Depth (m) | 0,090 |
