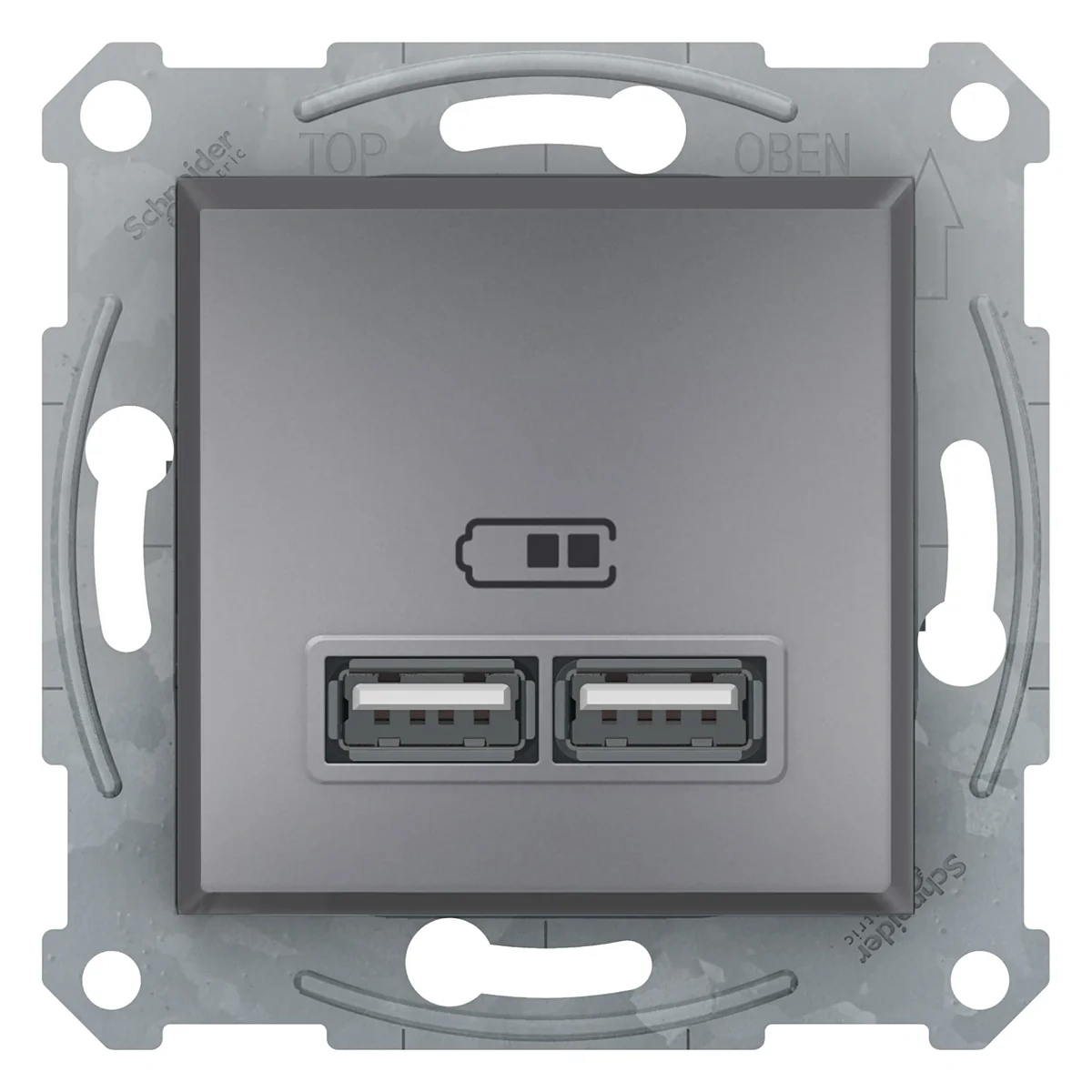

ASFORA USB charger socket 2.1A with steel frame EPH2700262
local index:
MEU004SCHN
Catalog No:
EPH2700262
EAN code:
3606481142375
Price:
57,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
USB charging socket from the Asfora series, from Schneider Electric. The product part number is EPH2700262.
FEATURES
- 2 USB 2.0 ports.
- Without frame.
- Cable cross-section:
- 2 x 0.75...2 x 2.5 mm² for rigid cable
- 2 x 0.75...2 x 2.5 mm² for flexible cable
- 2 x 0.75...2 x 2.5 mm² for link cable
SERIES DESCRIPTION
Asfora is a series electrical installation equipment made of high-quality materials - durable and more resistant to discoloration. USB port characterizes the features of this unique series.
Technical data
-
Depth [mm]42
-
ColorSilver
-
MaterialPlastic
-
InstallationFlush-mounted
-
Output voltage [V]5
-
TypeUSB / power supply 5-24V
-
Level of securityIP20
-
TypeFlush-mounted
-
Degree of mechanical protectionIK04
-
Mounting depth [mm]30.8
-
VariantUSB
-
Exact materialABS PC
-
Number of sockets2
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
Rated current [A]2.1
-
FamilyASPHORA
-
Width [mm]83
-
Height [mm]83
-
Accurate colorSteel
-
Terminal typeThreaded
-
For the frame systemYes
-
PKWIU27.33.13.0
Other technical data
-
ModelOther
-
Operating voltage100 ... 240 V
-
Max. output current2100 mA
-
Mounting methodFlush-mounted
-
RAL-number9023
-
Number of outputs2
-
Frequency50 ... 60 Hz
-
Output voltage5 V
-
ColourStainless steel
-
Min. depth of built-in installation box30.8 mm
