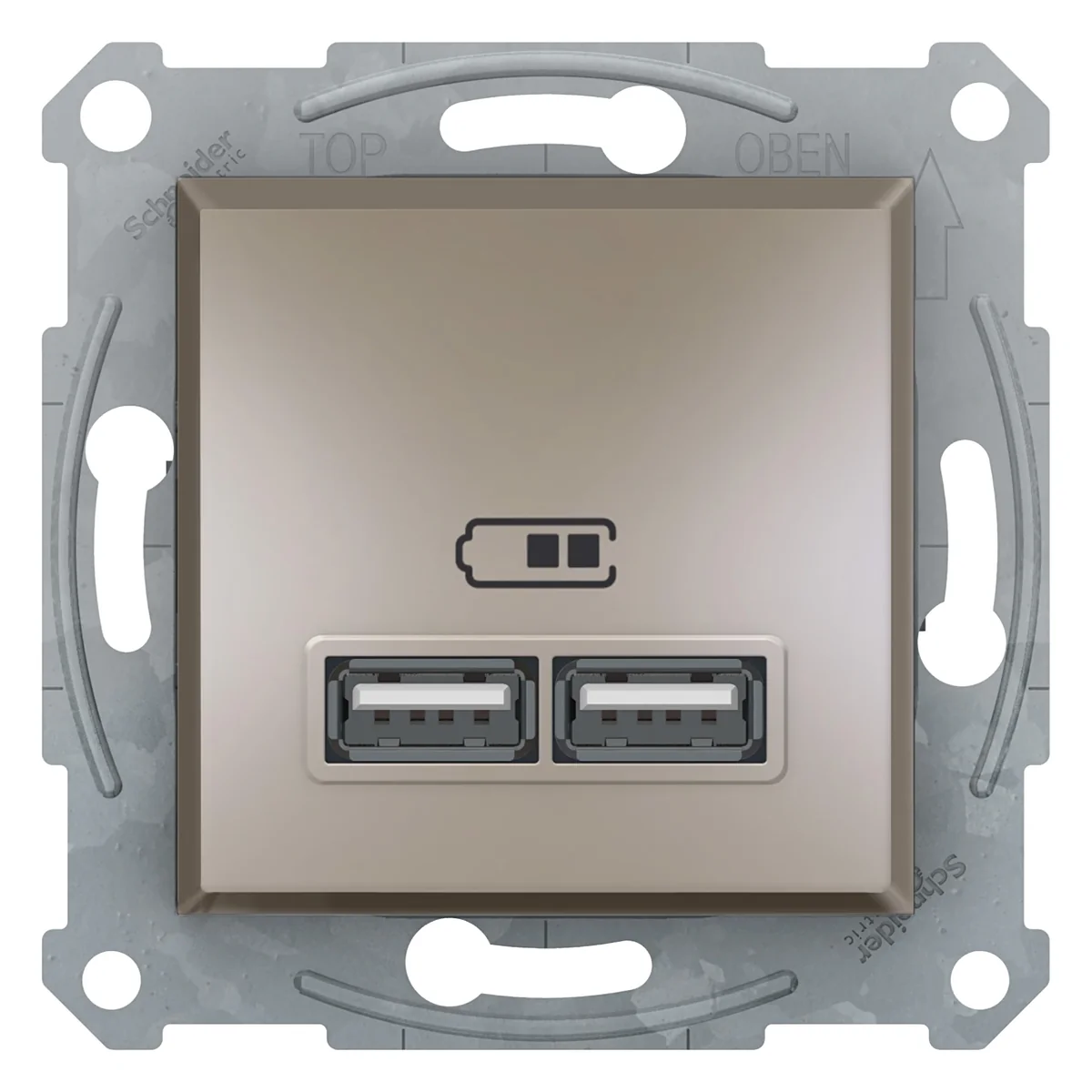

ASFORA USB charger socket 2.1A with brown frame EPH2700269

local index:
MEU005SCHN
Catalog No:
EPH2700269
EAN code:
3606481142382
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 42
Number of sockets: 2
Color: Brown
Price:
57,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

USB charging socket from the Asfora series, from Schneider Electric. The product part number is EPH2700269.



FEATURES

  • 2 USB 2.0 ports.
  • Without frame.
  • Cable cross-section:
    • 2 x 0.75...2 x 2.5 mm² for rigid cable
    • 2 x 0.75...2 x 2.5 mm² for flexible cable
    • 2 x 0.75...2 x 2.5 mm² for link cable



SERIES DESCRIPTION

Asfora is a series electrical installation equipment made of high-quality materials - durable and more resistant to discoloration. USB port characterizes the features of this unique series.

Technical data

  • Depth [mm]
    42
  • Color
    Brown
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Output voltage [V]
    5
  • Type
    USB / power supply 5-24V
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Degree of mechanical protection
    IK04
  • Mounting depth [mm]
    30.8
  • Variant
    USB
  • Exact material
    ABS PC
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Rated current [A]
    2.1
  • Family
    ASPHORA
  • Width [mm]
    83
  • Height [mm]
    83
  • Accurate color
    Metallic bronze
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Other
  • Operating voltage
    100 ... 240 V
  • Max. output current
    2100 mA
  • Mounting method
    Flush-mounted
  • RAL-number
    1035
  • Number of outputs
    2
  • Frequency
    50 ... 60 Hz
  • Output voltage
    5 V
  • Colour
    Bronze
  • Min. depth of built-in installation box
    30.8 mm
