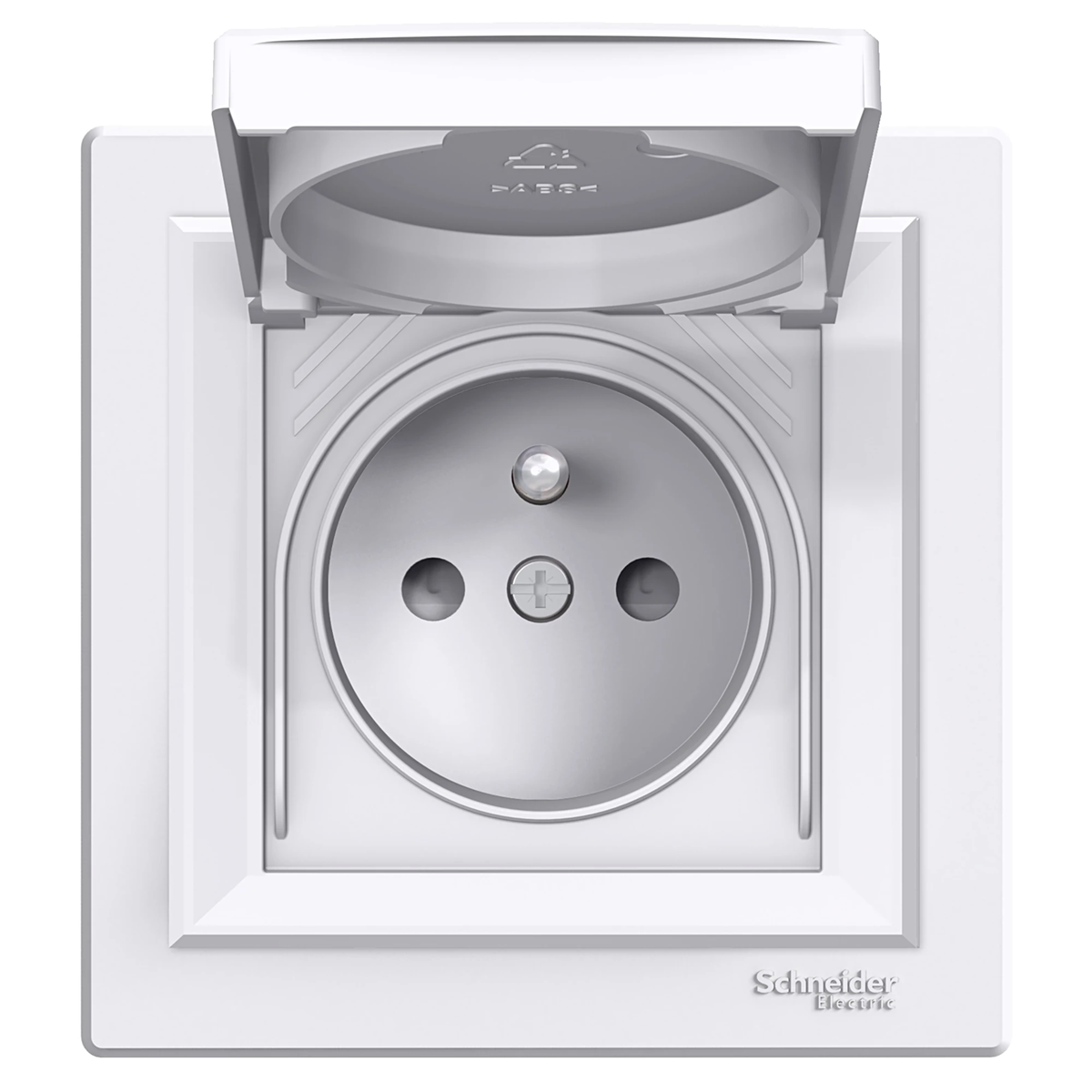

ASFORA Socket 2P + PE IP44 for frame system with white frame EPH2800621

local index:
MEB026SCHN
Catalog No:
EPH2800621
EAN code:
3606481166210
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 48
Number of sockets: 1
Color: White
Price:
6,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 63 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hermetic electric socket from the Asfora series, from the manufacturer Schenider Electric The product catalog number is EPH2800621 .



FEATURES

  • 2P+PE.
  • Z grounding; grounding pin.
  • With shutters for current paths.
  • For frame system.
  • < strong>Complete product.
  • Socket color white.
  • Lid white.
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP44.
  • flush installation.
  • The length of the insulation stripped from the cable is 13 mm.



SERIES DESCRIPTION

Asfora is a series of electrical installation equipment made of high-quality materials - durable and more resistant to discoloration. Hermetic electrical socket characterizes the features of this unique series .

Technical data

  • Depth [mm]
    48
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    ASPHORA
  • Width [mm]
    83
  • Ground
    Hurt
  • Surface finish
    Shiny
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • Protrusion depth [mm]
    17
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP44
  • Type
    Flush-mounted
  • Height [mm]
    83
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Socket color
  • Exact material
    ABS PC

Other technical data

  • Protective contact
    Yes
  • Number of active contacts (round)
    1
  • With signal lamp
    No
  • Number of units
    1
  • Number of phases
    2.0
  • With hinged lid
    Yes
  • Label space/information surface
    No
  • RAL-number (similar)
    9003
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Device width
    83 mm
  • Device depth
    48 mm
  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • Connection type
    Other
  • With enhanced contact protection
    Yes
  • Colour
    White
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP44
  • Device height
    83 mm
  • Min. depth of built-in installation box
    40.0 mm
