el12 Electrical equipment Sockets Flush-mounted sockets
el12 Electrical equipment Sockets Hermetic electrical sockets

ASFORA SCHUKO single socket outlet IP44 anthracite EPH3100371

local index:
MEB012SCHN
Catalog No:
EPH3100371
EAN code:
3606480729973

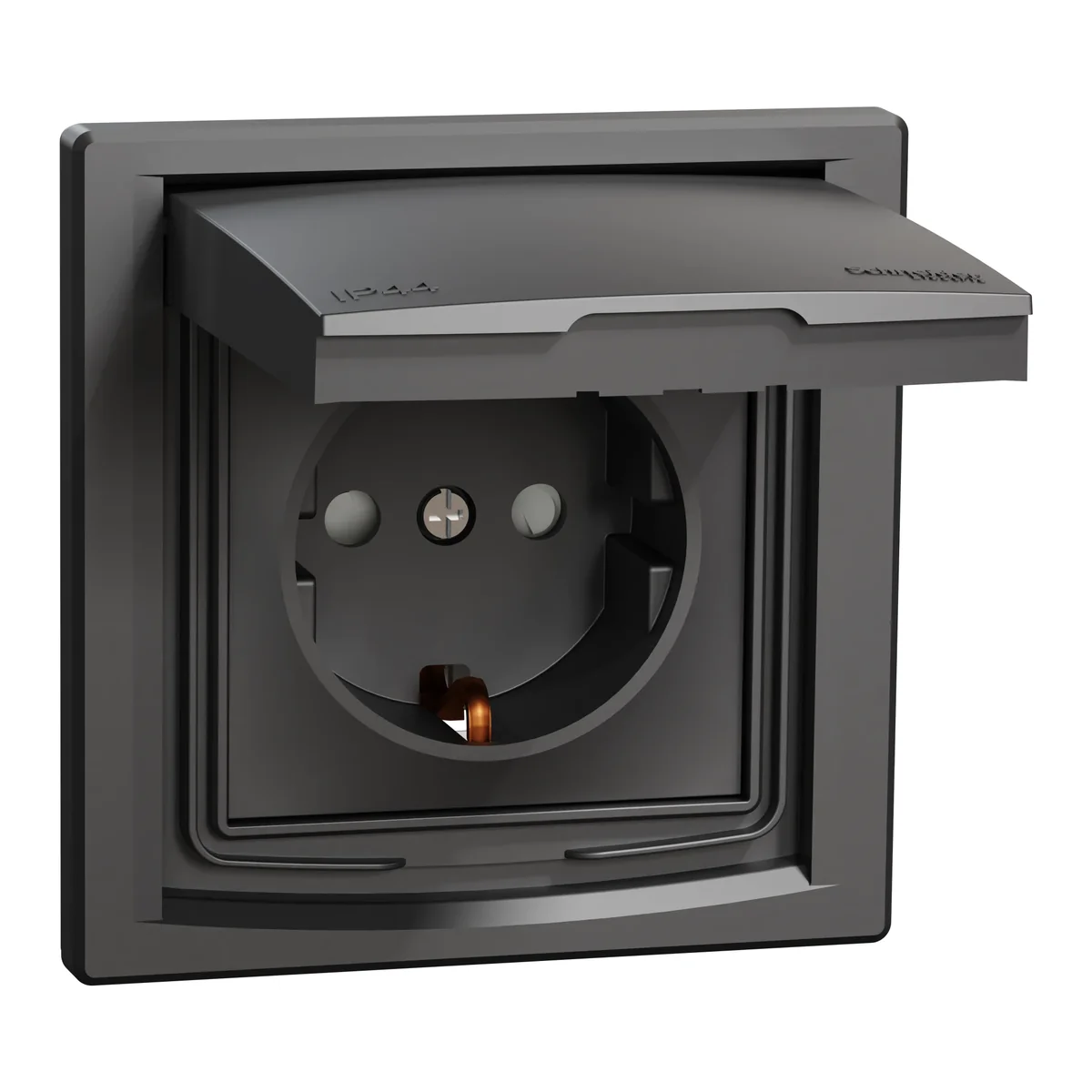

ASFORA SCHUKO single socket outlet IP44 anthracite
ASFORA SCHUKO single socket outlet IP44 anthracite

Click on the photo to enlarge

Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 48
Number of sockets: 1
Color: Graphite
See full description
Price:
10,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Files to download

Product description

Single SCHUKO socket



SERIES DESCRIPTION

Asfora electrical installation equipment means high-quality sockets and switches at an attractive price . There are not only standard electrical sockets available, but also TV/R/SAT sockets, loudspeaker sockets, USB sockets, IP44 socket for multiple frames, blinds control switches and rotary dimmers. Asfora electrical installation equipment is made of materials with increased resistance to ultraviolet radiation. This guarantees longer durability and less susceptibility to discoloration.

Technical data

  • Depth [mm]
    48
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    ASPHORA
  • Width [mm]
    83
  • Ground
    schuko
  • Power range [W]
    3680
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Socket color
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP44
  • Type
    Flush-mounted
  • Height [mm]
    83
  • Accurate color
    anthracite
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    NO
  • Exact material
    ABS PC

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    0
  • Number of phases
    1
  • With hinged lid
    Yes
  • Label space/information surface
    No
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP44
  • Device width
    83 mm
  • Device depth
    48 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    0
  • With signal lamp
    No
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • Connection type
    Other
  • With enhanced contact protection
    Yes
  • Colour
    Anthracite
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    Other
  • Device height
    83 mm
  • Min. depth of built-in installation box
    40.0 mm
