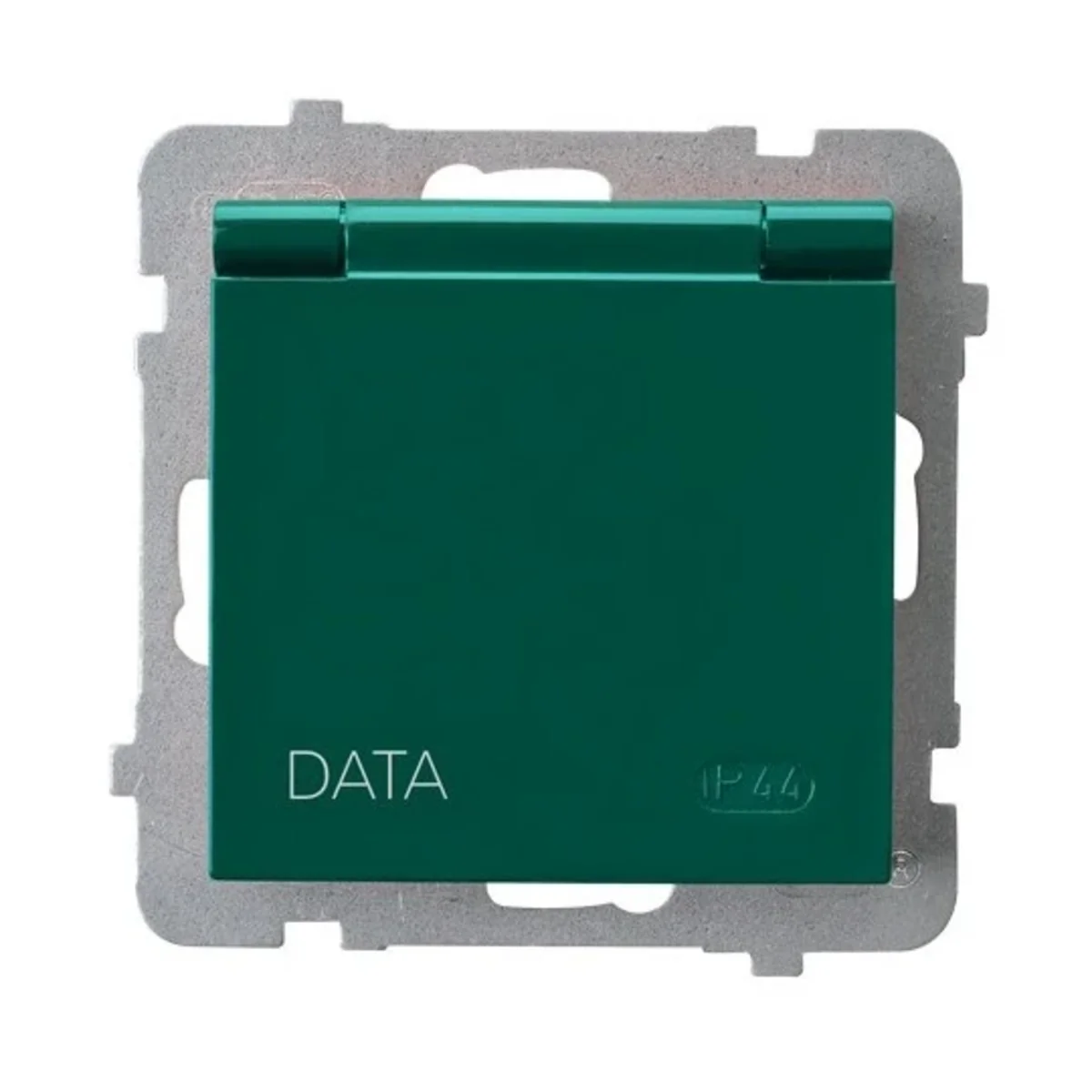

AS Splash-proof socket with grounding DATA IP44 green flap GPH-1GZD/M/12/W

Indice locale:
MEB197OSPE
Numero di catalogo:
GPH-1GZD/M/12/W
Codice EAN:
5906729008448
Produttore: OSPEL
Depth [mm]: 41
Number of sockets: 1
Color: Green
Prezzo:
28,35 zł
gross / pezzi
(inclusa IVA 23%)
fino a una settimana
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Hermetic electrical socket from the As series, from the manufacturer Ospel.

FEATURES

  • Single.
  • With grounding.
  • DATA.
  • Threaded terminals.
  • To be equipped with a frame.
  • Flap in the color of the socket.
  • Rated current 16A.
  • Rated voltage 230V.
  • Protection degree IP44.
  • Mounting flush-mounted.
  • Dimensions: 71 x 71 mm (height x width).

SERIES DESCRIPTION

The As series is a geometric form broken by the delicate curves of the frames. It is a combination of dynamic design and neutral colors that will work well in any interior. The highest quality materials and timeless design allow us to create a product that will decorate your interior for many years.

As is the perfect solution for those who value true classics. Both the main elements and the complementary frames are based on a square with strongly defined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the decisive, so the color options are also limited and strongly correspond to the classic style.

Dati tecnici

  • Depth [mm]
    41
  • Color
    Green
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP44
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • Exact material
    Plastic Metal
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    DATE
  • Rated current [A]
    16
  • Family
    AS
  • Width [mm]
    71
  • Ground
    Hurt
  • Surface protection
    Natural
  • Mounting depth [mm]
    25
  • Standard
    European
  • On the DATA key
    Yes
  • Lid color
    Socket color

Altri dati tecnici

  • Model
    Multi-standard socket
  • Number of modules (module system)
    1
  • Connection type
    Screwed terminal
  • Label space/information surface
    No
  • Eject-mechanism
    No
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Nominal voltage
    250 V
  • Device width
    71 mm
  • Device depth
    41 mm
  • With signal lamp
    No
  • Imprint/indication
    Degree of protection (IP)
  • With hinged lid
    Yes
  • Colour
    Other
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Nominal current
    16 A
  • Suitable for degree of protection (IP)
    IP44
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm

Dettagli del produttore

  • Produttore
    OSPEL S.A.
  • Indirizzo
    42-436 Wierbka Główna 128 Polska

Imballaggio sfuso

Una specie di pacchetto Pudełko
Quantità 10 pezzi
Larghezza (m) 0,162
Lunghezza (m) 0,290
Profondità (m) 0,090
