AS DATA splash-proof socket with grounding with IP44 authorization key, smoke flap, green GPH-1GZK/M/12/D

Lokaler Index:
MEB200OSPE
Katalognummer:
GPH-1GZK/M/12/D
EAN-Code:
5906729008455
Hersteller: OSPEL
Depth [mm]: 41
Number of sockets: 1
Color: Green
Preis:
32,26 zł
gross / stk.
(inklusive MwSt 23%)
bis zu einer Woche
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

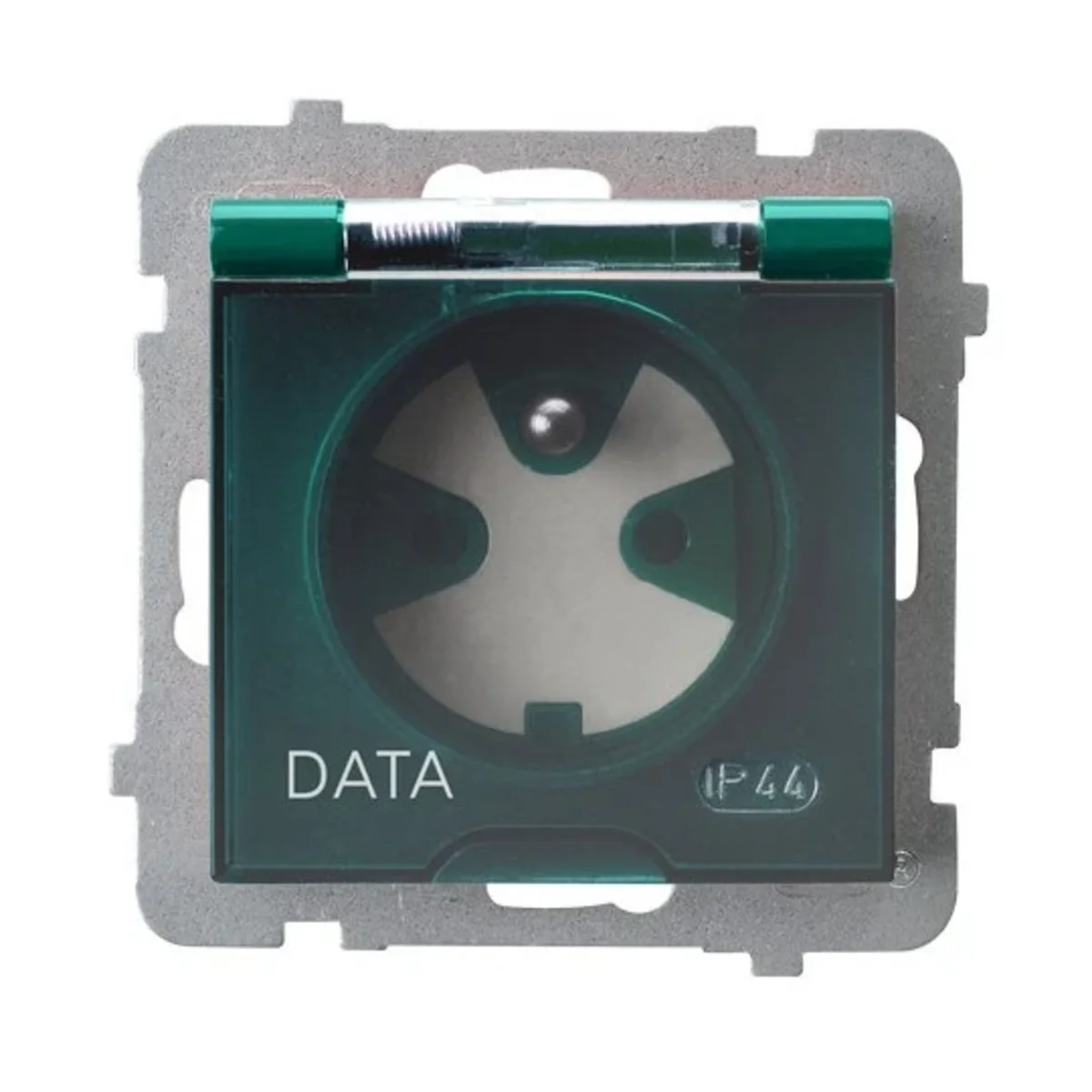

Hermetic electrical socket from the As series, from the manufacturer Ospel.

FEATURES

  • Single.
  • With grounding.
  • DATA.
  • With authorization key.
  • Threaded terminals.
  • To be equipped with a frame.
  • Smoke-colored flap.
  • Rated current 16A.
  • Rated voltage 230V.
  • Protection degree IP44.
  • Mounting Concealed.
  • Dimensions: 71 x 71 mm (height x width).

SERIES DESCRIPTION

The As series is a geometric form broken by the delicate curves of the frames. It is a combination of dynamic design and neutral colors that will work in any interior. The highest quality materials and timeless design have allowed us to create a product that will decorate your interior for many years.

As is the perfect solution for those who value true classics. Both the main elements and the complementary frames are based on a square with strongly defined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the decisive, so the color options are also limited and strongly reflect the classic style.

Technische Daten

  • Depth [mm]
    41
  • Color
    Green
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP44
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • Exact material
    Plastic Metal
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    DATE
  • Rated current [A]
    16
  • Family
    AS
  • Width [mm]
    71
  • Ground
    Hurt
  • Surface protection
    Natural
  • Mounting depth [mm]
    25
  • Standard
    European
  • On the DATA key
    Yes
  • Lid color
    Smoky

Weitere technische Daten

  • Model
    Multi-standard socket
  • With signal lamp
    No
  • Imprint/indication
    Degree of protection (IP)
  • With hinged lid
    Yes
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Anti-bacterial treatment
    No
  • With on/off switch
    No
  • Nominal current
    16 A
  • Suitable for degree of protection (IP)
    IP44
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm
  • Number of active contacts (round)
    1
  • Number of modules (module system)
    1
  • Connection type
    Screwed terminal
  • Eject-mechanism
    No
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • With loop through function
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Device width
    71 mm
  • Device depth
    41 mm

Hersteller-Details

  • Hersteller
    OSPEL S.A.
  • Adresse
    42-436 Wierbka Główna 128 Polska

Großpackungen

Eine Art Paket Pudełko
Menge 10 stk.
Breite (m) 0,710
Länge (m) 0,710
Tiefe (m) 0,250
