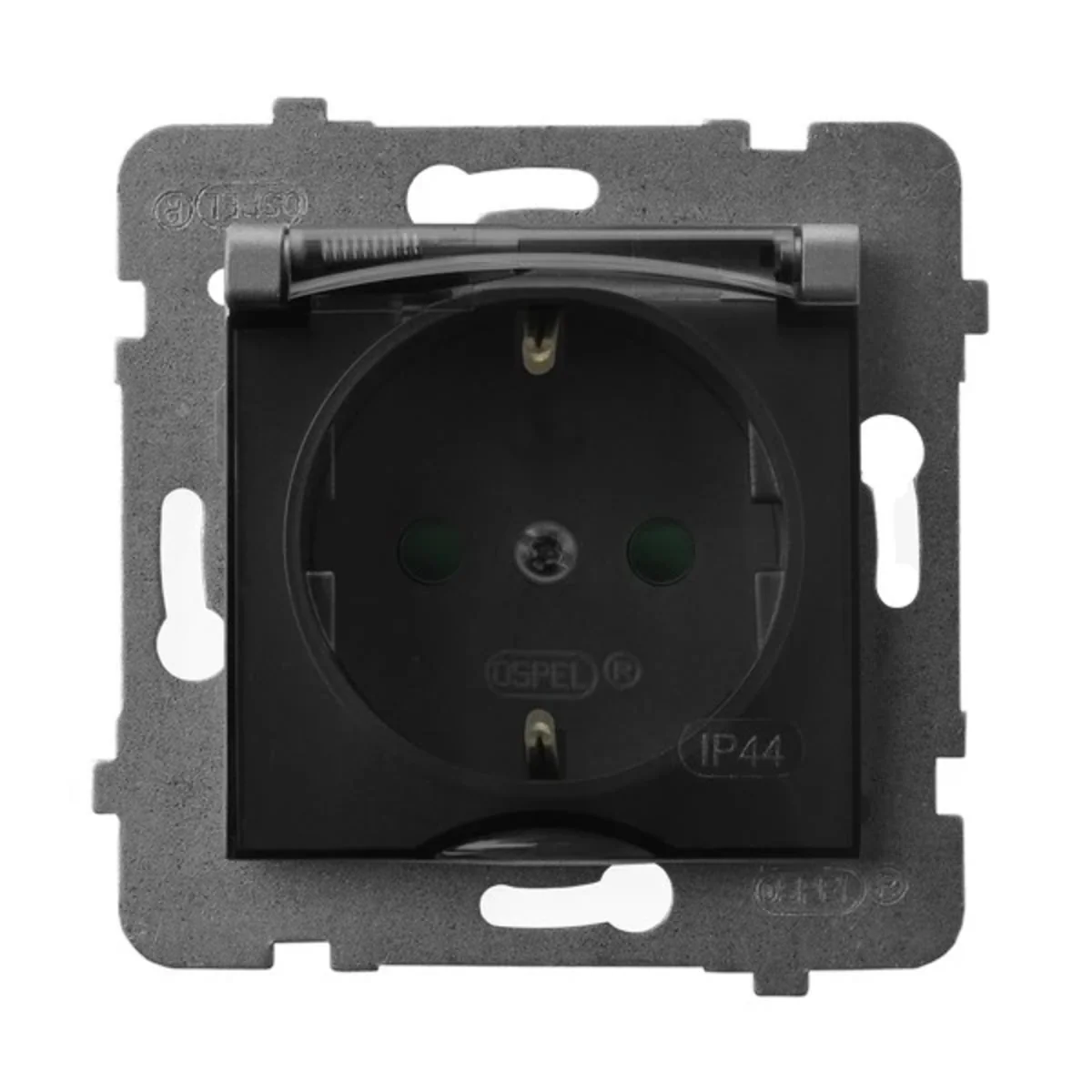

ARIA Splashproof socket with Schuko grounding and shutters IP44 gray mat GPH-1USP/M/70/D
local index:
MEB046OSPE
Catalog No:
GPH-1USP/M/70/D
EAN code:
5907577485061
Price:
7,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Hermetic socket equipped with a flap, with schuko grounding, with shutters for current paths. A frame should be used.
SERIES DESCRIPTION
The Aria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Backlighting of connectors in the Aria series is not only practical, but also stylistically interesting. The frame surrounding the keys gives a visually attractive effect, and we can choose from as many as 7 backlight colors.
Technical data
-
Depth [mm]45
-
ColorGray
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilyARIA
-
Width [mm]71
-
Groundschuko
-
Surface protectionvarnishing
-
BacklightNO
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
Exact materialPlastic Metal
-
Number of sockets1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeElectrical hermetic
-
Level of securityIP44
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate colorgray matt
-
Mounting depth [mm]28
-
StandardEuropean
-
On the DATA keyNO
-
Lid colorTransparent
-
PKWIU27.33.13.0
Other technical data
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Okrągły styk ochronnyNo
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of modules (module system)1
-
Connection typeScrewed terminal
-
With enhanced contact protectionYes
-
ColourGrey
-
TransparentYes
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK03
-
Device height75 mm
-
Protective contactYes
-
Number of active contacts (round)0
-
With signal lampNo
-
Number of units1
-
Number of socket outlets switchable0
-
With hinged lidYes
-
Label space/information surfaceNo
-
RAL-number (similar)7031
-
LockableYes
-
Insulated mountingNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency0 ... 0 Hz
-
Suitable for degree of protection (IP)IP44
-
Device width75 mm
-
Device depth42 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 4 pcs. |
| Width (m) | 0,140 |
| Length (m) | 0,162 |
| Depth (m) | 0,090 |
