AKCENT Splashproof socket with grounding beige GPH-1AZ/01/D

Name: AKCENT Splashproof socket with grounding beige
Brand: OSPEL
SKU: MEB003OSPE
Price: 26.24 PLN
Availability: BackOrder

Index local:

MEB003OSPE

Numéro de catalogue:

GPH-1AZ/01/D

Code EAN:

5907577413613

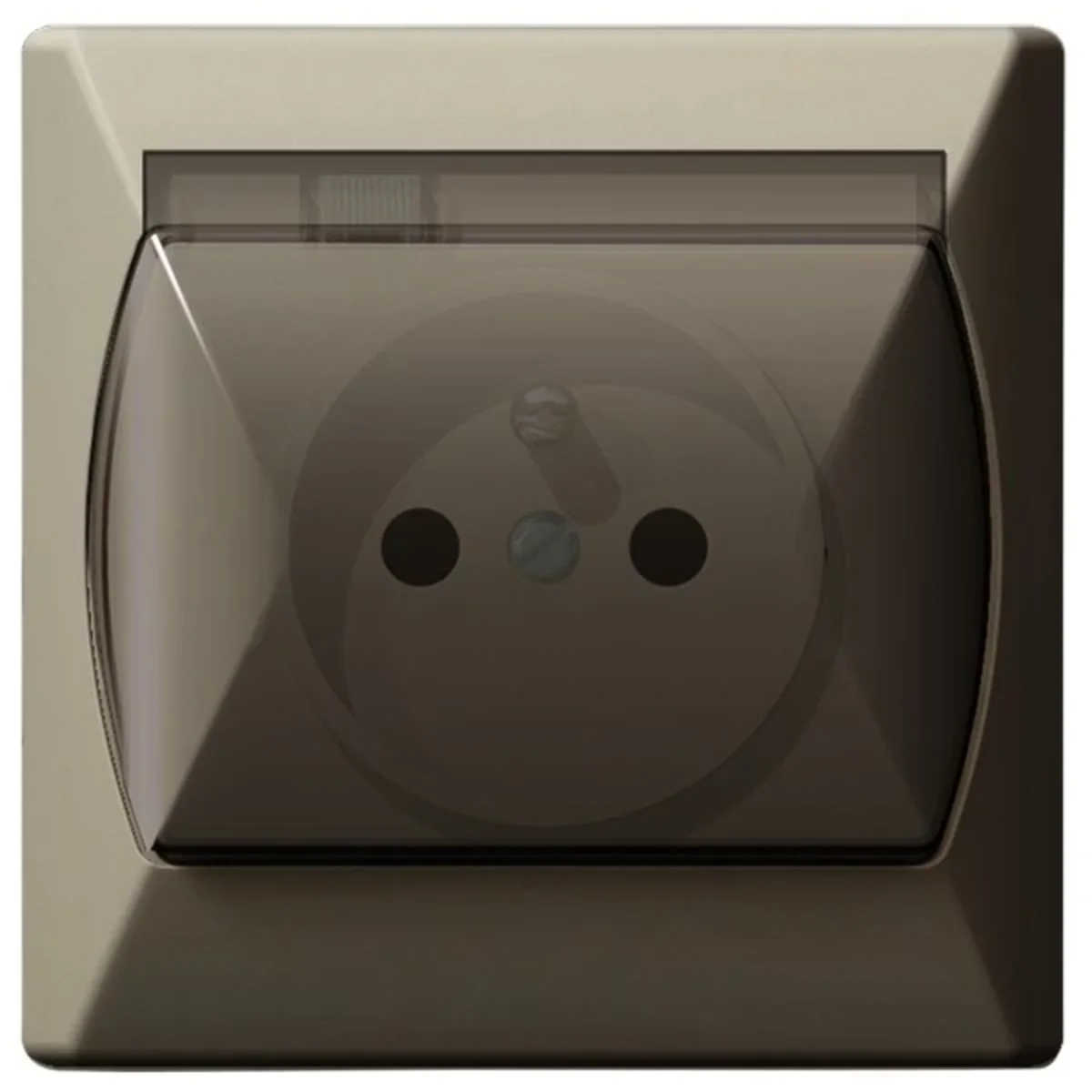

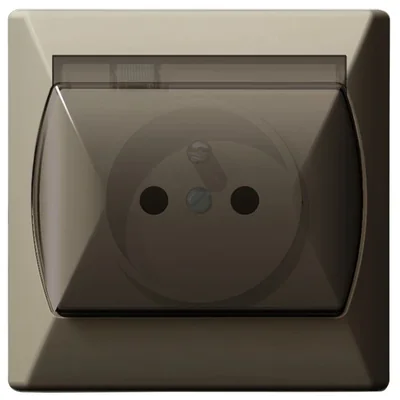

AKCENT Splashproof socket with grounding beige

Cliquer sur la photo pour l'agrandir

Producteur: OSPEL

Depth [mm]: 42

Number of sockets: 1

Color: Beige

Voir la description complète

Prix:

26,24 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 2 semaines

Sur commande

Quantité pcs.

(plusieurs:

1

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac

Description du produit

Hermetic socket equipped with a flap, with schuko grounding.

SERIES DESCRIPTION

Products of < series strong>Accent are complete sockets equipped with frames. They are mounted flush. Akcent is characterized by an original style and adapts to any interior.

Données techniques

Depth [mm]

42
Color

Beige
Material

Plastic
Installation

Flush-mounted
Rated current [A]

16
Family

ACCENT
Width [mm]

85
Ground

Hurt
Surface protection

Natural \ …
Mounting depth [mm]

26
Standard

European
On the DATA key

NO
Lid color

Transparent
PKWIU

27.33.13.0

Number of sockets

1
Shape

Square
Fixing

claws screws
Rated voltage [V]

230
Type

Electrical hermetic
Level of security

IP44
Type

Flush-mounted
Height [mm]

85
Backlight

NO
Terminal type

Threaded
Shutters of current paths

NO
For the frame system

NO
Exact material

Plastic Metal

Autres données techniques

Model

Multi-standard socket
Number of active contacts (flat)

0
Number of modules (module system)

0
Imprint/indication

Degree of protection (IP)
With hinged lid

Yes
Label space/information surface

No
RAL-number (similar)

1001
Lockable

Yes
Insulated mounting

No
With orientation lighting

No
Fault current protection

No
Mounting method

Flush-mounted
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
With loop through function

No
Rotated central insert

No
Nominal voltage

250 V
Rated fault current

0 mA
Impact strength

IK03
Device height

85 mm
Min. depth of built-in installation box

60 mm

Number of active contacts (round)

1
With signal lamp

No
Number of socket outlets switchable

0
Connection type

Screwed terminal
With enhanced contact protection

No
Colour

Beige
Transparent

Yes
Eject-mechanism

No
With function lighting

No
Over voltage protection

No
With miniature fuse

No
Type of fastening

Mounting with claw and screw
Material quality

Thermoplastic
Surface protection

Untreated
Anti-bacterial treatment

No
With on/off switch

No
Nominal current

16 A
Frequency

0 ... 0 Hz
Suitable for degree of protection (IP)

IP44
Device width

85 mm
Device depth

42 mm

Détails du fabricant

Producteur

OSPEL S.A.
Adresse

42-436 Wierbka Główna 128 Polska
E-mail

ospel@ospel.com.pl

Emballage en vrac

Une sorte de paquet	Pudełko
Quantité	10 pcs.
Largeur (m)	0,850
Longueur (m)	0,850
Profondeur (m)	0,260
