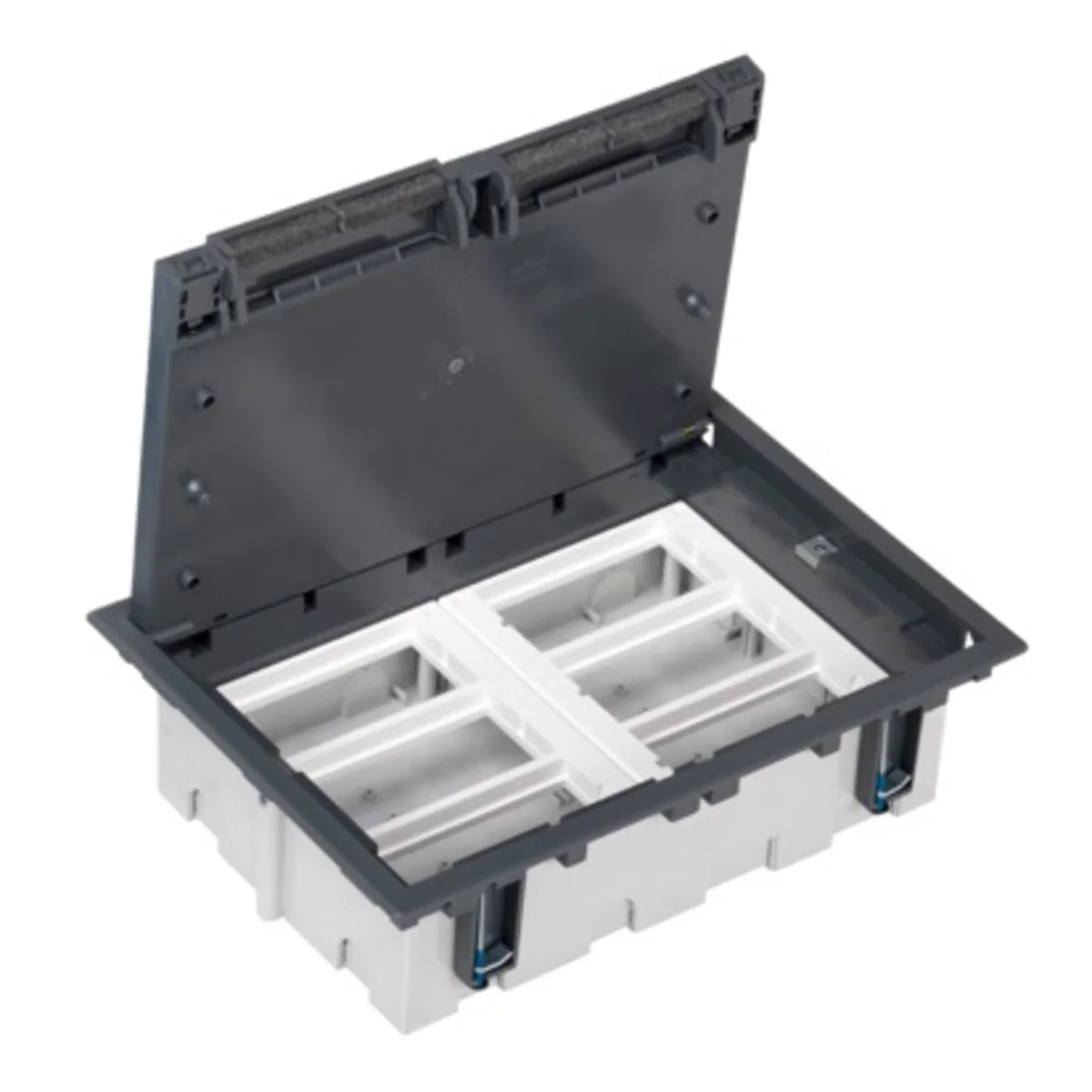

6-module floor box, 12x K45 + 2x SM302/9, graphite gray SF610/1

Indice locale:
MVD053KONT
Numero di catalogo:
SF610/1
Codice EAN:
8426436052611
Produttore: KONTAKT-SIMON
Depth [mm]: 93
Color: Gray
Maximum number of CIMA modules: 6
Prezzo:
78,70 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 2 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto


Underfloor installations are currently the standard for electrical and teletechnical installations

in modern workplaces. The use of SF series floor boxes enables simple and quick access to utilities in places away from the walls.



Thanks to floor installations, it is possible to keep order related to the eternal problem of cabling in the workplace.



Inspection covers are also available in the floor system of the SF series. Covers are successfully used in places where there is a need for access to other types of underfloor installations, e.g. underfloor heating valves.



The SF series floor boxes come in 5 sizes per 2, 3, 4, 6 CIMA modules or similarly 2, 4, 6, 8, 12 K45 modules (45 x 45 mm) after using CIMA adapters

Two versions of the depth: 70 mm (adjustable to 105 mm) and 93 mm (adjustable up to 128 mm)

The boxes are equipped with handles positioning and fixing the box in the technical (raised) floor

For poured floors, it is recommended to use dedicated cassettes adjustable to a plastic or metal spout. Both cassettes have knockouts for cables

and wires through an underfloor duct or conduit

Adjustment of cassettes for poured floors enables adjustment and leveling to the floor

Two-point, safe closure of the lid of the SF floor box requires the simultaneous release of both bolts

The cover includes an outlet for wires finished with a sponge protecting the inside of the box against dust and dirt

The lids of boxes and revisions can be finished with the floor surface up to 5mm thick. In the case of materials

of greater thickness, it is possible to use finishing caps made of plastic in the color of the can

Included separation of circuits

Colours: gray and graphite

IP40 degree of protection

IK08 impact resistance

Dati tecnici

  • Depth [mm]
    93
  • Maximum number of CIMA modules
    6
  • Family
    SIMON CONNECT
  • PKWIU
    27.12.40.0
  • Color
    Gray
  • Maximum number of K45 modules
    12
  • Accurate color
    Gray graphite

Altri dati tecnici

  • Number of device cups
    12
  • Length built-in dimension
    210 mm
  • Built-in diameter
    210 mm
  • Colour
    Grey
  • Width built-in dimension
    210 mm

Dettagli del produttore

Imballaggio sfuso

Una specie di pacchetto Paczka Karton
Quantità 1 pezzi 1 pezzi
Peso (kg) 2,248 2,190
Larghezza (m) - 0,230
Lunghezza (m) - 0,332
Profondità (m) - 0,098
