Underfloor installations are currently the standard for electrical and teletechnical installations in modern workplaces. The use of SF series floor boxes enables simple and quick access to media in places away from the walls.
Thanks to floor installations, it is possible to keep order related to the eternal problem of cabling in the workplace.
In the floor system of the series SF there are also inspection covers. The covers are successfully used in places where there is a need for access to other types of underfloor installations, e.g. underfloor heating valves.

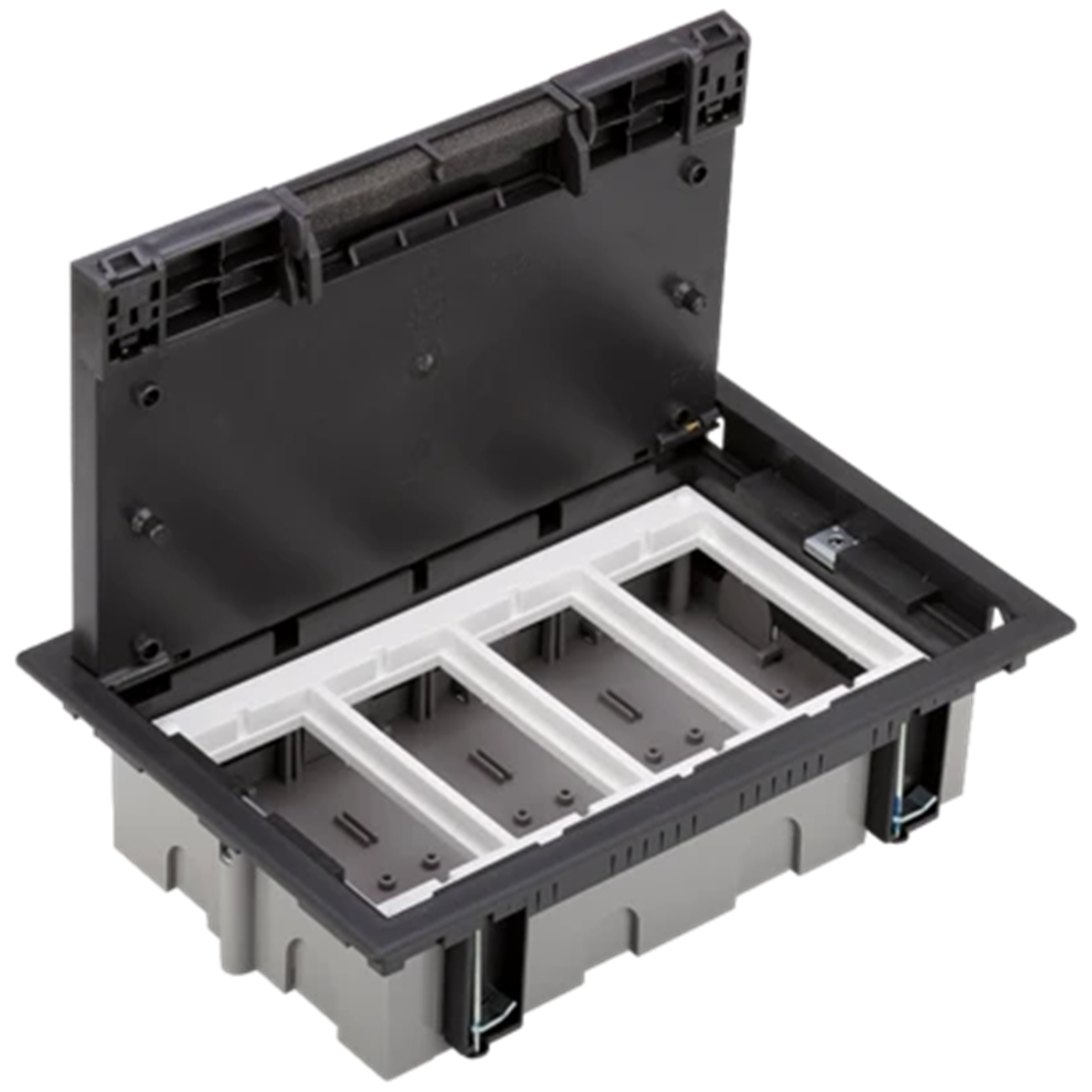

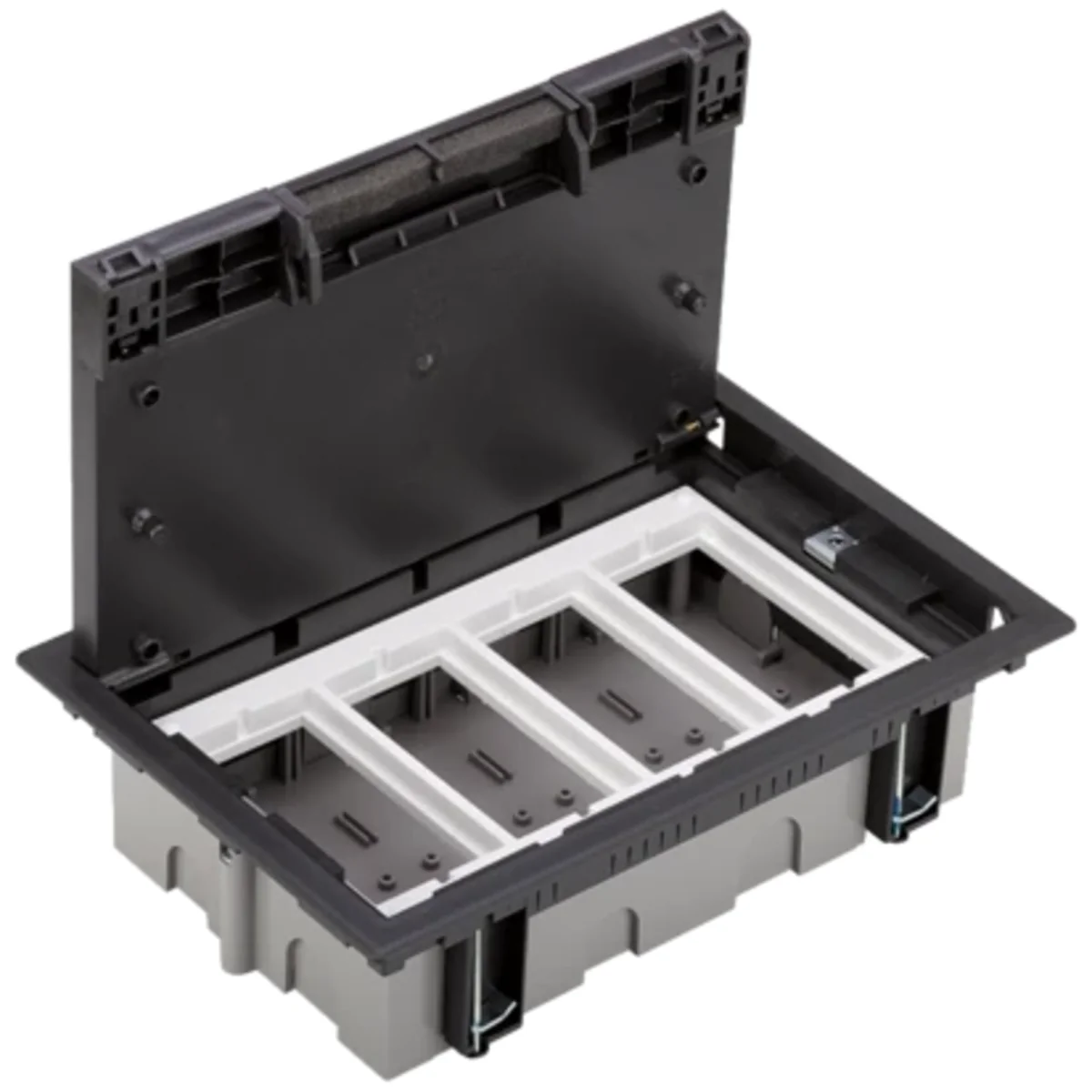

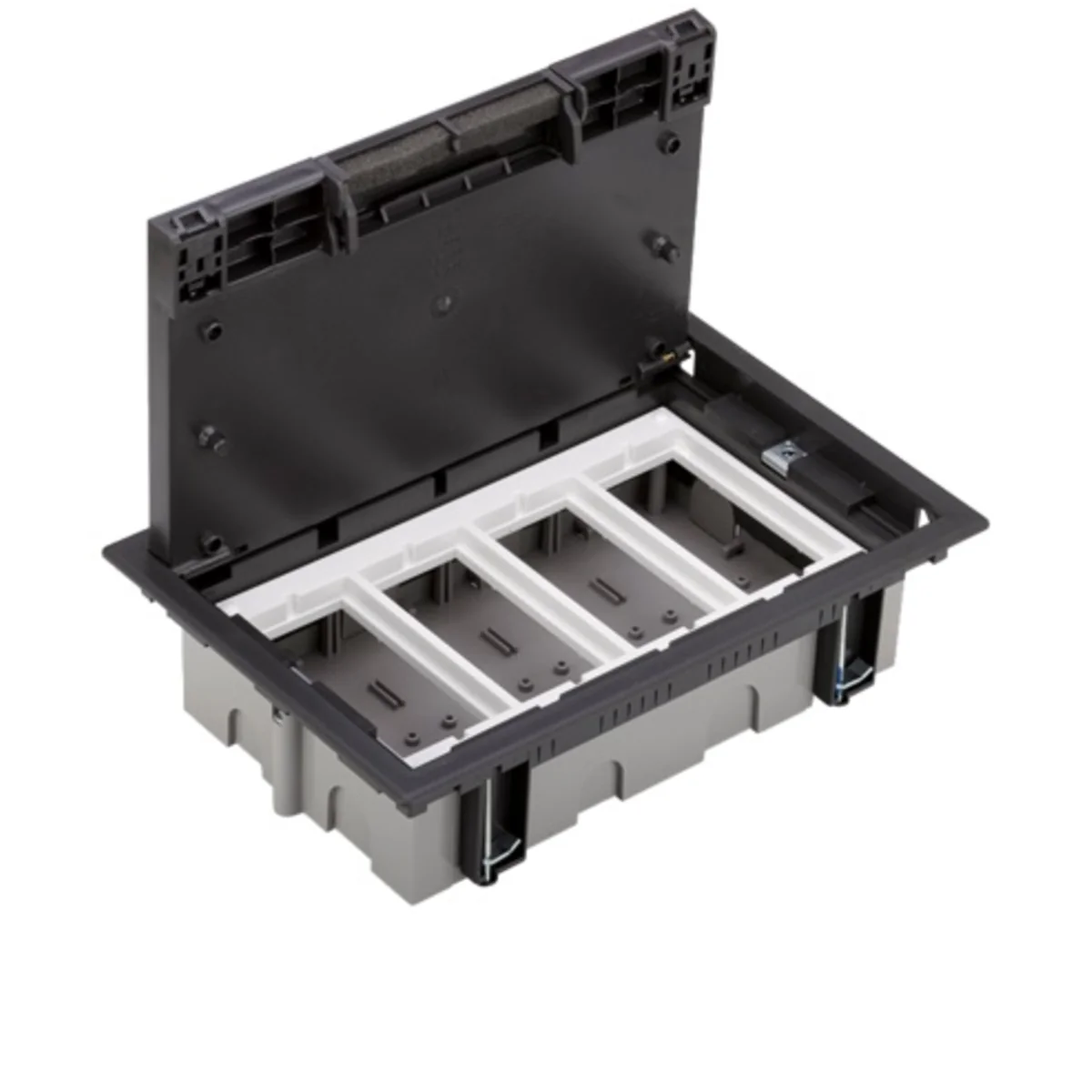

Floor boxes of the SF series are available in 5 sizes for 1, 2, 3, 4, 6 CIMA modules or similarly 2, 4, 6, 8, 12 K45 modules (45 x 45 mm) after using CIMA adapters Two versions of the depth: 70 mm (adjustable to 105 mm) and 93 mm (adjustable to 128 mm) Boxes are equipped with handles positioning and fixing the box in the technical floor (raised) For poured floors, it is recommended to use dedicated adjustable cassettes for plastic or metal screed. Both cassettes have knockouts for cables and wires through an underfloor duct or conduit Adjustment of cassettes for screed floors enables adjustment and leveling against the floor Two-point, safe closing of the lid of the SF floor box requires the simultaneous release of both bolts Lid includes an outlet for wires finished with a sponge protecting the inside of the box against dust and dirt Lids of boxes and revisions can be finished with a floor surface up to 5mm thick. In the case of materials of greater thickness, it is possible to use plastic finishing caps in the color of the box Included circuit separation Colours: gray and graphite Protection level IP40 Impact resistance IK08
