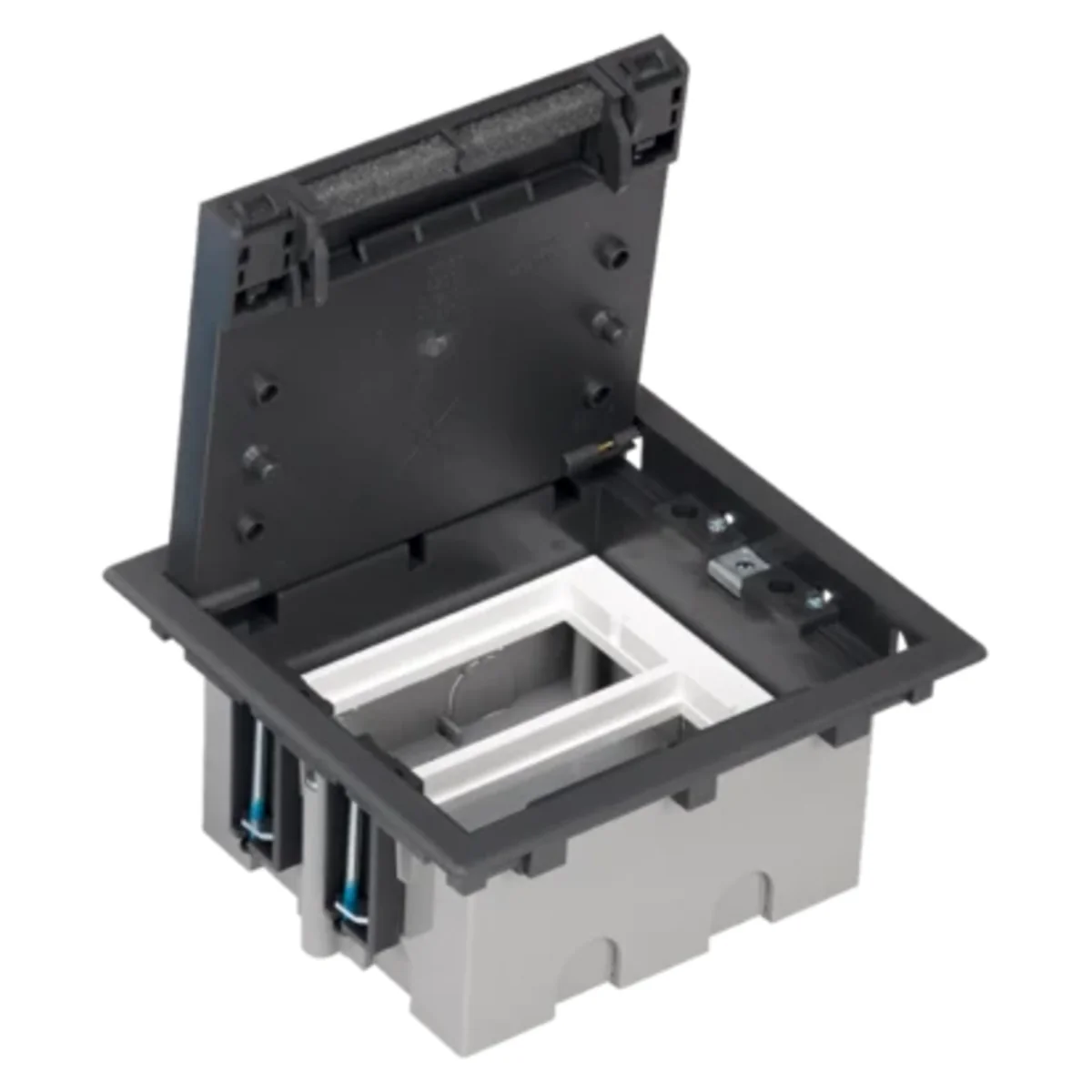

2-module floor box, 4x K45 + SM202/9, graphite gray SF210/14

local index:
MVD037KONT
Catalog No:
SF210/14
EAN code:
8426436052567
Manufacturer: KONTAKT-SIMON
Depth [mm]: 93
Color: Gray
Maximum number of CIMA modules: 2
Price:
51,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Underfloor installations are currently the standard for electrical and teletechnical installations
in modern workplaces. The use of SF series floor boxes enables simple and quick access to media in places away from the walls.

Thanks to floor installations, it is possible to keep order related to the eternal problem of cabling in the workplace.

In the floor system of the series SF there are also inspection covers. The covers are successfully used in places where there is a need for access to other types of underfloor installations, e.g. underfloor heating valves.

Floor boxes of the SF series are available in 5 sizes for 1, 2, 3, 4, 6 CIMA modules or similarly 2, 4, 6, 8, 12 K45 modules (45 x 45 mm) after using CIMA adapters
Two versions of the depth: 70 mm (adjustable to 105 mm) and 93 mm (adjustable to 128 mm)
Boxes are equipped with handles positioning and fixing the box in the technical floor (raised)
For poured floors, it is recommended to use dedicated adjustable cassettes for plastic or metal screed. Both cassettes have knockouts for cables
and wires through an underfloor duct or conduit
Adjustment of cassettes for screed floors enables adjustment and leveling against the floor
Two-point, safe closing of the lid of the SF floor box requires the simultaneous release of both bolts
Lid includes an outlet for wires finished with a sponge protecting the inside of the box against dust and dirt
Lids of boxes and revisions can be finished with a floor surface up to 5mm thick. In the case of materials
of greater thickness, it is possible to use plastic finishing caps in the color of the box
Included circuit separation
Colours: gray and graphite
Protection level IP40
Impact resistance IK08

Technical data

  • Depth [mm]
    93
  • Maximum number of CIMA modules
    2
  • Family
    SIMON CONNECT
  • PKWIU
    27.12.40.0
  • Color
    Gray
  • Maximum number of K45 modules
    4
  • Accurate color
    Gray graphite

Other technical data

  • Number of device cups
    4
  • Width built-in dimension
    170 mm
  • Length built-in dimension
    170 mm
  • Built-in diameter
    170 mm

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 1 pcs.
Weight (kg) 1,150 1,150 1,050
Width (m) - - 0,190
Length (m) - - 0,175
Depth (m) - - 0,100
