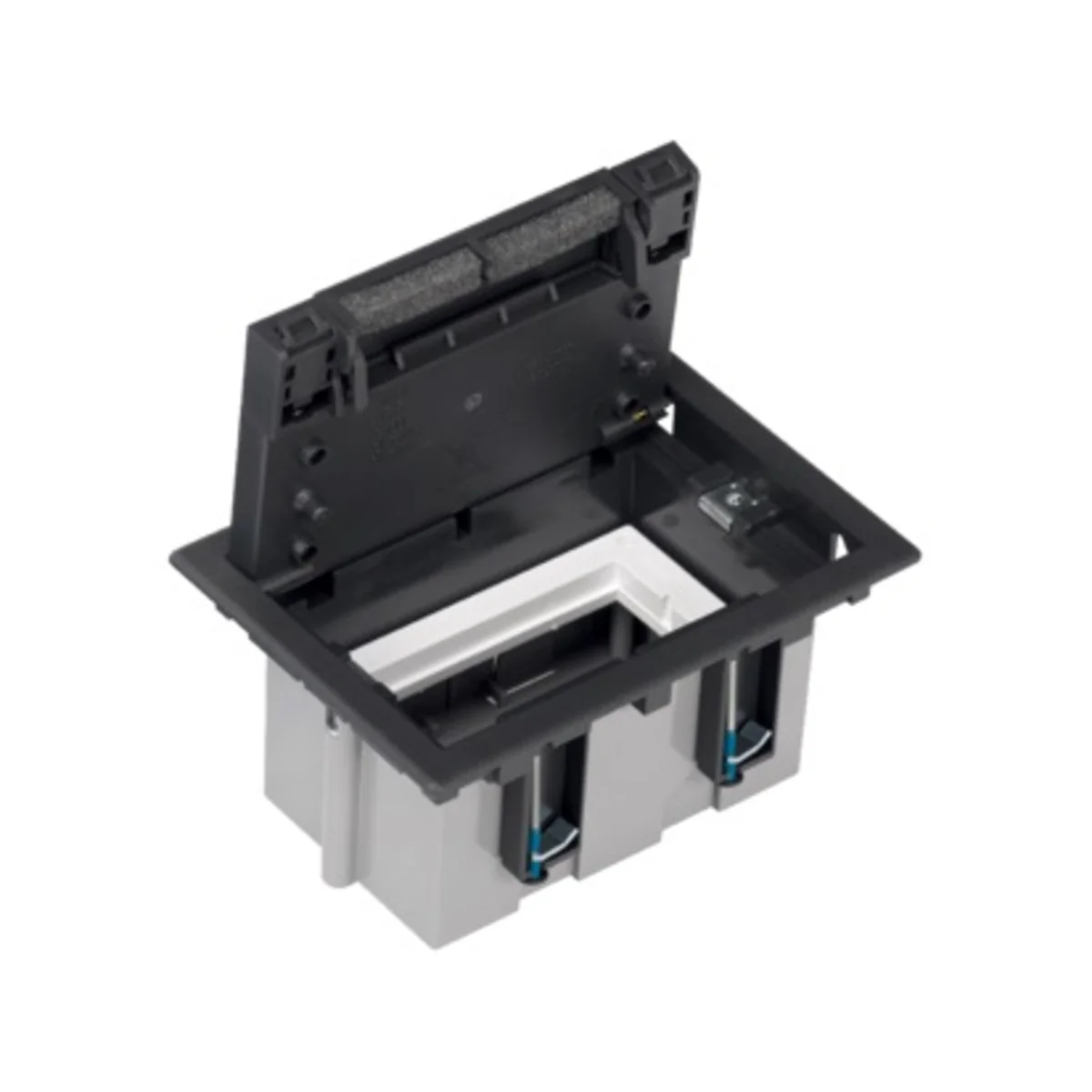

1-module floor box, 2x K45 + SM102/9, graphite gray SF110/14

Underfloor installations are currently the standard for electrical and teletechnical installations
in modern workplaces. The use of SF series floor boxes enables simple and quick access to media in places away from the walls.

Thanks to floor installations, it is possible to keep order related to the eternal problem of cabling in the workplace.

In the floor system of the series SF there are also inspection covers. Covers are successfully used in places where there is a need for access to other types of underfloor installations, e.g. underfloor heating valves.

Floor boxes of the SF series are available in 5 sizes for 1, 2, 3, 4, 6 CIMA modules or similarly 2, 4, 6, 8, 12 K45 modules (45 x 45 mm) after using CIMA adapters
Two versions of the depth: 70 mm (adjustable to 105 mm) and 93 mm (adjustable to 128 mm)
Boxes are equipped with handles positioning and fixing the box in the technical floor (raised)
For poured floors, it is recommended to use dedicated adjustable cassettes for plastic or metal screed. Both cassettes have knockouts for cables
and wires through an underfloor duct or conduit
Adjustment of cassettes for screed floors allows adjustment and leveling with respect to the floor
Two-point, safe closing of the cover of the SF floor box requires simultaneous release of both bolts
Lid includes an outlet for wires finished with a sponge protecting the inside of the box against dust and dirt
Lids of boxes and revisions can be finished with a floor surface up to 5mm thick. In the case of materials
of greater thickness, it is possible to use plastic finishing caps in the color of the box
Included circuit separation
Colours: gray and graphite
Protection level IP40
Impact resistance IK08
