Adapter for 4-pole 40 A differential current indication 111760

local index:
ABO004MOEL
Catalog No:
111760
EAN code:
4015081113101
Manufacturer: EATON
Tenderness: Sensitive to alternating/pulsed current
Number of poles: 4
Rated current [A]: 40
Price:
381,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

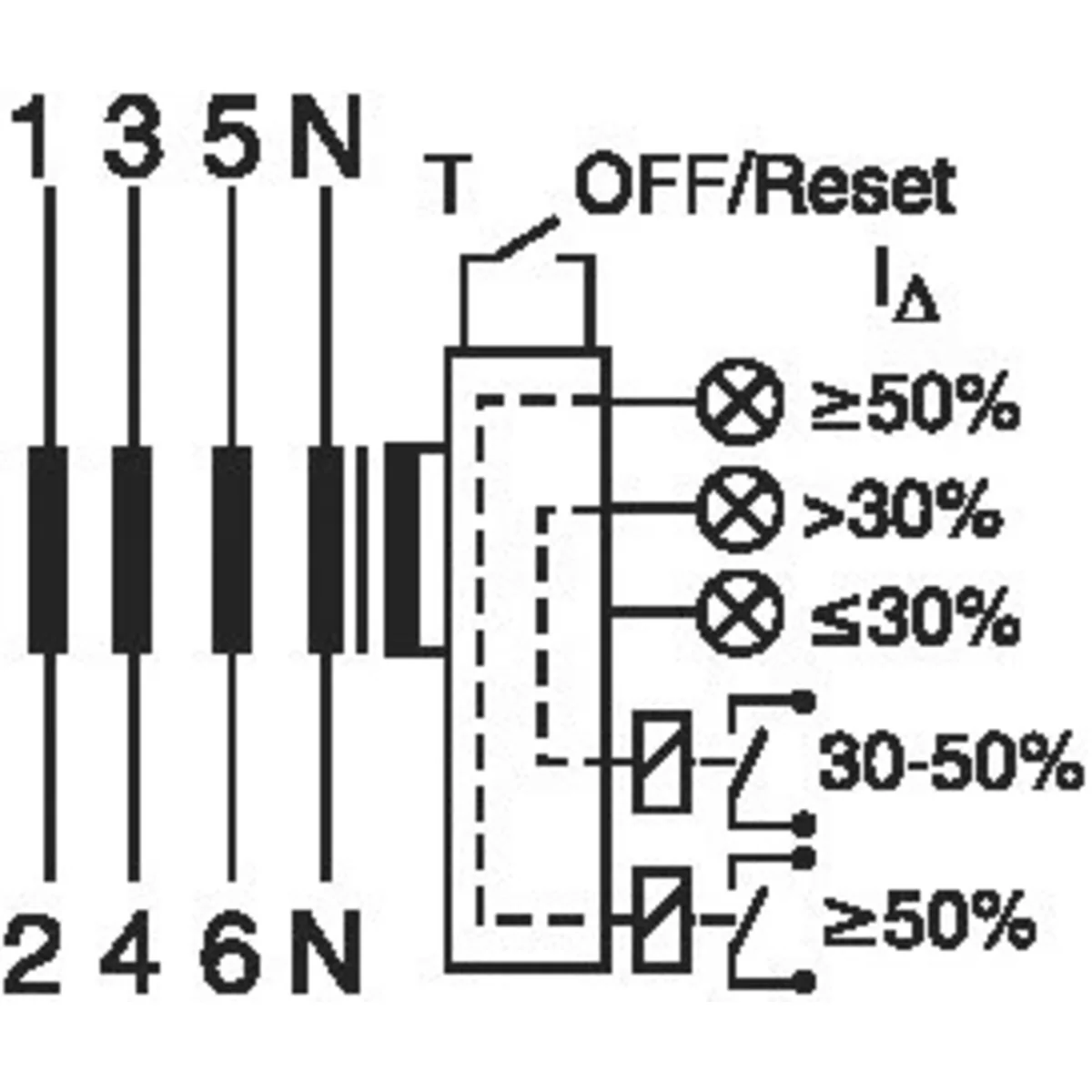

Reliable, universal residual current supervision, freely selectable FI characteristics and sensitivity, compact design, built-in converter, DIN mounting, shape and busbar compatible with Xpole devices, residual current status read locally on 3 diodes, 2 potential-free signaling contacts

Technical data

  • Tenderness
    Sensitive to alternating/pulsed current
  • Rated current [A]
    40
  • Number of poles
    4
  • Rated switching capacity [kA]
    10

Other technical data

  • Number of poles
    4
  • Rated current
    40 A
  • Rated insulation voltage Ui
    440 V
  • Mounting method
    DIN rail
  • Selective protection
    Yes
  • Short-circuit breaking capacity (Icw)
    10 kA
  • Voltage type
    AC
  • Frequency
    60 Hz
  • Degree of protection (IP)
    IP20
  • Built-in depth
    60 mm
  • Pollution degree
    2
  • Connectable conductor cross section solid-core
    1.5 ... 35 mm²
  • Rated voltage
    415 V
  • Rated fault current
    1 A
  • Rated impulse withstand voltage Uimp
    4 kV
  • Leakage current type
    AC
  • Short-time delayed tripping
    Yes
  • Surge current capacity
    0.25 kA
  • With interlocking device
    Yes
  • Additional equipment possible
    Yes
  • Width in number of modular spacings
    4
  • Ambient temperature during operating
    -25 ... 60 °C
  • Connectable conductor cross section multi-wired
    1.5 ... 16 mm²
  • Explosion-proof
    No

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 30 pcs.
Weight (kg) 0,358 10,939
Volume (m3) 0,000 0,016
Width (m) 0,073 0,180
Length (m) 0,086 0,385
Depth (m) 0,075 0,230
