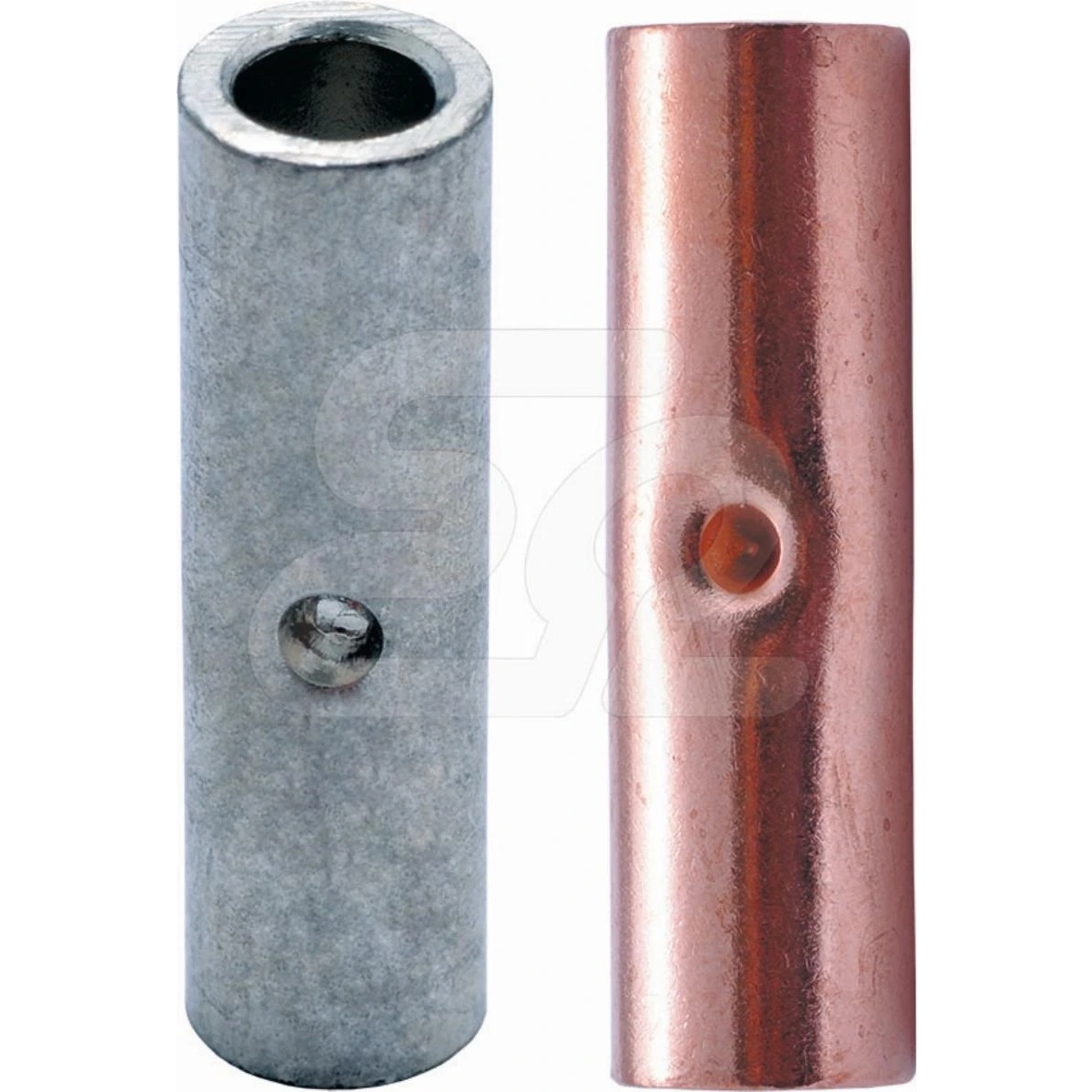

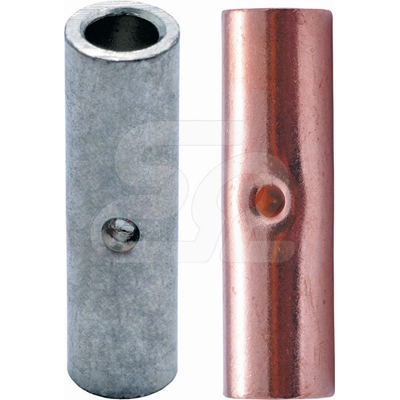

ZM 240 “butt joint” cable connector E11KM-01060301100

local index:
TCC359ERGO
Catalog No:
E11KM-01060301100
Manufacturer: ERGOM
Material: Copper
Type: Connector
Stranded conductor cross-section [mm²]: 240
Price:
7,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 402 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Copper connector in the standard version without tin coating for connecting wires on the so-called "contact" mechanically unloadable. The embossing in the middle guarantees insertion of the cable core to the required length.

Technical data

  • Material
    Copper
  • Stranded conductor cross-section [mm²]
    240
  • PKWIU
    27.33.13.0
  • Type
    Connector
  • Coverage
    Tin plated

Other technical data

  • Nominal cross section
    0 ... 240 mm²
  • Sleeve form
    Long
  • Surface protection
    Bare
  • Type of connection
    Percussion connector
  • Model
    Standard version
  • Material
    Copper
  • Insulation
    None

Bulk packaging

A kind of package Sztuka
Quantity 50 pcs.
Weight (kg) 0,140
Width (m) 0,040
Length (m) 0,030
Depth (m) 0,030
