Tubular ring cable terminal KOR 95/10 10 pcs E11KM-01020106002
local index:
TCC304ERGO
Catalog No:
E11KM-01020106002
Price:
29,62 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

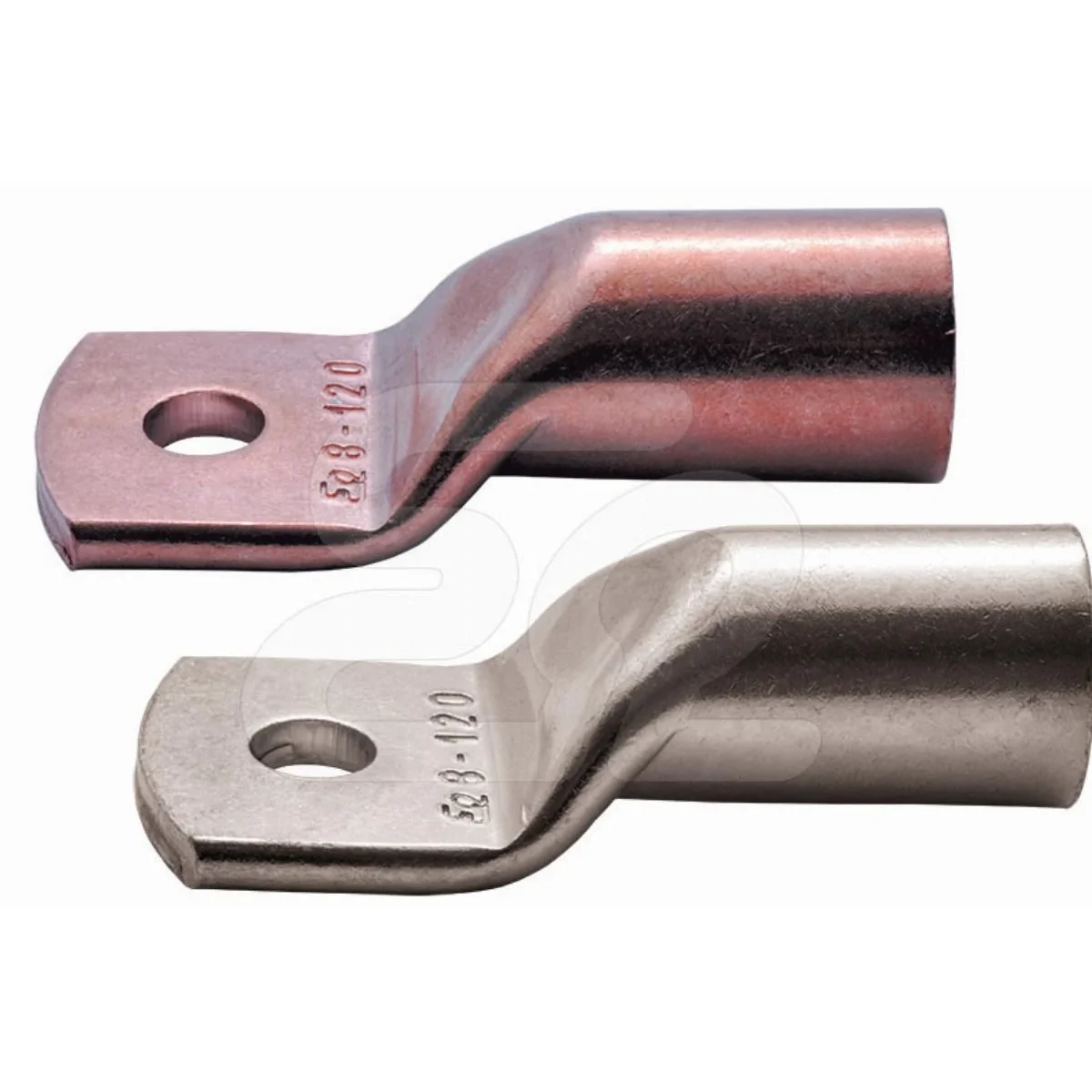

KOR 95/10 tubular ring cable terminal from the manufacturer ERGOM. The product catalog number is E11KM-01020106002.
- Cross section rm/sm [mm²]: 95.
- Number of crimps - wide: 1. < li>Number of crimps - narrow: 2.
- Socket number: 17.
- Attention! Sector wires (sm) must be reformed “round”.
- Cu ring terminal in the standard version with galvanic tin coating.
- Description of the wire cross-section and the size of the clamp on the surface of the fin.
- Popular version for responsible applications.
Technical data
-
Length to center of hole [mm]47
-
MaterialCopper
-
Flange width [mm]26
-
Outer diameter [mm]18
-
Screw holeM10
-
PKWIU27.33.13.0
-
Sleeve length [mm]24
-
TypeOczkowa
-
Inner diameter [mm]13.5
-
cross section [mm²]95
-
CoverageTin plated
Other technical data
-
Bolt dimension (metric)10
-
Slender flange modelYes
-
With sight-holeNo
-
Surface protectionTinned
-
Flange shapeRing shape
-
InsulatedNo
-
MaterialCopper
-
Nominal cross section95 mm²
Manufacturer details
-
ManufacturerERGOM Zakład Aparatury Elektrycznej Sp. z o.o.
-
Address94-102 Łódź Nowe Sady 10
-
Phone number
-
E-mail
-
Tax identification number7260129071
-
GLN5900009930221
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pkg. |
| Weight (kg) | 0,050 |
| Width (m) | 4,900 |
| Length (m) | 4,900 |
| Depth (m) | 4,900 |
